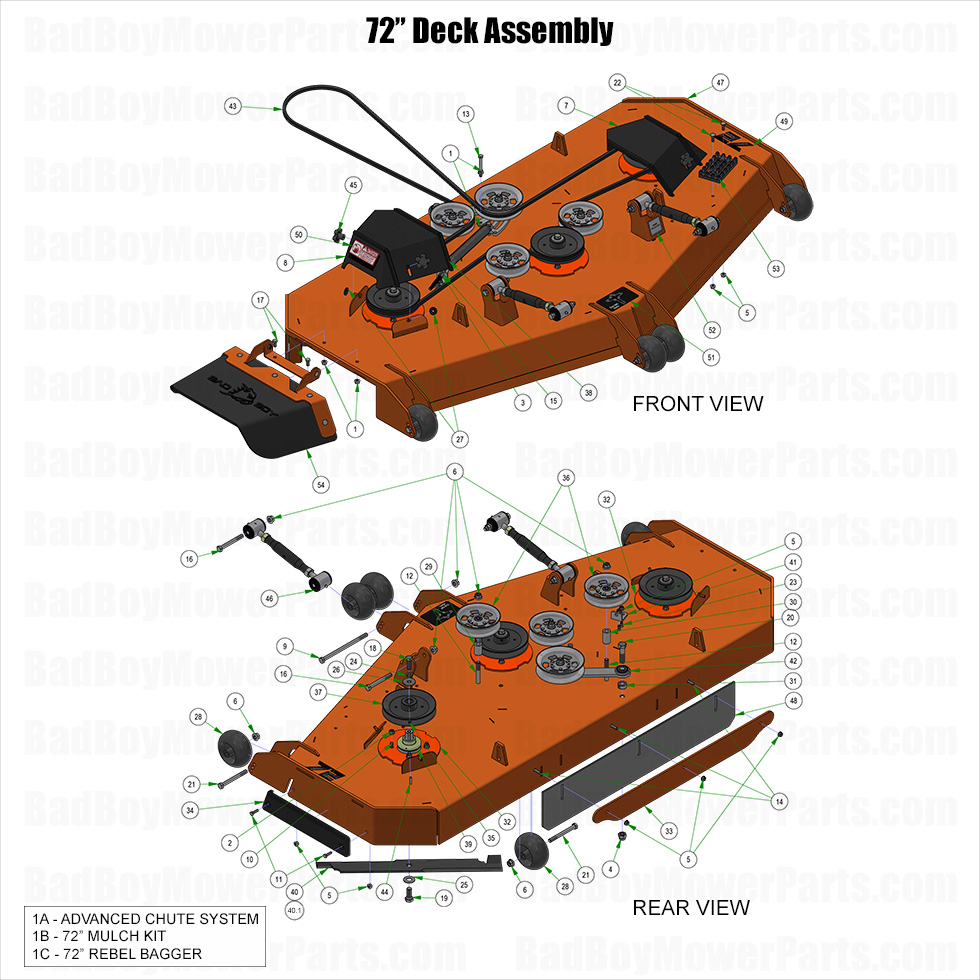

2025 Rebel & Rebel X - 72" Deck Assembly

2025 Rebel & Rebel X - 72" Deck Assembly

For maximum cutting efficiency, the 2025 Rebel & Rebel X 72" Deck Assembly is the ideal choice. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to keep your deck operating at peak performance. Our Bad Boy Lawn Mower Parts selection includes heavy-duty blades, durable spindles, reinforced belts, and precision pulleys. With our Bad Boy Mower Part diagrams, you can quickly locate and order the exact parts needed for repairs. A properly maintained deck enhances mowing efficiency, reduces wear on other components, and delivers superior cutting performance. We stock Bad Boy Parts Online, ensuring fast shipping and immediate availability. Plus, with Free Shipping On Orders Over $100, maintaining your mower deck is more cost-effective than ever. Keep your 2025 Rebel & Rebel X 72" Deck Assembly in excellent condition—order replacement parts today and achieve the best mowing results.

Bad Boy Mower Parts Lookup

2025 Rebel & Rebel X - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
1C 092-4011-23 092-4011-23 Top Discharge Bagger (2019-2025 72" Rogue)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
8 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
16 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
17 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
32 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
33 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
34 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
38 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
39 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
40.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
40 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
41 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
42 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
43 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
46 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
47 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
48 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
50 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
51 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
52 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
53 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
54 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
