2025 Rebel & Rebel X - Brake & Fuel Tanks

2025 Rebel & Rebel X - Brake & Fuel Tanks

The 2025 Rebel & Rebel X Brake & Fuel Tanks system plays a crucial role in safety and fuel efficiency. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to ensure your mower’s braking system and fuel storage remain in top condition. Our Bad Boy Lawn Mower Parts selection includes brake calipers, pads, fuel caps, and fuel lines for reliable operation. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct parts for repairs. A properly functioning brake system ensures safe operation, while a well-maintained fuel tank prevents leaks and inefficiencies. We stock Bad Boy Parts Online for fast shipping and quick replacements. Plus, with Free Shipping On Orders Over $100, maintaining your braking and fuel system is both easy and cost-effective. Don’t compromise on safety or efficiency—order 2025 Rebel & Rebel X Brake & Fuel Tanks parts today and keep your mower performing at its best.

Bad Boy Mower Parts Lookup

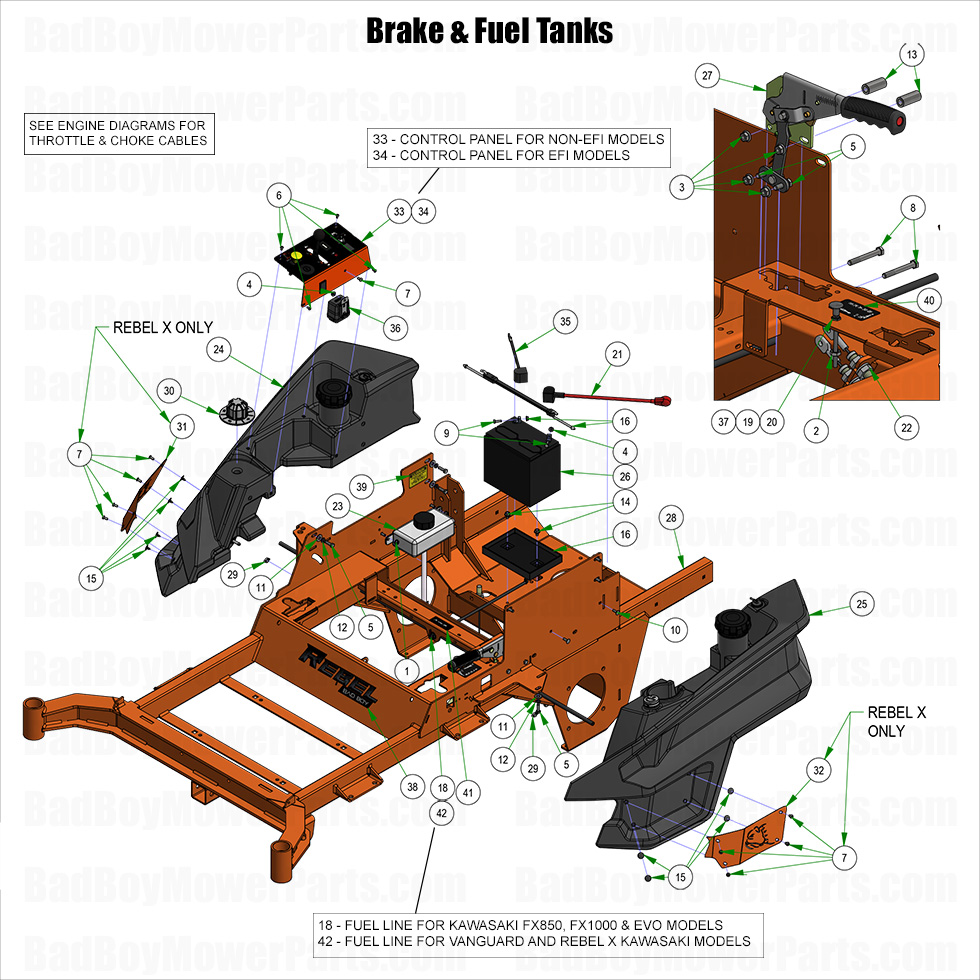

2025 Rebel & Rebel X - Brake & Fuel Tanks
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
6 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
7 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
14 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
15 040-6081-00 040-6081-00 - 3/16 x.48 Christmas Tree Nylon Black
$2.99
16 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
21 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
22 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
23 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
24 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
25 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
27 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
28 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
29 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
30 077-9002-00 077-9002-00 - Deck Dial 1.5 to 5.5 2019-2022 Rebel
$31.17
31 079-3290-00 079-3290-00 - Right Fuel Tank Insert 2019-& Up Rebel, Renegade, & Rogue
$8.79
32 079-3291-00 079-3291-00 - Renegade/Rogue/Rebel Left Fuel Tank Insert
$8.79
33 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
34 079-3581-23 079-3581-23 - 2023 Rebel/Rogue FX1000EFI,EVO CONTROL P
$199.99
35 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
36 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
37 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
38 091-0514-00 091-0514-00 - MY24 Rebel Back Plate & Front Decal
$10.99
39 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
40 091-1101-18 091-1101-18 - Brake Decal (See Models Used On for Details)
$6.04
41 091-6022-00 091-6022-00 R-Series Shut Off Valve Decal
$2.99
