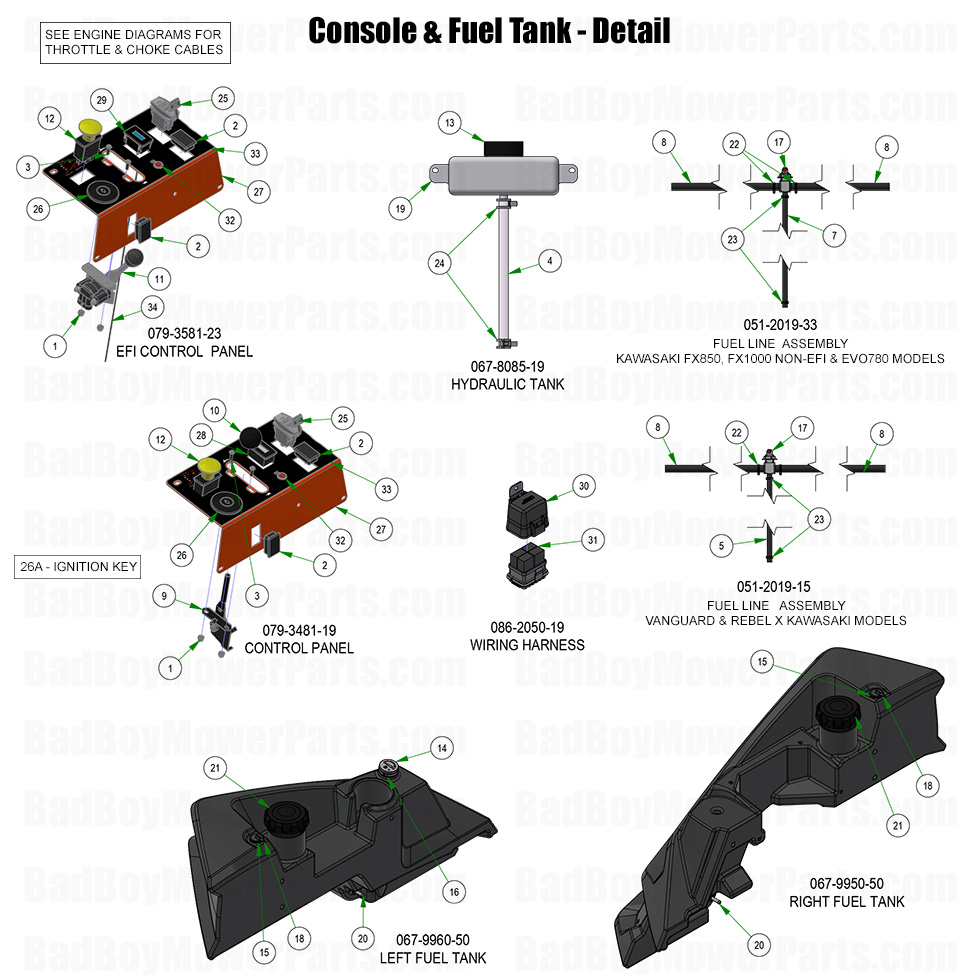

2025 Rebel & Rebel X - Console & Fuel Tank - Detail

2025 Rebel & Rebel X - Console & Fuel Tank - Detail

The 2025 Rebel & Rebel X Console & Fuel Tank - Detail system ensures that your mower operates smoothly with optimal fuel management and control accessibility. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to keep your console switches, gauges, and fuel tank components working efficiently. Our Bad Boy Lawn Mower Parts inventory includes fuel hoses, fuel caps, console panels, and indicator lights to maintain peak performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct parts for quick repairs and maintenance. A secure fuel system and functional control console improve mower performance, safety, and ease of operation. We stock Bad Boy Parts Online to ensure fast ordering and minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining these essential components is more affordable than ever. Order 2025 Rebel & Rebel X Console & Fuel Tank - Detail parts today for smooth, efficient mowing.

Bad Boy Mower Parts Lookup

2025 Rebel & Rebel X - Console & Fuel Tank - Detail
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
2 018-1040-00 018-1040-00 - Light Plug
$2.99
3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
4 051-0019-00 051-0019-00 - 7.5" Hydro Tank Hose 2019-2022 Rebel
$11.34
5 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
7 051-8067-32 051-8067-32 - 32" 1/4" Fuel Line No Clamps
$16.04
8 051-8075-26 051-8075-26 - 26" 5/16 Fuel Line No Clamps
$18.72
9 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
10 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
12 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
13 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
14 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
15 067-6054-00 067-6054-00 - Fuel Gauge Grommet
$8.01
16 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
17 067-6058-00 067-6058-00 - 3 Way Fuel Shut-Off Valve 5/16 x 5/16 x
$21.39
18 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
19.1 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
19 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
20.1 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
20.2 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
20 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
21 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
22 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
23 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
25 077-2076-00 077-2076-00 - USB Port
$46.84
26A 042-9000-00 042-9000-00 - Ignition Key
$4.06
26 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
27.1 079-3581-23 079-3581-23 - 2023 Rebel/Rogue FX1000EFI,EVO CONTROL P
$199.99
27.2 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
28 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
29 083-4015-00 083-4015-00 Tach For FX1000 EFI & EVO 781 & 820
$64.19
30.1 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
30 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
31 086-1202-19 086-1202-19 - Relay Terminal
$24.97
32 089-1000-00 089-1000-00 - Oil Light
$12.63
33 091-4009-22 091-4009-22 2022-2024 Rebel/Rogue Control Panel Decal
$10.99
34 216-1002-00 216-1002-00 - 16 Gauge 56" Ground Wire Assembly No Longer Available
Obsolete.
