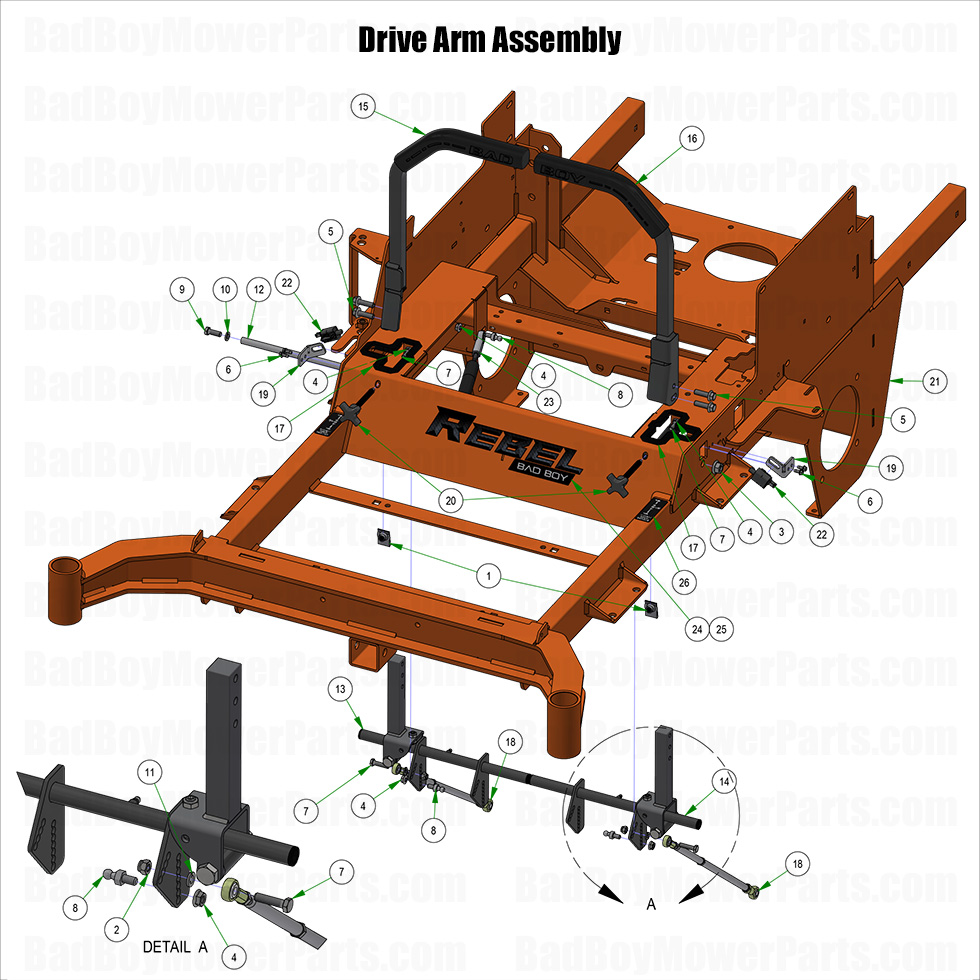

2025 Rebel & Rebel X - Drive Arm Assembly

2025 Rebel & Rebel X - Drive Arm Assembly

The 2025 Rebel & Rebel X Drive Arm Assembly is a crucial component of your mower’s steering system, ensuring seamless handling and control. At BadBoyMowerParts.com, we supply durable Bad Boy Mower Parts designed to keep your drive arm assembly in peak condition. Our Bad Boy Lawn Mower Parts selection includes replacement arms, bolts, linkages, and bushings to ensure precise operation. Using our Bad Boy Mower Part diagrams, you can easily identify and order the correct drive arm components for quick and hassle-free repairs. A worn drive arm assembly can cause steering inefficiencies, making mowing more difficult and less effective. We stock Bad Boy Parts Online to provide fast access to essential replacements, reducing downtime. Plus, take advantage of Free Shipping On Orders Over $100, making repairs both convenient and cost-effective. Keep your 2025 Rebel & Rebel X Drive Arm Assembly in top condition—order today for smoother operation.

Bad Boy Mower Parts Lookup

2025 Rebel & Rebel X - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
8 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
13 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
14 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29
15 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99
16 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
17 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55

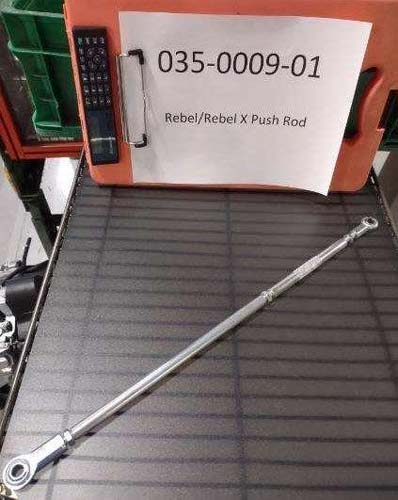

18 035-0009-01 035-0009-01 - Rebel Push Rod Assy
$32.09
20 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
21 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
22 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
23 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
24 091-0514-00 091-0514-00 - MY24 Rebel Back Plate & Front Decal
$10.99
25 091-0515-00 091-0515-00 - MY24 Rebel X Back Plate & Front Decal
$10.99
26 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
