2025 Rebel & Rebel X - Engine - Kawasaki FX1000

2025 Rebel & Rebel X - Engine - Kawasaki FX1000

The 2025 Rebel & Rebel X Engine - Kawasaki FX1000 is built for power and durability, making maintenance crucial for optimal performance. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including air filters, carburetors, fuel pumps, and ignition components for your FX1000 engine. Our Bad Boy Lawn Mower Parts selection ensures that you have access to top-quality replacement parts. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary components for your engine. Keeping your engine well-maintained prevents costly repairs, improves fuel efficiency, and extends operational life. We provide Bad Boy Parts Online for fast and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your engine is more budget-friendly than ever. Keep your 2025 Rebel & Rebel X Engine - Kawasaki FX1000 performing at its best—order replacement parts today for a powerful and efficient mowing experience.

Bad Boy Mower Parts Lookup

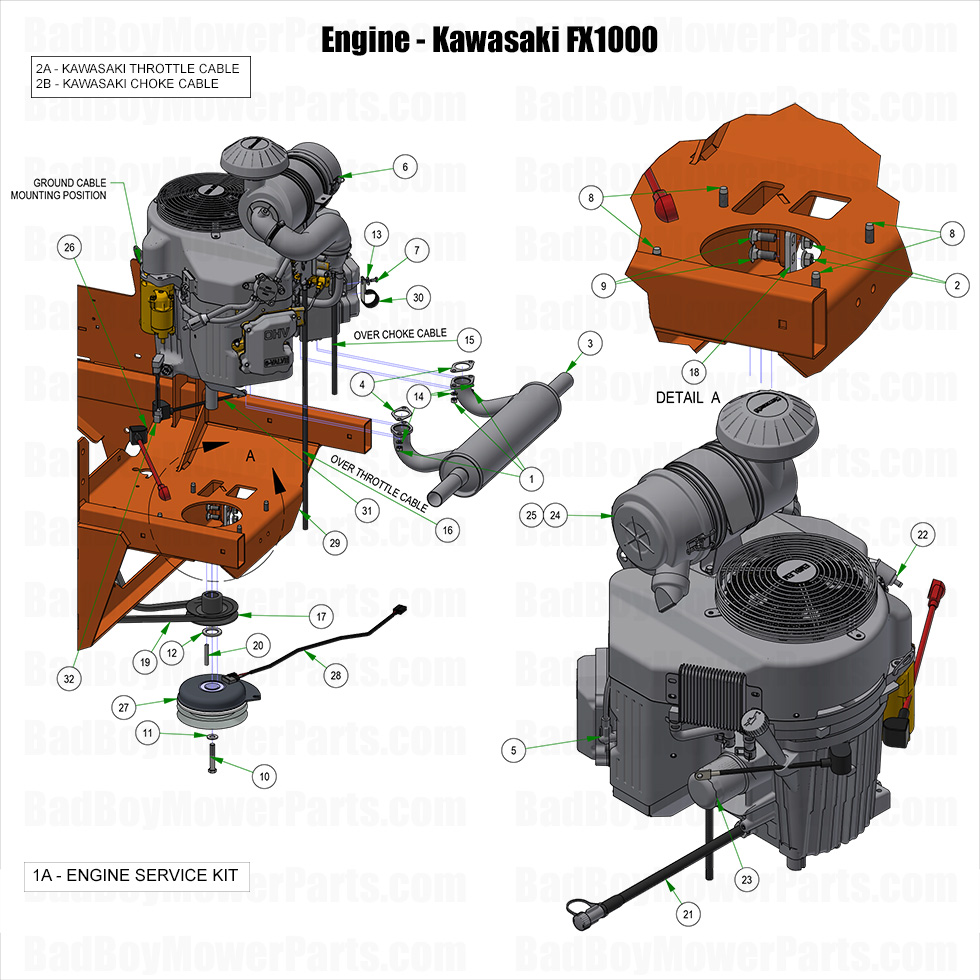

2025 Rebel & Rebel X - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
4 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
5 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
6 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
7 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
10 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 032-6000-00 032-6000-00 - Cut 12" Heat Sleeve
$2.99

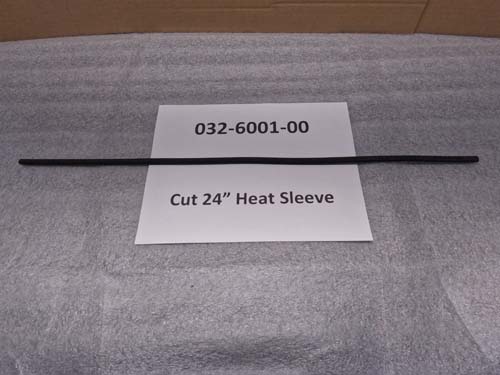

16 032-6001-00 032-6001-00 - Cut 24" Heat Sleeve
$3.84
17 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
19 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
20 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
21 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
22 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
23 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
24 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
25 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
26 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
27 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
28 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
29 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
30 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
31 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
32 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
