2025 Rebel & Rebel X - Engine - Kawasaki EVO EFI

2025 Rebel & Rebel X - Engine - Kawasaki EVO EFI

The 2025 Rebel & Rebel X Engine - Kawasaki EVO EFI delivers superior power and fuel efficiency, but regular maintenance with Bad Boy Mower Parts ensures long-term reliability. At BadBoyMowerParts.com, we stock high-performance Bad Boy Lawn Mower Parts, including fuel injectors, air filters, spark plugs, and oil filters to keep your engine running smoothly. Our Bad Boy Mower Part diagrams help you quickly locate and order the right components for fast and precise repairs. Routine maintenance improves fuel efficiency, reduces emissions, and extends engine life. We stock Bad Boy Parts Online for quick and convenient ordering, ensuring minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining your EFI engine is more affordable than ever. Don’t let performance issues slow you down—order 2025 Rebel & Rebel X Engine - Kawasaki EVO EFI parts today to keep your mower running at peak efficiency.

Bad Boy Mower Parts Lookup

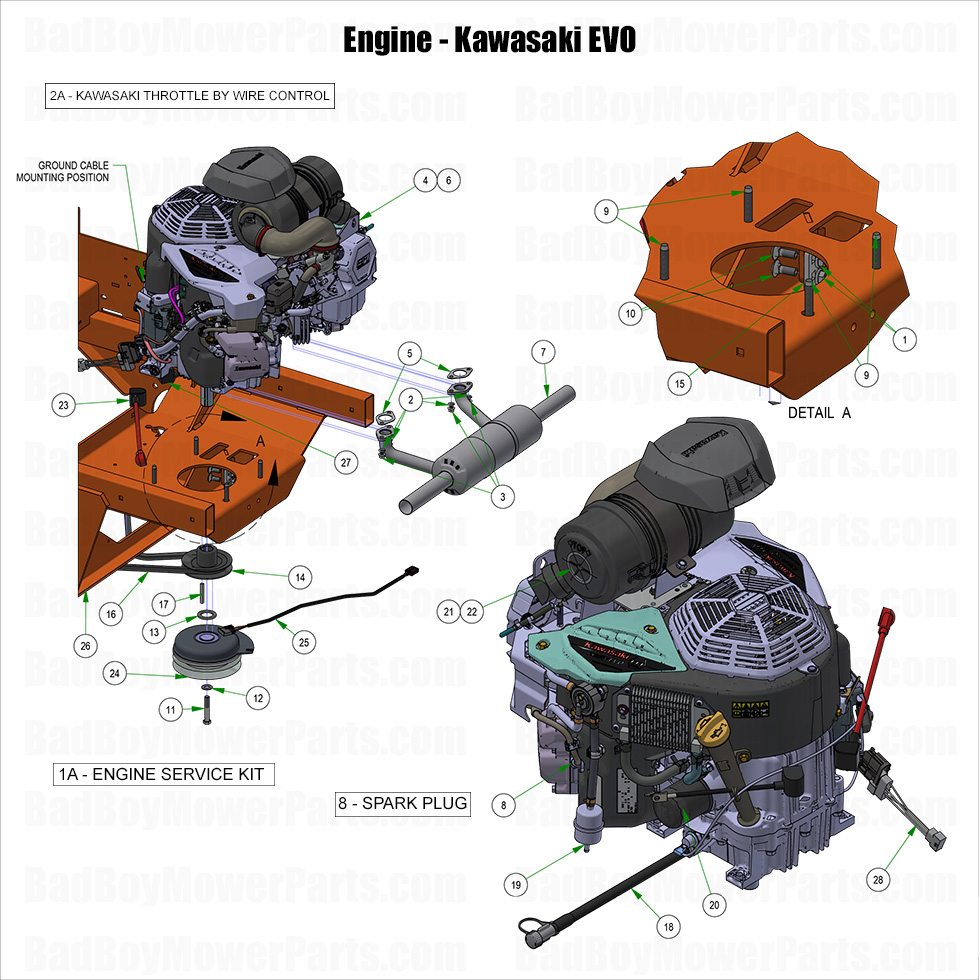

2025 Rebel & Rebel X - Engine - Kawasaki EVO EFI
  Position Number SKU Product Title Price
1A 063-2000-21 063-2000-21 - Kawasaki FX781 & FX820 Engine Service Kit
$135.99
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2A 055-3001-00 055-3001-00 - Drive by Wire Throttle (See Models Used On For Detail)
$111.99
2 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
4 015-0781-00 015-0781-00 - FX781V-EVO
$6399.99

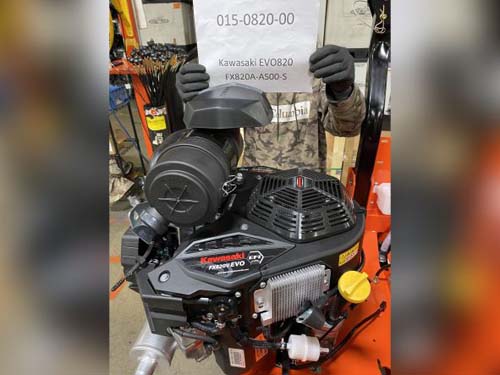

6 015-0820-00 015-0820-00 - FX820V-EVO
$6299.99

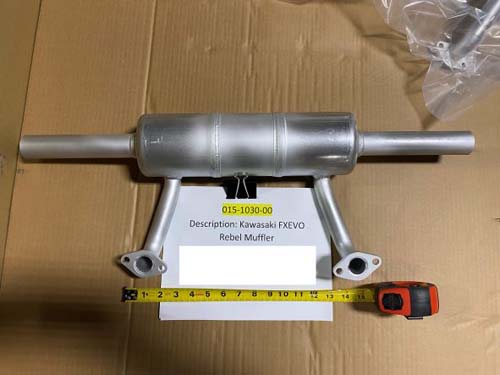

7 015-1030-00 015-1030-00 - Kawasaki FXEVO Rebel Muffler
$104.99
8 015-8001-02 015-8001-02 - Spark Plug for Kawasaki EVO (See Models Used On For Detail)
$7.69
9 018-0061-00 018-0061-00 - 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
$5.93
10 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
11 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
12 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
13 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
14 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
16 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
17 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
18 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
21 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
22 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
23 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
24 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
25 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
26 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
27 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
28 086-9016-00 086-9016-00 - Harness Adapter For Kawasaki EFI
$109.99
