2025 Rebel & Rebel X - Spindle, Idler & Discharge Chute

2025 Rebel & Rebel X - Spindle, Idler & Discharge Chute

The 2025 Rebel & Rebel X Spindle, Idler & Discharge Chute system plays a critical role in cutting efficiency and grass dispersal. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts to keep your cutting system operating at peak performance. Our Bad Boy Lawn Mower Parts selection includes spindles, bearings, idler pulleys, and discharge chutes to ensure smooth mowing. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct components for fast repairs. A failing spindle or worn discharge chute can lead to uneven cuts and clogged clippings, making replacements essential. We stock Bad Boy Parts Online for easy ordering and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s cutting system is both convenient and cost-effective. Keep your 2025 Rebel & Rebel X Spindle, Idler & Discharge Chute in top condition—order today for flawless mowing results.

Bad Boy Mower Parts Lookup

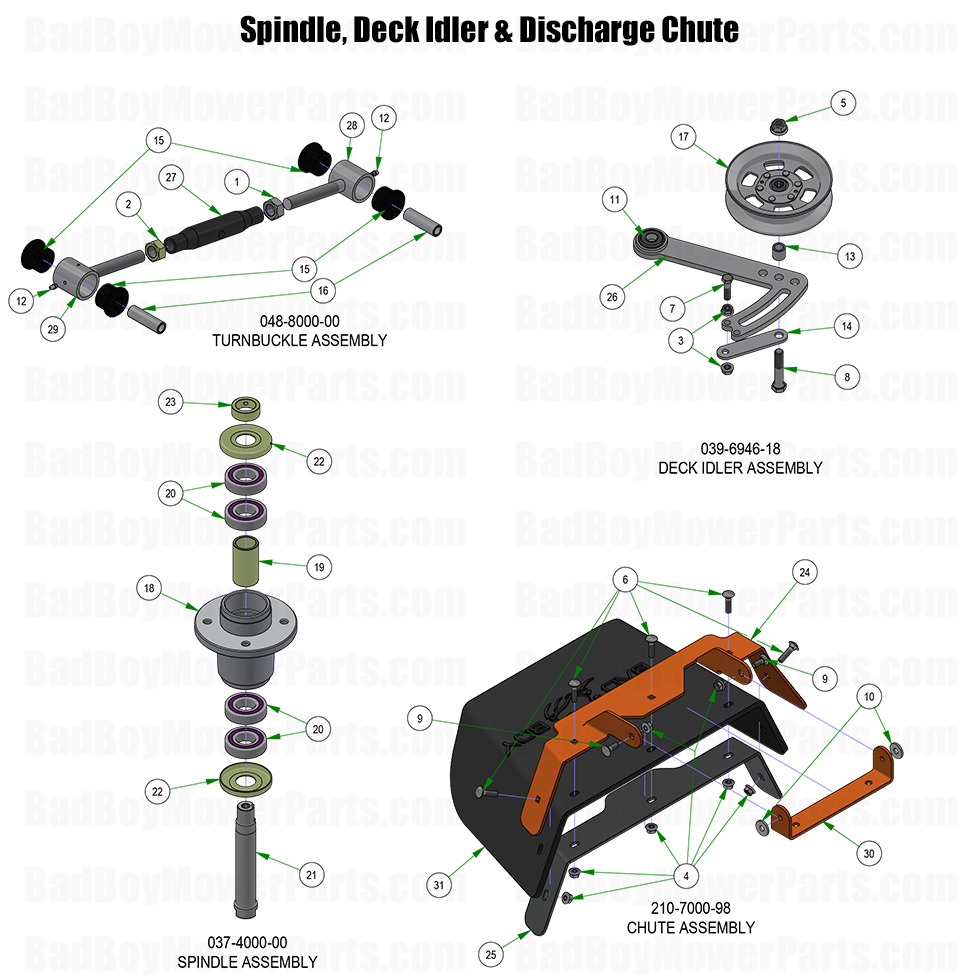

2025 Rebel & Rebel X - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.
2 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11A 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
11 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
12 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
13 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
14 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
15 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
16 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
17 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
18A 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
19 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
20 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
21 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
22 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
23 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
24 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
25 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
26 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48

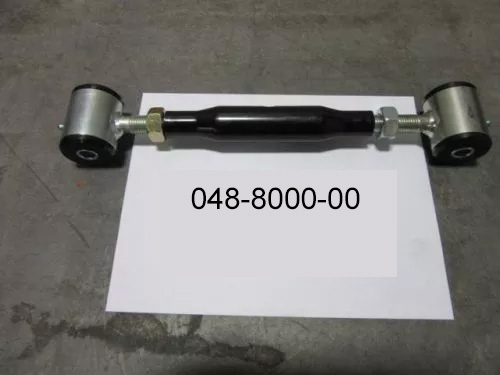

27A 048-8000-00 048-8000-00 Turnbuckle Assembly
$80.24
27 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24
28 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
29 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
30 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
31A 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
31 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
