2025 Renegade - Diesel - 61" Deck Assembly

2025 Renegade - Diesel - 61" Deck Assembly

The 2025 Renegade - Diesel 61" Deck Assembly is built for heavy-duty cutting power, and proper maintenance ensures consistent performance. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including spindles, pulleys, blades, and deck belts for reliable operation. Our Bad Boy Lawn Mower Parts inventory provides everything you need to keep your cutting deck functioning at peak efficiency. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct replacement parts for hassle-free repairs. A well-maintained deck enhances mowing precision and reduces strain on other mower components. We stock Bad Boy Parts Online for immediate availability, minimizing downtime and keeping your mower running smoothly. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Renegade - Diesel 61" Deck Assembly is easier and more affordable than ever. Order today and ensure flawless cutting performance.

Bad Boy Mower Parts Lookup

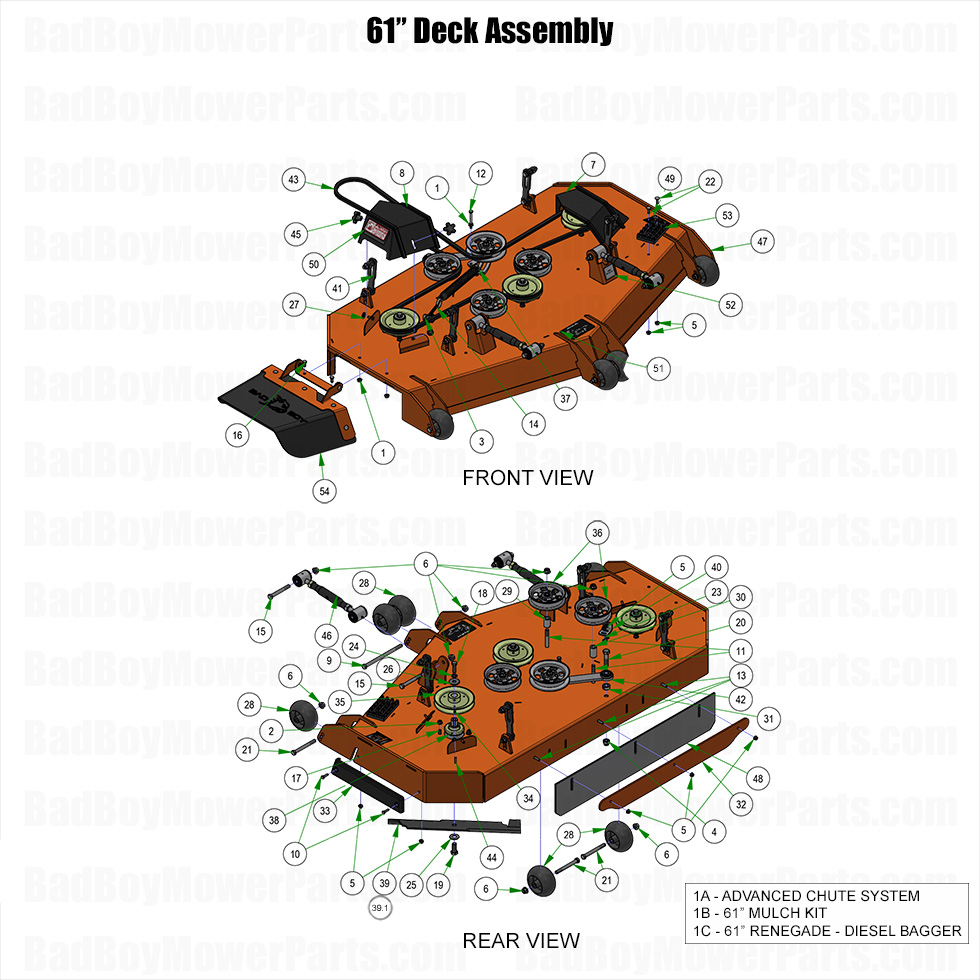

2025 Renegade - Diesel - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1C 092-4008-23 092-4008-23 Top Discharge Bagger (2019-2025 61" Renegade)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
8 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
32 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
33 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
38 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
39.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
39 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
40 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
41 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
42 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
43 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
46 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
47 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
48 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
49 091-0506-00 091-0506-00 - MY24 61" Deck Decal
$9.89
50 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
51 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
52 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
53 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
54 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
