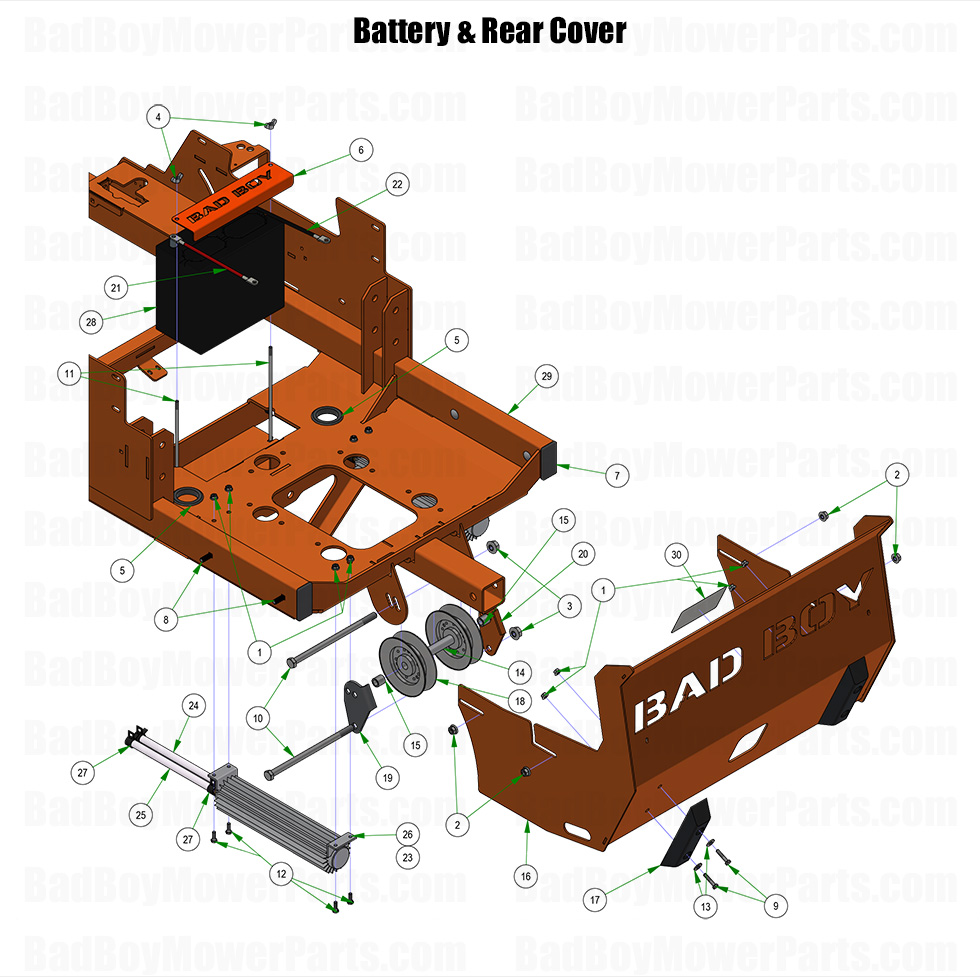

2025 Renegade - Diesel - Battery & Rear Cover

2025 Renegade - Diesel - Battery & Rear Cover

The 2025 Renegade - Diesel Battery & Rear Cover system plays a vital role in electrical function and mower protection. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to keep your battery secure and properly functioning. Our Bad Boy Lawn Mower Parts selection includes battery terminals, wiring harnesses, rear covers, and mounting brackets to ensure durability and safety. Using our Bad Boy Mower Part diagrams, you can easily locate and order the necessary parts for seamless installation. A secure battery connection ensures consistent starts and optimal electrical performance. We stock Bad Boy Parts Online for quick replacements, ensuring minimal downtime. Plus, enjoy Free Shipping On Orders Over $100, making electrical and rear cover maintenance cost-effective. Keep your 2025 Renegade - Diesel Battery & Rear Cover in top shape—order today for reliable power and added protection.

Bad Boy Mower Parts Lookup

2025 Renegade - Diesel - Battery & Rear Cover
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
5 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
6 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
7 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
8 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
9 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
11 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
17 029-7038-00 029-7038-00 - 8 Bumper
$28.32
18 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
19 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99
20 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
21 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
22 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
23 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
24 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
25 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
26 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
27 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
30 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
