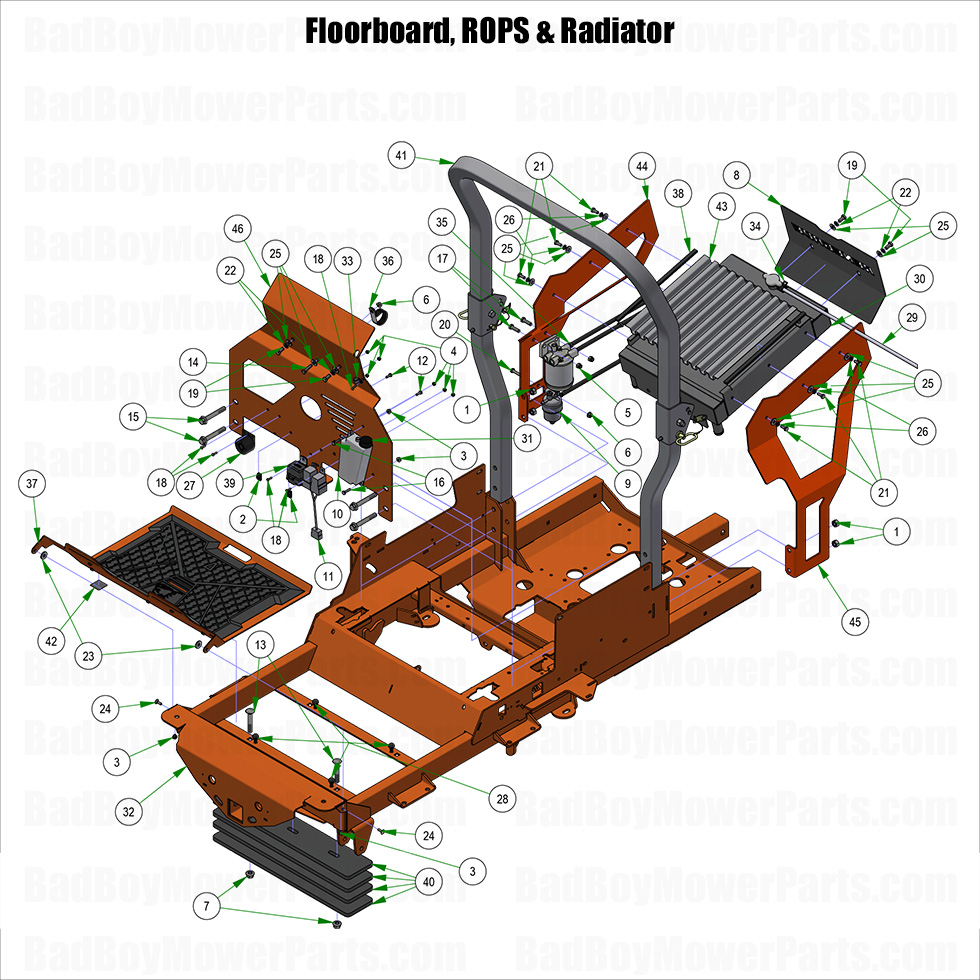

2025 Renegade - Diesel - Floorboard, ROPS & Radiator

2025 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2025 Renegade - Diesel Floorboard, ROPS & Radiator system ensures stability, safety, and optimal cooling performance for your mower. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to maintain these critical components. Our Bad Boy Lawn Mower Parts inventory includes reinforced floorboards, Roll Over Protection System (ROPS) bars, radiator hoses, and mounting hardware. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the exact parts needed for seamless repairs. A sturdy floorboard enhances operator comfort, while a functional radiator prevents engine overheating. We stock Bad Boy Parts Online for fast replacements, minimizing downtime and ensuring continued mowing efficiency. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Renegade - Diesel Floorboard, ROPS & Radiator system is cost-effective. Order today to ensure safety, stability, and peak performance for your diesel mower.

Bad Boy Mower Parts Lookup

2025 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
3 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
5 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 015-0097-00 015-0097-00 - 24.7HP Perkins Engine, 403J-11 No Longer Available
Obsolete.
10 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
11 015-0129-00 015-0129-00 - Diesel Relay Auto Shut Down Assembly
$299.99
12 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
13 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
14 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
15 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
16 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
17 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
18 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
24 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
27 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
28 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
30 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.
31 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
33 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
34 072-8067-00 072-8067-00 - 5/8 Hose Clamp SS
$2.99
35 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
36 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
38 084-4015-00 084-4015-00 - Rubber Trim
$10.99
39 086-0247-20 086-0247-20 - Wiring Harness (See Models Used On For Detail)
$509.41
40 088-1999-00 088-1999-00 - Outlaw Counter Weight (See Models Used On For Details)
$74.99
41 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
42 091-0020-22 091-0020-22 - Anti-Wobble Patent Decal
$2.99
43 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
44 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
45 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
