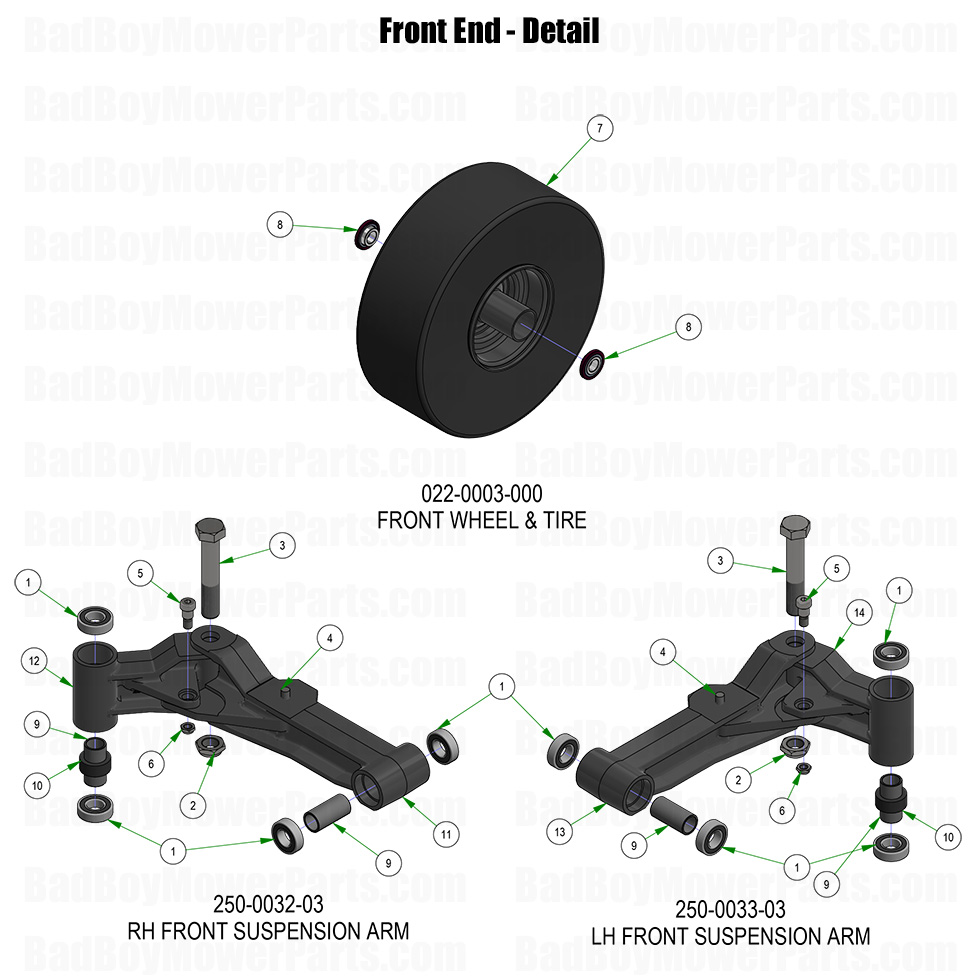

2025 Renegade - Diesel - Front End - Details

2025 Renegade - Diesel - Front End - Details

The 2025 Renegade - Diesel Front End - Details system consists of multiple components that contribute to precise steering and stability. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts to ensure smooth operation and durability. Our Bad Boy Lawn Mower Parts inventory includes steering rods, caster wheels, pivot bushings, and mounting brackets for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct parts for hassle-free replacements. A well-maintained front end ensures accurate turns, improved traction, and reduced strain on other mower parts. We keep Bad Boy Parts Online stocked for quick shipping and easy ordering. Plus, enjoy Free Shipping On Orders Over $100, making front-end repairs cost-effective. Don’t let a worn-out front end affect your mower’s performance—order 2025 Renegade - Diesel Front End - Details replacement parts today for superior handling and control.

Bad Boy Mower Parts Lookup

2025 Renegade - Diesel - Front End - Details
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
3 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
4 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
5 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
7A 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
7 022-0004-00 022-0004-00 - 15x6-6 Tire Only
$85.59
8 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
11 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
12A 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
12 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
13 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
14A 250-0033-03 250-0033-03 - 2022 61/72 Rogue/Renegade Front Suspensi
$279.99
14 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
