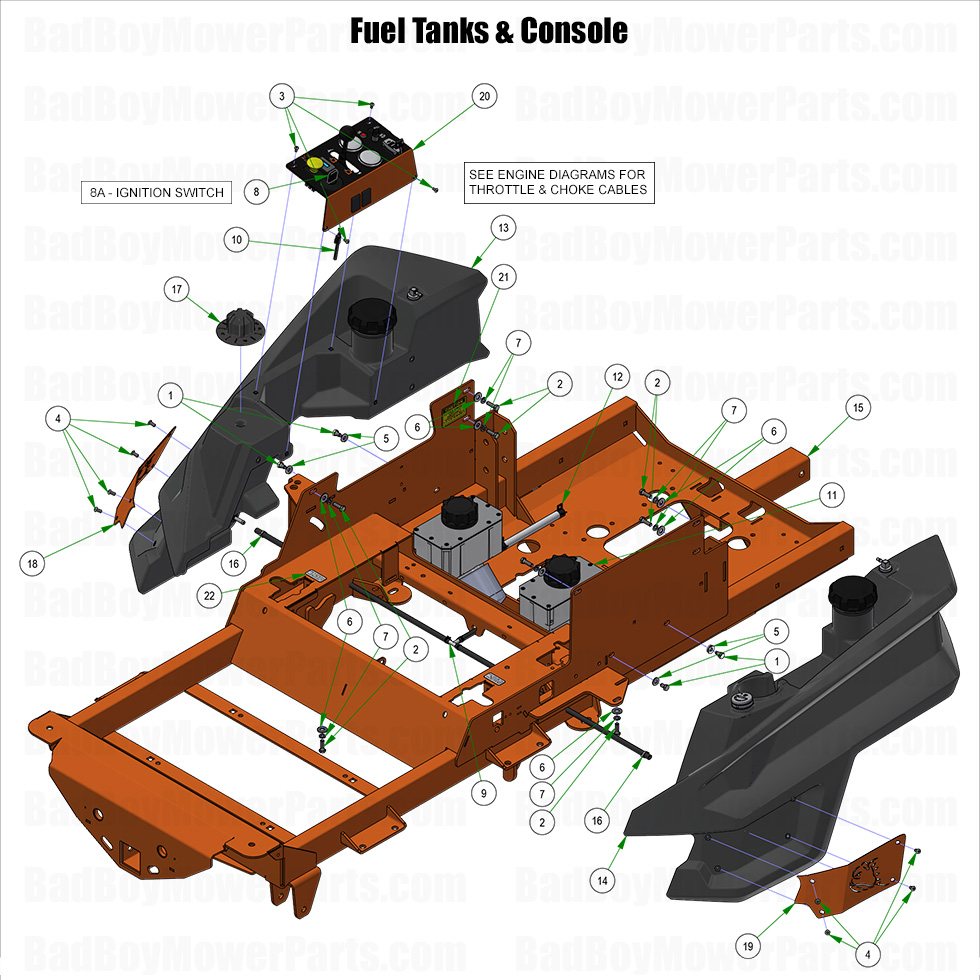

2025 Renegade - Diesel - Fuel Tanks & Console

2025 Renegade - Diesel - Fuel Tanks & Console

The 2025 Renegade - Diesel Fuel Tanks & Console system ensures proper fuel storage and easy access to mower controls. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to keep your fuel system and console in top shape. Our Bad Boy Lawn Mower Parts inventory includes fuel tanks, caps, fuel level indicators, control panels, and mounting hardware. With our Bad Boy Mower Part diagrams, you can quickly identify and order the correct parts for seamless installation. A well-maintained fuel tank prevents leaks, while an intact console ensures smooth control over mower functions. We stock Bad Boy Parts Online for fast replacements, ensuring minimal downtime. Plus, take advantage of Free Shipping On Orders Over $100, making maintenance cost-effective. Keep your 2025 Renegade - Diesel Fuel Tanks & Console in top condition—order today for reliable fuel storage and effortless mower operation.

Bad Boy Mower Parts Lookup

2025 Renegade - Diesel - Fuel Tanks & Console
  Position Number SKU Product Title Price
1 018-0057-00 018-0057-00 - 5/16-18 x 1/2 Hex Bolt-
$2.99
2 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
3 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
4 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
5 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
6 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8A 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
8 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96
12 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
13 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99
14 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
16 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
17 077-9001-00 077-9001-00 - Deck Height Dial Knob 2 to 6 2019-2022 Renegade & Rogue
$21.39
18 079-3290-00 079-3290-00 - Right Fuel Tank Insert 2019-& Up Rebel, Renegade, & Rogue
$8.79
19 079-3291-00 079-3291-00 - Renegade/Rogue/Rebel Left Fuel Tank Insert
$8.79
21 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
22 091-2050-00 091-2050-00 - Low Sulfur Decal Tier 4 Diesel
$6.59
