2025 Renegade - Diesel - Pump Idlers

2025 Renegade - Diesel - Pump Idlers

The 2025 Renegade - Diesel Pump Idlers play a vital role in maintaining belt tension and drive system efficiency. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to keep your mower’s pump idlers in perfect working order. Our Bad Boy Lawn Mower Parts selection includes idler pulleys, tensioners, and brackets designed for long-term durability and performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct pump idler components for easy repairs. A worn or misaligned idler can cause excessive belt wear and reduce overall drive efficiency. We stock Bad Boy Parts Online for fast shipping and immediate replacements. Plus, with Free Shipping On Orders Over $100, keeping your mower’s drive system in optimal condition is affordable and convenient. Ensure smooth operation—order 2025 Renegade - Diesel Pump Idlers parts today for reliable power transfer and performance.

Bad Boy Mower Parts Lookup

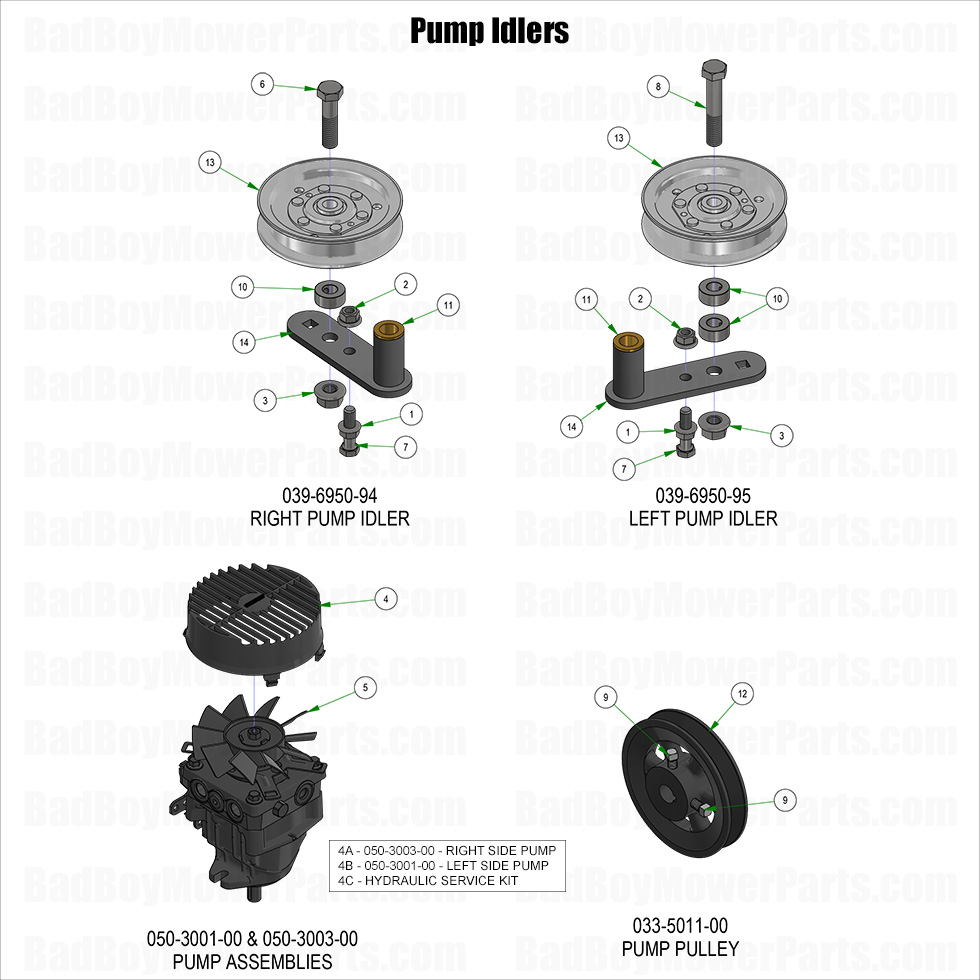

2025 Renegade - Diesel - Pump Idlers
  Position Number SKU Product Title Price
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4A 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
4B 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
4C 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
4 014-5600-00 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps
$39.81
5 015-9999-00 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps
$28.88
6 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
9 018-8072-00 018-8072-00 - 5/16-18 X 1 Set Screw (Square-Head w/Cup-Point)
$2.99
10 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
11 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
12 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14.1 039-6950-94 039-6950-94 - 2020 and newer Diesel Pump Tensioner Assembly LH
$85.17
14.2 039-6950-95 039-6950-95 - 2020 and newer Diesel Pump Tensioner Assembly RH
$85.17
14 039-6950-00 039-6950-00 - Gas Idler Plate Weldment Renegade
$29.80
