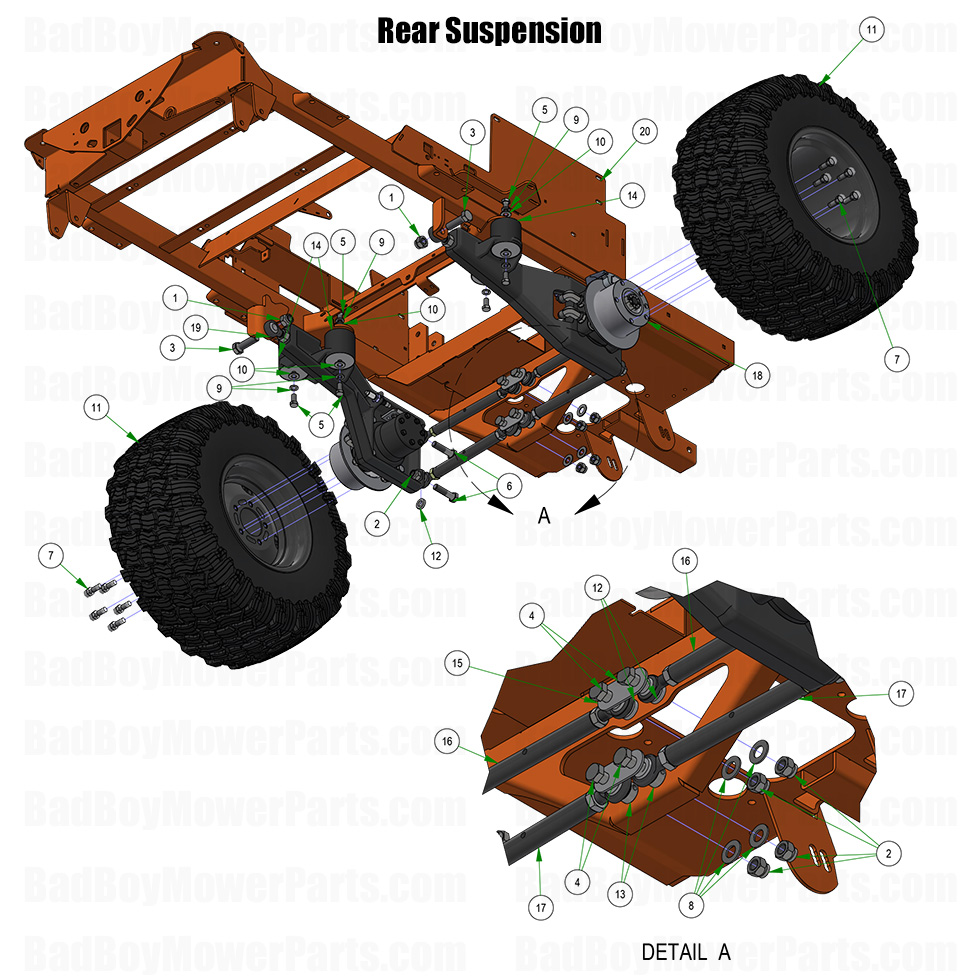

2025 Renegade - Diesel - Rear Suspension

2025 Renegade - Diesel - Rear Suspension

The 2025 Renegade - Diesel Rear Suspension system is essential for stability, smooth handling, and operator comfort. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to maintain your mower’s rear suspension. Our Bad Boy Lawn Mower Parts inventory includes shock absorbers, springs, bushings, and mounting brackets to keep your suspension system in peak condition. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct parts for seamless installation. A properly functioning rear suspension reduces vibrations, enhances traction, and prevents unnecessary stress on other components. We stock Bad Boy Parts Online for fast shipping and quick replacements. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s suspension system is cost-effective. Keep your 2025 Renegade - Diesel Rear Suspension performing at its best—order today for superior ride comfort and mowing efficiency.

Bad Boy Mower Parts Lookup

2025 Renegade - Diesel - Rear Suspension
  Position Number SKU Product Title Price
1 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
3 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
4 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
5 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
6 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
7 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
8 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
9 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
12 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
13 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
14 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
15 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
16 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
17 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
