2025 Renegade - Gas - Drive Arms

2025 Renegade - Gas - Drive Arms

The 2025 Renegade - Gas Drive Arms play a vital role in ensuring stability and precise control of your mower. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to keep your drive arms functioning efficiently. Our Bad Boy Lawn Mower Parts inventory includes reinforced drive arms, bushings, control rods, and mounting hardware for long-lasting performance. With our Bad Boy Mower Part diagrams, you can quickly find and order the necessary parts for seamless repairs. A damaged or worn drive arm can result in steering issues, reducing the mower’s maneuverability and efficiency. We stock Bad Boy Parts Online for immediate availability, ensuring quick replacements with minimal downtime. Plus, with Free Shipping On Orders Over $100, keeping your 2025 Renegade - Gas Drive Arms in peak condition is now more budget-friendly. Order today to maintain smooth handling and precise mowing control.

Bad Boy Mower Parts Lookup

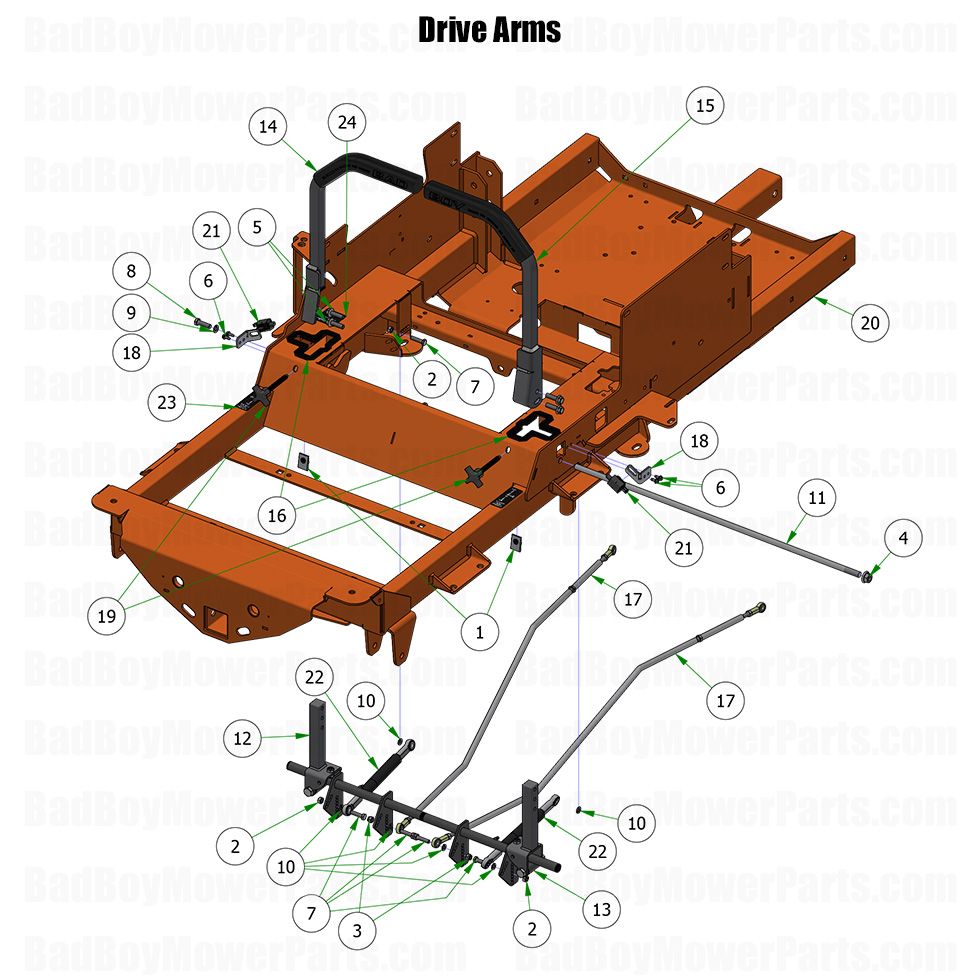

2025 Renegade - Gas - Drive Arms
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

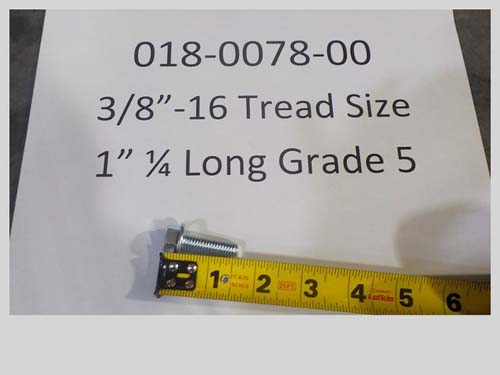

5 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
8 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
12 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
13 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29
14 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99

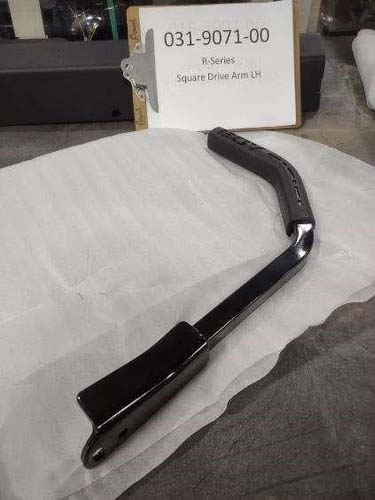

15 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
16 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55

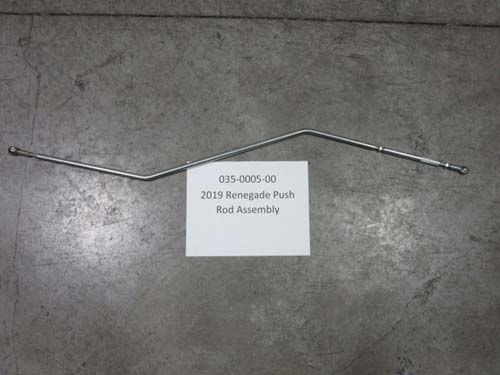

17 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
19 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
20 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
21 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
22 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
23 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
24 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
