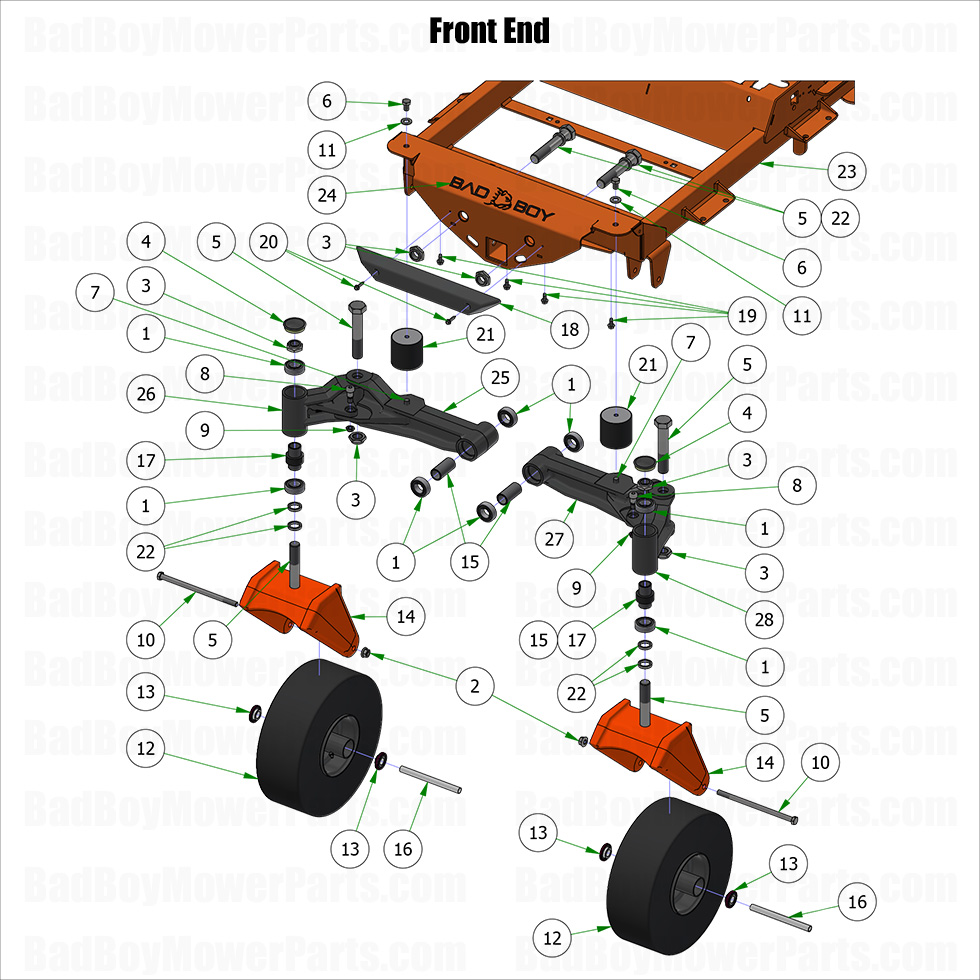

2025 Renegade - Gas - Front End

2025 Renegade - Gas - Front End

The 2025 Renegade - Gas Front End is crucial for maneuverability and handling, making regular maintenance essential. At BadBoyMowerParts.com, we offer durable Bad Boy Mower Parts to keep your front-end components in peak condition. Our Bad Boy Lawn Mower Parts selection includes front axles, caster wheels, bushings, and mounting brackets for reliable steering and stability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the right front-end components for seamless installation. A well-maintained front end ensures smooth turns, reduces vibrations, and improves mowing precision. We provide Bad Boy Parts Online to ensure fast and easy ordering, minimizing downtime. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Renegade - Gas Front End is both convenient and budget-friendly. Order today to keep your mower operating with superior handling and stability.

Bad Boy Mower Parts Lookup

2025 Renegade - Gas - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
6 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
7 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
8 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
9 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
11 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
12 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
13 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
14 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
15 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
16 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
17 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
18 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
19 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
20 030-7047-00 030-7047-00 - 1/4-14 x 1 1/4 HWA Unslot Tek Screw
$2.99
21 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
22 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
23 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
24 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
25 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
26 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
27 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
28 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
