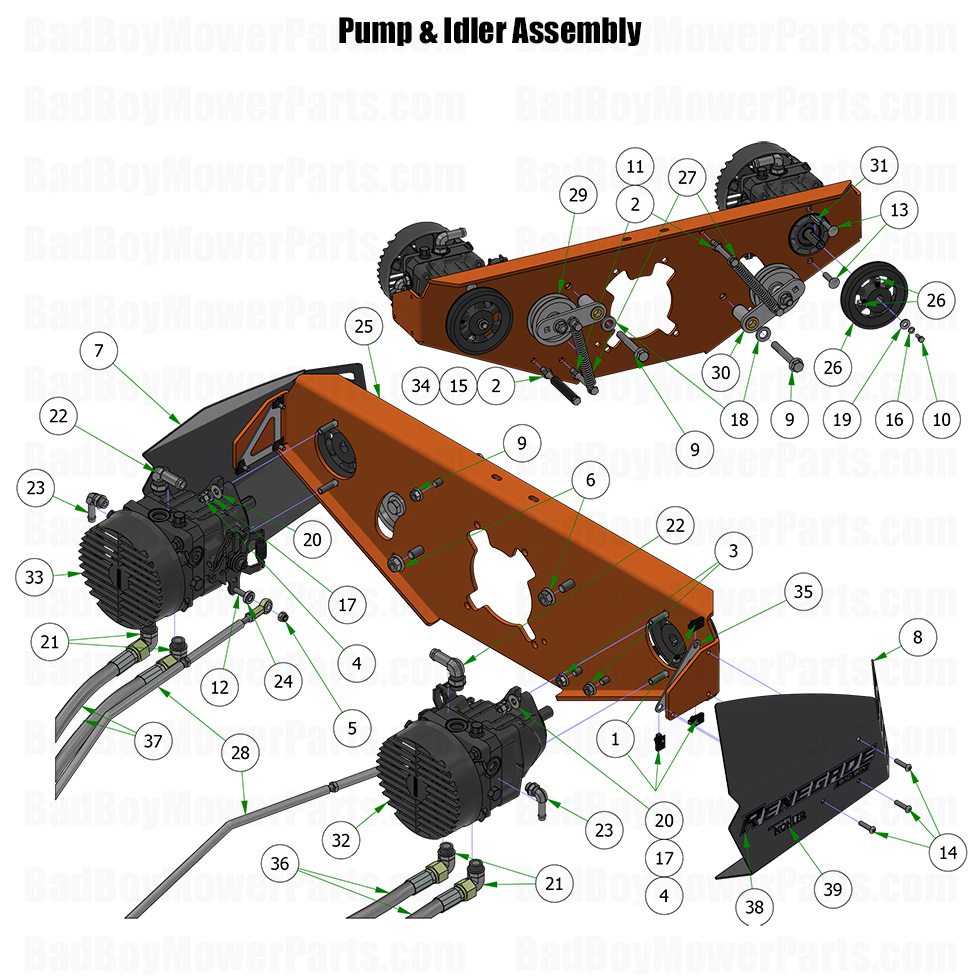

2025 Renegade - Gas - Pump & Idler Assembly

2025 Renegade - Gas - Pump & Idler Assembly

The 2025 Renegade - Gas Pump & Idler Assembly ensures smooth belt operation and optimal mower performance. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts to keep your mower’s hydraulic system running efficiently. Our Bad Boy Lawn Mower Parts inventory includes belt idlers, hydraulic pumps, pulleys, and tensioner arms for seamless operation. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct components for easy installation. A faulty idler assembly can cause belt misalignment and inefficient power transfer, making maintenance essential. We provide Bad Boy Parts Online for quick replacements and minimal downtime. Plus, with Free Shipping On Orders Over $100, keeping your 2025 Renegade - Gas Pump & Idler Assembly in top condition is now more budget-friendly. Order today for a well-maintained drive system and improved mowing efficiency.

Bad Boy Mower Parts Lookup

2025 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39
8 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
11 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
12 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
13 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
14 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
15 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
16 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
21 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
22 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
23 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
24 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
25 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99
26 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
27 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
28 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
29 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
30 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17
31 042-5013-00 042-5013-00 - M5 X 36MM Square Machinery Key C1018 ROUNDED ENDS
$2.99
32 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
33 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
34 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
35 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
39 091-4004-22 091-4004-22 - Powered by Kohler Decal
$6.04
