2025 Renegade - Gas - Battery & Rear Cover

2025 Renegade - Gas - Battery & Rear Cover

The 2025 Renegade - Gas Battery & Rear Cover system ensures reliable starting power and protection for essential mower components. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to keep your battery secure and properly functioning. Our Bad Boy Lawn Mower Parts selection includes battery terminals, wiring harnesses, rear covers, and mounting brackets to ensure durability and safety. Using our Bad Boy Mower Part diagrams, you can easily locate and order the necessary parts for seamless installation. A properly maintained battery provides consistent starts, while a secure rear cover protects internal components from debris and damage. We stock Bad Boy Parts Online for fast replacements, ensuring minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Renegade - Gas Battery & Rear Cover system is affordable and hassle-free. Order today to keep your mower’s electrical system operating at peak efficiency.

Bad Boy Mower Parts Lookup

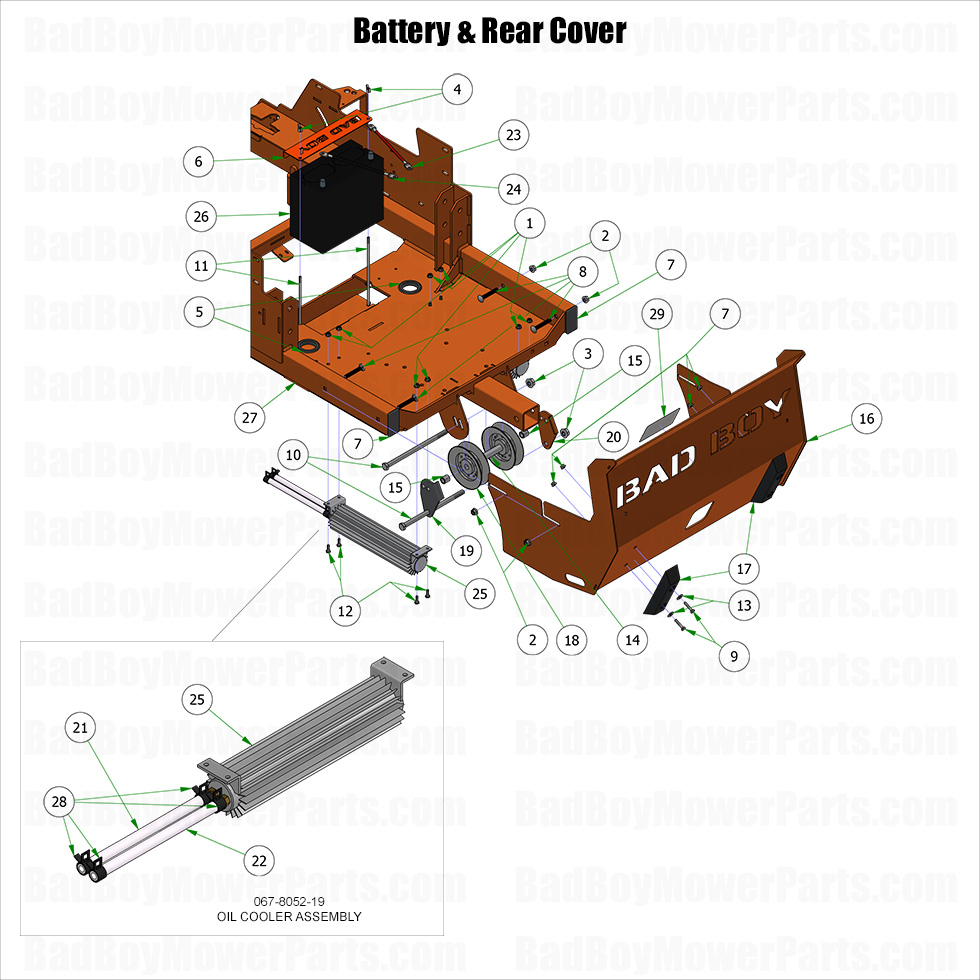

2025 Renegade - Gas - Battery & Rear Cover
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
5 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
6 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
7 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
8 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
9 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
11 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
14 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
17 029-7038-00 029-7038-00 - 8 Bumper
$28.32
18 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
19 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99
20 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
21 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
22 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
23 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
24 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
25A 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
25 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
27 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
28 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
29 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
