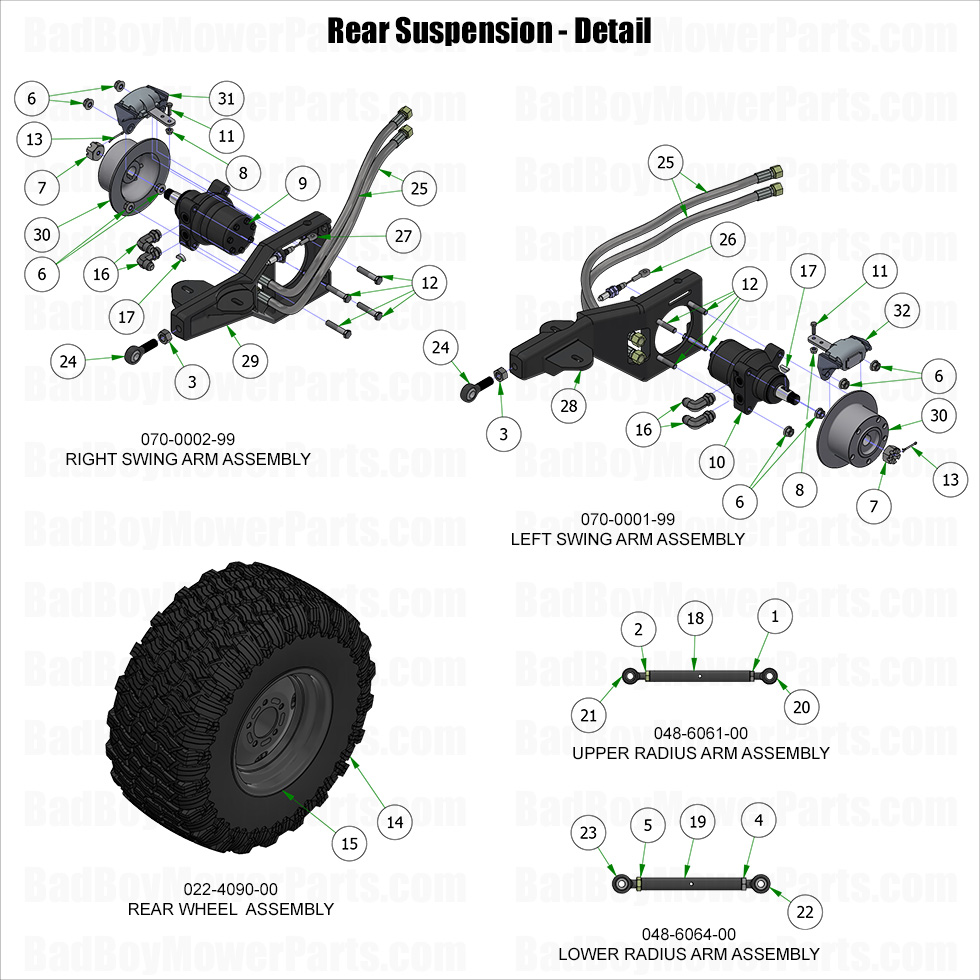

2025 Renegade - Gas - Rear Suspension - Detail

2025 Renegade - Gas - Rear Suspension - Detail

The 2025 Renegade - Gas Rear Suspension - Detail system is vital for maintaining smooth and stable operation across various terrains. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to ensure the durability and efficiency of your suspension components. Our Bad Boy Lawn Mower Parts inventory includes shock absorbers, brackets, bushings, and mounting hardware for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the exact parts needed for seamless installation. A well-maintained rear suspension reduces vibrations, improves traction, and enhances operator comfort during extended mowing sessions. We stock Bad Boy Parts Online for quick and reliable ordering, minimizing downtime. Plus, with Free Shipping On Orders Over $100, keeping your 2025 Renegade - Gas Rear Suspension - Detail system in excellent condition is easier than ever. Order today to ensure a smoother, more comfortable mowing experience.

Bad Boy Mower Parts Lookup

2025 Renegade - Gas - Rear Suspension - Detail
  Position Number SKU Product Title Price
1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
3 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
5 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
6 013-6040-00 013-6040-00 - 1/2-13 Centerlock Flange Nut
$2.99
7 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
8 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
10 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99
13 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
14.1 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
14 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
15 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
16 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
17 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
18.1 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
18 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
19.1 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
19 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
20 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
21 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
22 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
23 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
24 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
25 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
26 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
27 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
28 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
29 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
30 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
31 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
32 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
