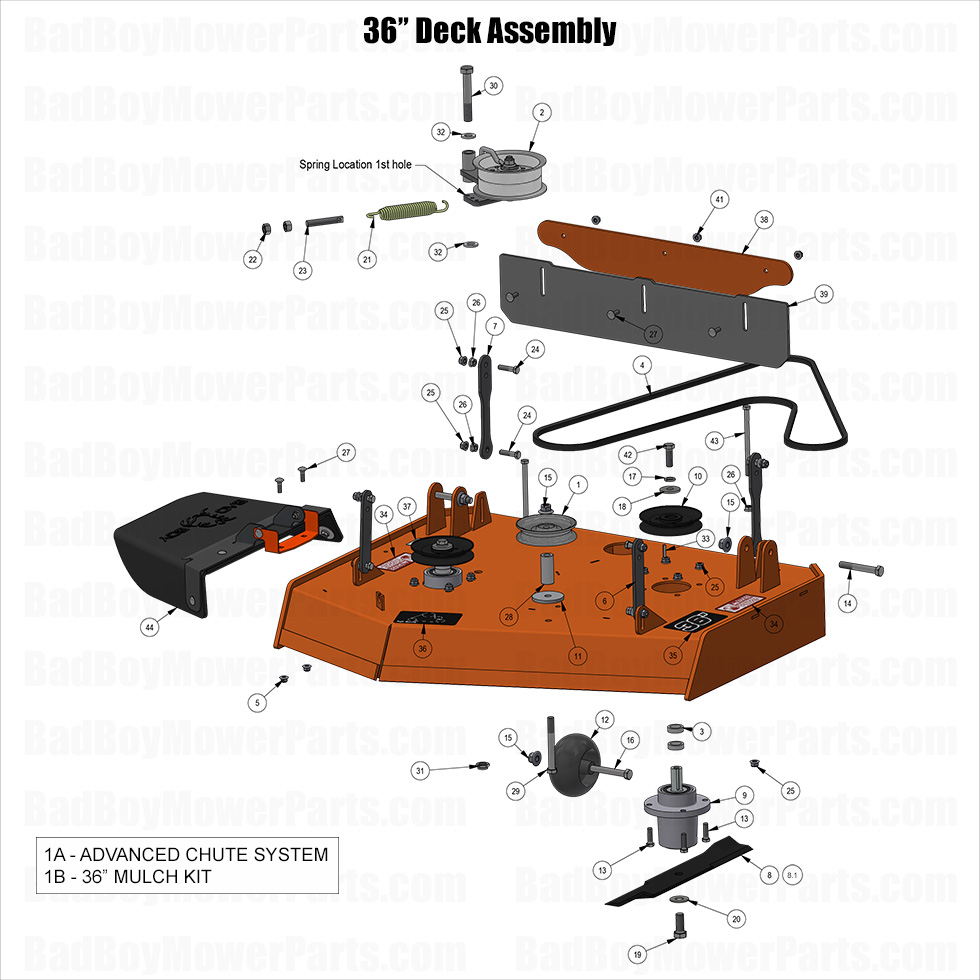

2025 Revolt (36" Deck) - 36" Deck Assembly

2025 Revolt (36" Deck) - 36" Deck Assembly

The 2025 Revolt (36" Deck) 36" Deck Assembly is built for precision cutting, and regular maintenance ensures peak performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including spindles, pulleys, blades, and deck belts to keep your cutting deck in excellent condition. Our Bad Boy Lawn Mower Parts inventory provides everything needed for deck repairs and replacements. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct parts for seamless installation. A well-maintained deck enhances mowing precision, reduces wear on other mower components, and extends blade life. We stock Bad Boy Parts Online for immediate availability, ensuring fast shipping and minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (36" Deck) 36" Deck Assembly is easier and more cost-effective. Order today and ensure top-notch cutting performance with every use.

Bad Boy Mower Parts Lookup

2025 Revolt (36" Deck) - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6036-00 088-6036-00 - Advanced Chute System for the Revolt with 36" Decks
$249.00
1B 210-0136-50 210-0136-50 - 36" Mulch Kit w/Wavy Blades Revolt
$318.45
1 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
2 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
3 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
4 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
7 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
8.1 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
8 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
9 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
10 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
11 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
12 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
16 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
21 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
22 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
23 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
25 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
26 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
28 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
29 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
30 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
31 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
32 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
33 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
34 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
35 091-3601-18 091-3601-18 - 2018-2022 36" Deck Decal
$8.79
36 091-4059-00 091-4059-00 - 36" Revolt Pump Belt Route Decal
$3.29
37 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
38 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
39 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
41 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
42 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
43 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
44 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95
