2025 Revolt (36" Deck) - Frame & Fuel Tank

2025 Revolt (36" Deck) - Frame & Fuel Tank

The 2025 Revolt (36" Deck) Frame & Fuel Tank system provides essential structural support and fuel efficiency for your mower. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to maintain your mower’s frame and fuel storage. Our Bad Boy Lawn Mower Parts inventory includes reinforced frame components, fuel tanks, caps, and hoses for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct replacement parts for fast installation. A properly maintained frame ensures mower stability, while a secure fuel tank prevents leaks and fuel loss. We provide Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (36" Deck) Frame & Fuel Tank is now more convenient and affordable than ever. Order today for durable support and optimal fuel management.

Bad Boy Mower Parts Lookup

2025 Revolt (36" Deck) - Frame & Fuel Tank
  Position Number SKU Product Title Price
1 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
2 051-8067-08 051-8067-08 - Revolt Fuel Line Assy No Longer Available
Obsolete.
3 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
4 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
5 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
6 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34

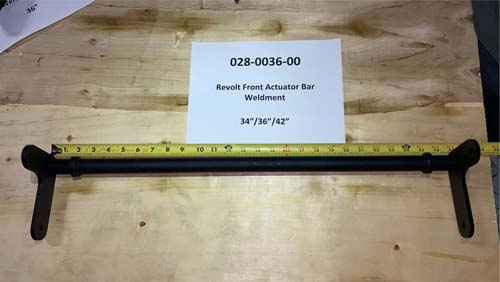

7 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
9 028-0038-00 028-0038-00 - Revolt Rear Actuator Bar Weldment-LH No Longer Available
Obsolete.
10 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
11 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
12 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.
16 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
17 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
18 018-0084-00 018-0084-00 - 3/8 -16 x 3 Hex bolt
$2.99
19 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
22 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
24 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
28 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
30 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
32 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
33 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
35 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$261.99
36 091-0025-00 091-0025-00 - Revolt Deck Height Indicator
$16.04
37 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
39 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
40 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
42 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
