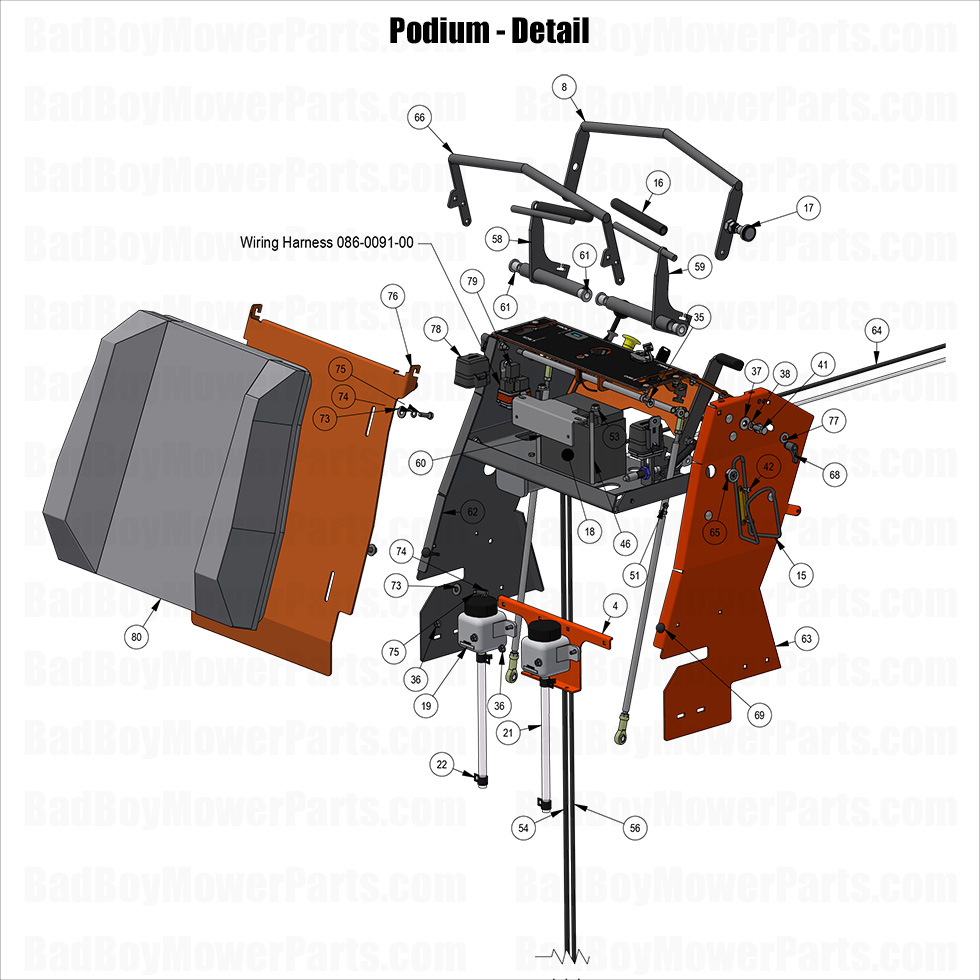

2025 Revolt (36" Deck) - Podium - Detail

2025 Revolt (36" Deck) - Podium - Detail

The 2025 Revolt (36" Deck) Podium - Detail provides a sturdy and ergonomic platform for operators, ensuring balance and control during mowing. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts to keep your podium assembly in peak condition. Our Bad Boy Lawn Mower Parts inventory includes anti-slip footrests, platform mounts, grip pads, and frame brackets for durability and safety. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary parts for seamless repairs and replacements. A well-maintained podium improves stability, enhances operator comfort, and prevents foot fatigue during extended use. We offer Bad Boy Parts Online to ensure fast delivery and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (36" Deck) Podium - Detail system is now more budget-friendly. Order today to ensure a secure and comfortable mowing experience.

Bad Boy Mower Parts Lookup

2025 Revolt (36" Deck) - Podium - Detail
  Position Number SKU Product Title Price

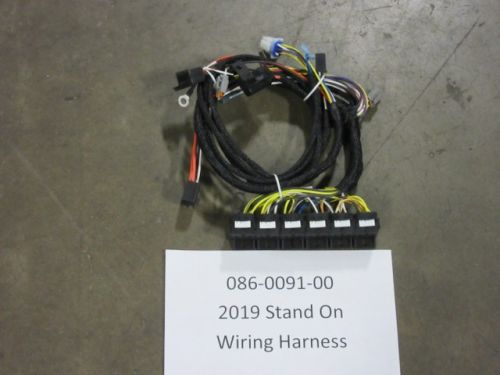

1 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
4 026-0157-00 026-0157-00 - 36" Hydrotank Carrier Plate
$26.74

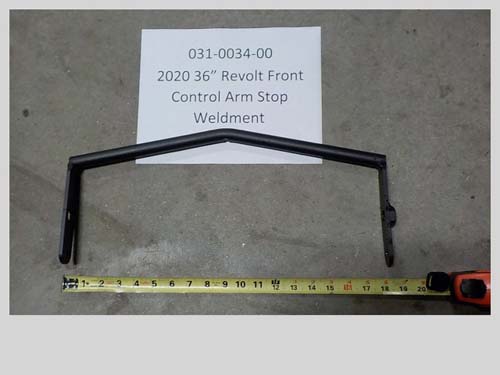

8 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05

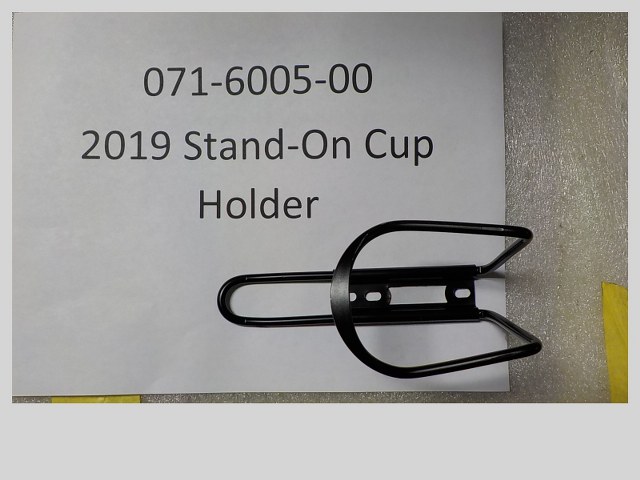

15 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71

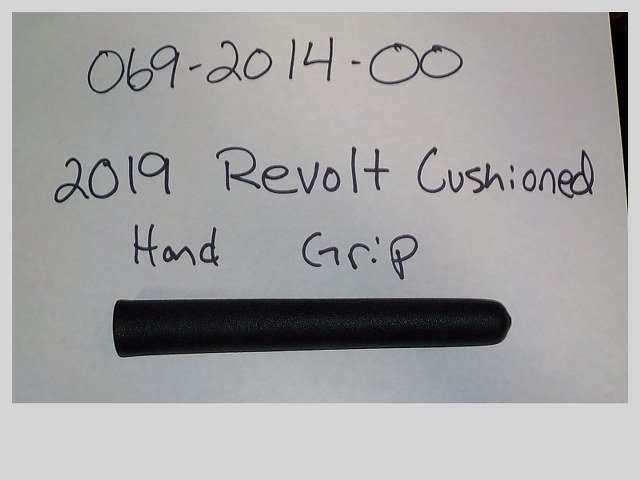

16 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01

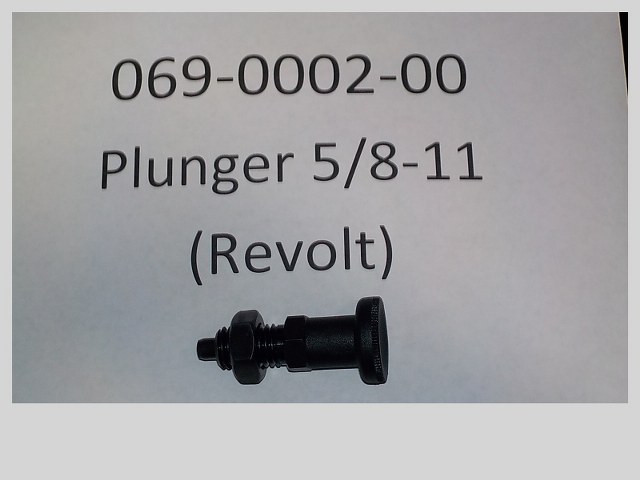

17 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
19 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22

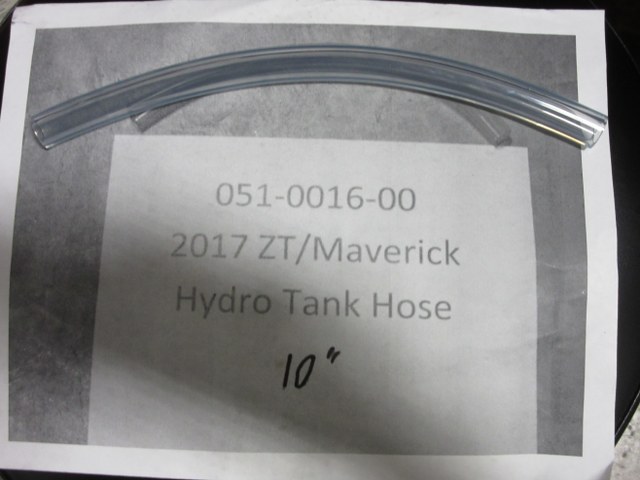

21 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
22 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
35 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
36 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
38 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
41 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
42 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
46 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
51 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
53 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
54 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
56 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48

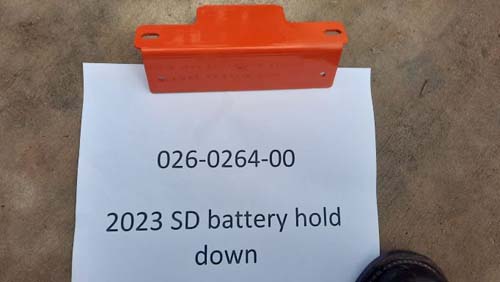

60 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04

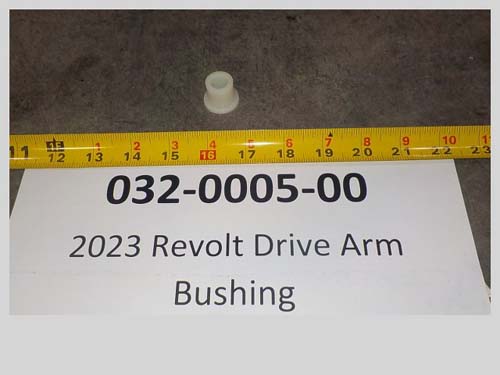

61 032-0005-00 032-0005-00 - 2023 Revolt Drive Arm Bushings
$2.99

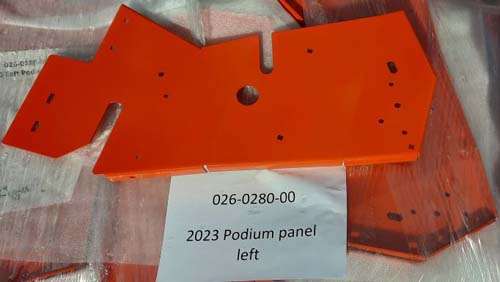

62 026-0280-00 026-0280-00 - 2023 Podium Panel Left--Orange
$42.79

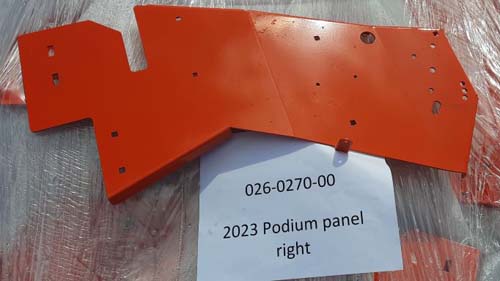

63 026-0270-00 026-0270-00 - 2023 Podium Panel Right--Orange
$42.79
64 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
65 024-0016-00 024-0016-00 - 2023 Expandable Locking Grommet No Longer Available
Obsolete.

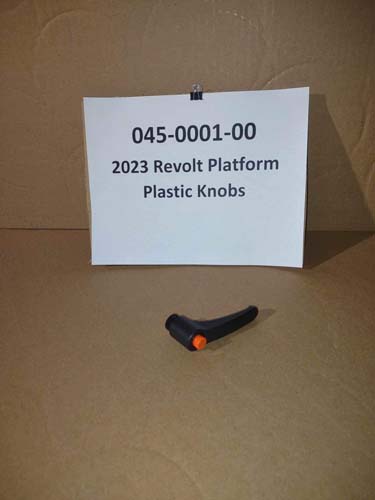

68 045-0001-00 045-0001-00 - 2023 Revolt Platform Plastic Knobs
$16.04
69 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
73 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
74 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
75 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
77 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
78 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
79 086-1202-19 086-1202-19 - Relay Terminal
$24.97
