2025 Revolt (36" Deck) - Spindle, Idler & Chute

2025 Revolt (36" Deck) - Spindle, Idler & Chute

The 2025 Revolt (36" Deck) Spindle, Idler & Chute system plays a critical role in cutting precision and efficiency. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts to keep your mower’s cutting deck in peak performance. Our Bad Boy Lawn Mower Parts selection includes spindles, bearings, idler pulleys, turnbuckles, and discharge chutes for optimal functionality. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct replacement parts for fast repairs. A damaged spindle or worn idler can lead to uneven cuts, increased belt wear, and mower inefficiency, making routine maintenance essential. We stock Bad Boy Parts Online for easy ordering and quick replacements. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (36" Deck) Spindle, Idler & Chute system is now more budget-friendly. Order today to ensure smooth, professional cutting performance.

Bad Boy Mower Parts Lookup

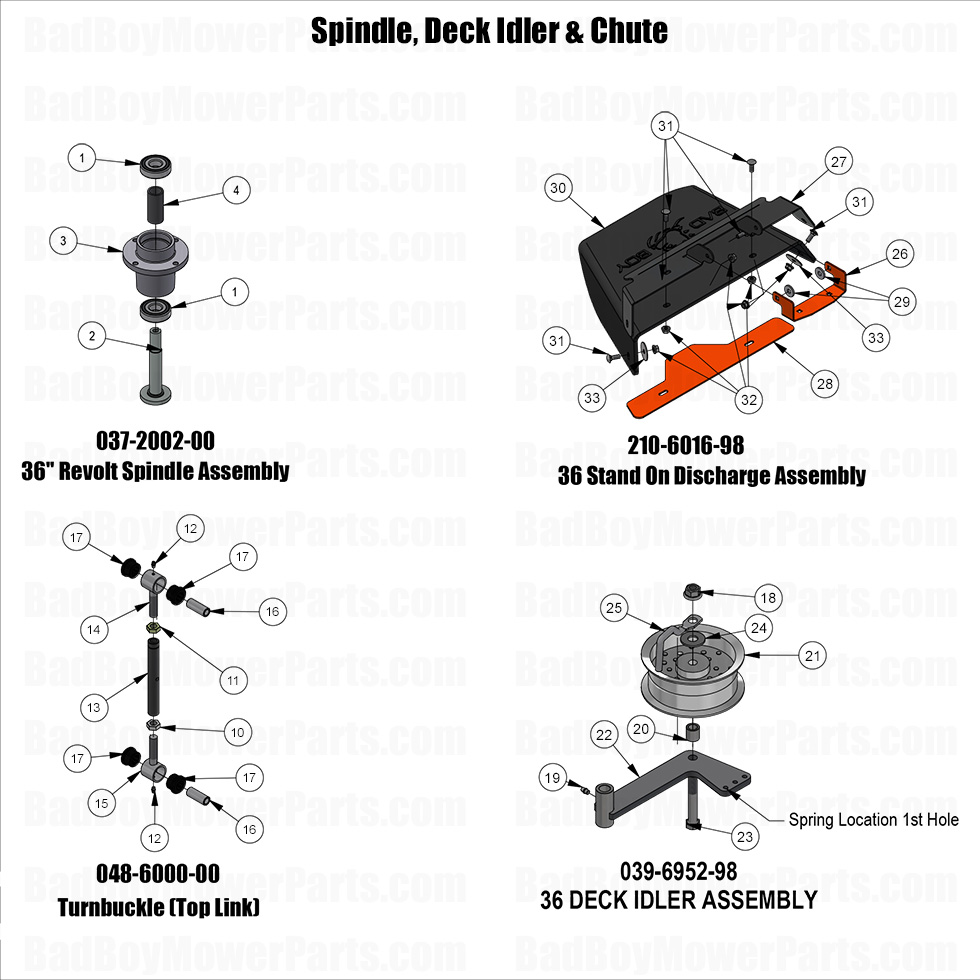

2025 Revolt (36" Deck) - Spindle, Idler & Chute
  Position Number SKU Product Title Price
1.1 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
2 037-6025-01 037-6025-01 - 36" Revolt Spindle Shaft
$72.75
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
10 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
11 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
12 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
13.1 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
13 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
14 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
15 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
16 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
17 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
21.1 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
21 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
22 039-6952-00 039-6952-00 - Deck Idler Arm
$10.99
23 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
24 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99

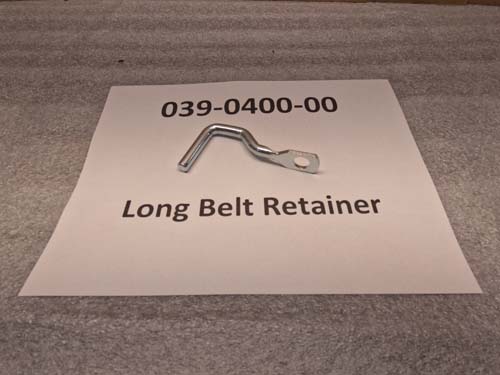

25 039-0400-00 039-0400-00 - Long Belt Retainer
$4.39
26 039-0152-00 039-0152-00 - 36" Chute Hanger Bracket (See Models Used On For Detail)
$21.39
27 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
28 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30.1 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95
30 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
31 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
32` 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
