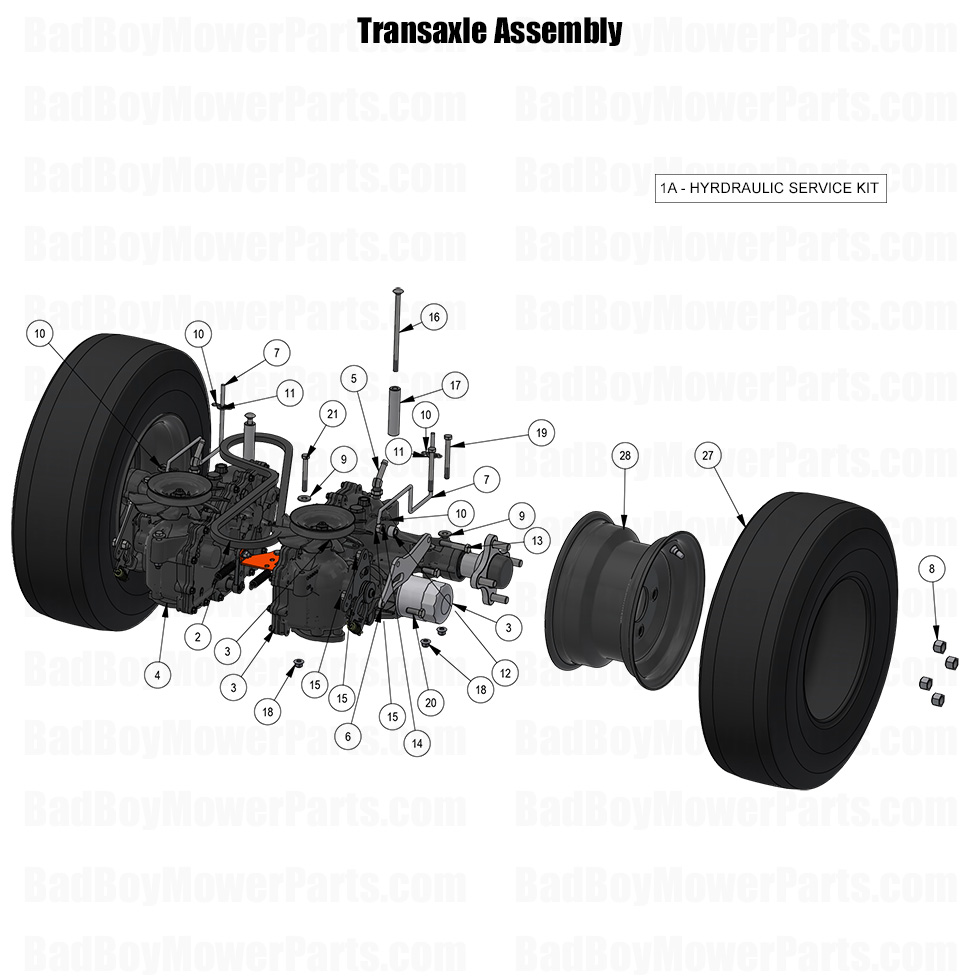

2025 Revolt (36" Deck) - Transaxle Assembly

2025 Revolt (36" Deck) - Transaxle Assembly

The 2025 Revolt (36" Deck) Transaxle Assembly is the powerhouse of your mower’s drive system, ensuring seamless movement and stability. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to maintain the efficiency and durability of your mower’s transaxle system. Our Bad Boy Lawn Mower Parts inventory includes hydraulic pumps, transaxle seals, drive gears, and axle shafts to keep your mower performing at its best. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary components for fast and efficient repairs. A failing transaxle can result in uneven performance, reduced traction, and potential breakdowns, making regular maintenance essential. We stock Bad Boy Parts Online to provide quick replacements with minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (36" Deck) Transaxle Assembly is now more affordable. Order today for reliable and long-lasting performance.

Bad Boy Mower Parts Lookup

2025 Revolt (36" Deck) - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
2 041-8000-00 041-8000-00 - Pump Belt (See Models Used On For Detail)
$80.24
3 050-2096-01 050-2096-01 - Left ZT Transaxle & 36" 2020-2022 Revolt
$729.99
4 050-2095-01 050-2095-01 - Right ZT Transaxle & 36" 2020-2022 Revolt
$729.99
5 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
7 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2024 Revolt
$29.95
8 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 044-2004-00 044-2004-00 - Bow Pin
$2.99
11 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
12 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
13 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
17 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
20 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
21 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
27 022-4042-00 022-4042-00 - 21x7-10 Reaper Turf Tire Only
$122.99
28 022-4043-00 022-4043-00 - 10 x 7 Black Wheel
$105.99
