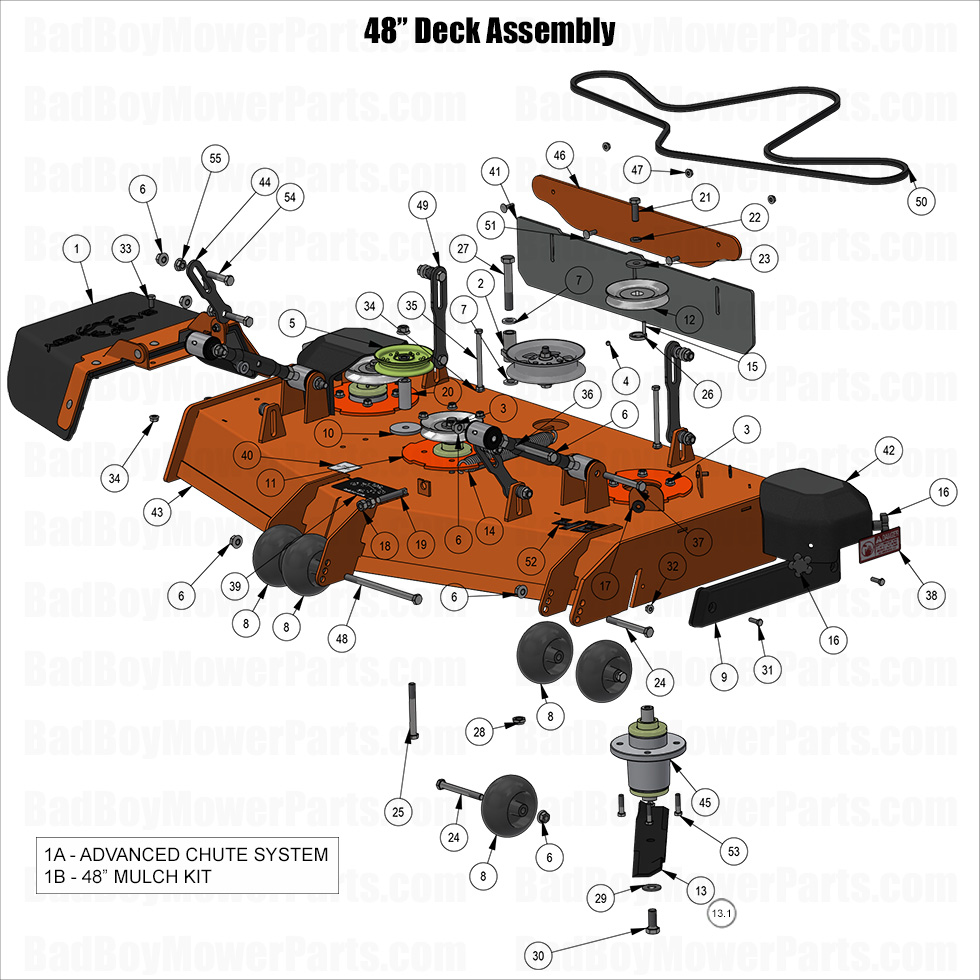

2025 Revolt (48"-61" Decks) - 48" Deck Assembly

2025 Revolt (48"-61" Decks) - 48" Deck Assembly

The 2025 Revolt (48"-61" Decks) 48" Deck Assembly is designed for superior cutting performance, and proper maintenance ensures its longevity. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including blades, spindles, pulleys, and belts for reliable deck operation. Our Bad Boy Lawn Mower Parts inventory has everything you need for deck repairs and replacements. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct parts for easy installation. A well-maintained deck improves cutting precision, reduces wear on mower components, and extends blade life. We keep Bad Boy Parts Online available for fast shipping, reducing downtime. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) 48" Deck Assembly is now more affordable. Order today and ensure professional-grade cutting performance.

Bad Boy Mower Parts Lookup

2025 Revolt (48"-61" Decks) - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0349-00 210-0349-00 - Revolt 48" Mulch Kit w/Blades
$318.45
1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
5 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
8 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
9 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
10 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
11 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
12 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
13.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
13 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
14 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
15 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
16 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
17 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
18 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
20 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
21 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
25 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
26 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
27 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
28 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
29 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
34 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
35 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
36 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
37 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
38 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
39 091-4019-00 091-4019-00 - 2019-2022 Revolt Deck Belt Route Decal
$6.04
40 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
41 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
42 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
43 060-2326-00 060-2326-00 - 2023 48" Revolt Deck--Painted
$1399.99
44 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
45 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
46 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
47 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
48 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
49 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
50 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
51 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
52 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
53 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
54 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
55 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
