2025 Revolt (48"-61" Decks) - 61" Deck Assembly

2025 Revolt (48"-61" Decks) - 61" Deck Assembly

The 2025 Revolt (48"-61" Decks) 61" Deck Assembly delivers maximum cutting efficiency, making routine maintenance essential. At BadBoyMowerParts.com, we provide high-performance Bad Boy Mower Parts, including reinforced spindles, heavy-duty blades, and durable deck belts. Our Bad Boy Lawn Mower Parts inventory ensures that you have access to the highest-quality replacements for consistent mowing performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the necessary deck components for easy repairs. A properly maintained deck improves overall mowing precision, minimizes wear, and extends the lifespan of your mower. We offer Bad Boy Parts Online for fast ordering and quick shipping. Plus, take advantage of Free Shipping On Orders Over $100, making deck maintenance more budget-friendly than ever. Keep your 2025 Revolt (48"-61" Decks) 61" Deck Assembly in top shape—order today for long-lasting performance.

Bad Boy Mower Parts Lookup

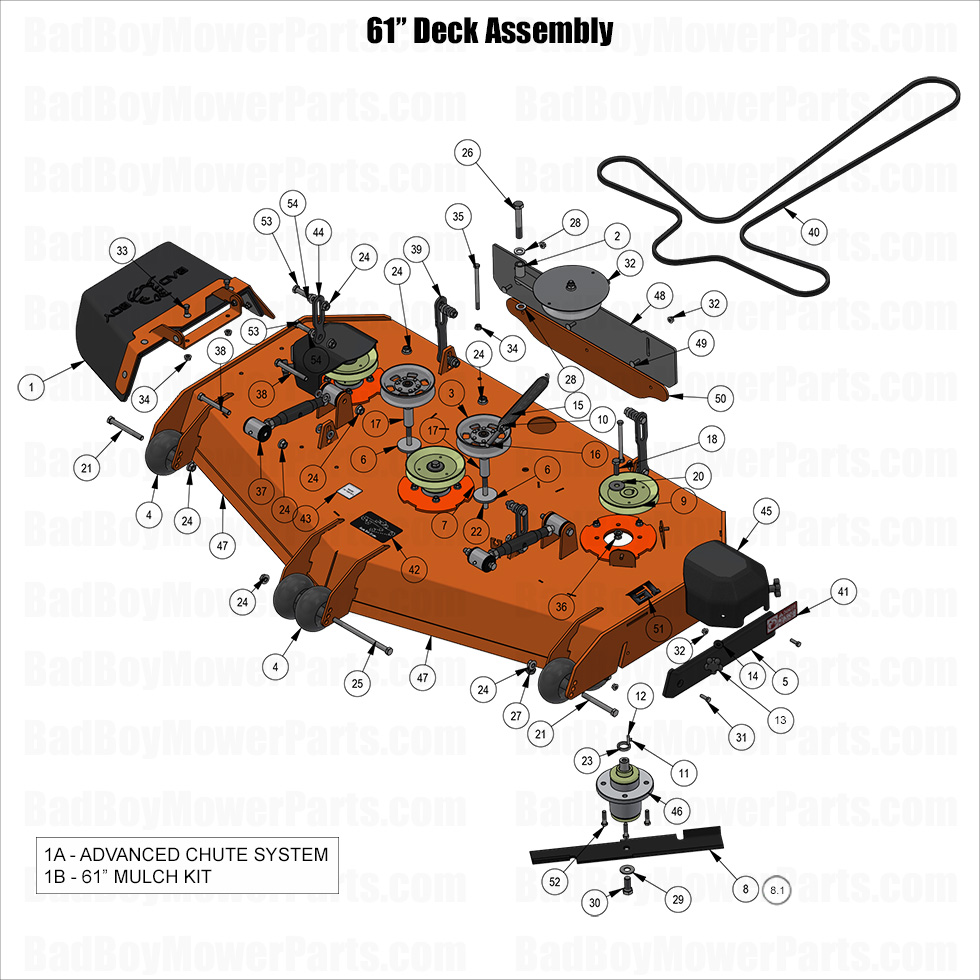

2025 Revolt (48"-61" Decks) - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
3 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
4 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
5 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
6 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
7 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
8.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
8 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
9 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
10 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
11 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
12 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
13 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
14 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
17 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
20 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
23 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
24 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
26 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
27 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
28 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
29 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
34 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
35 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
36 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
37 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
38 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39

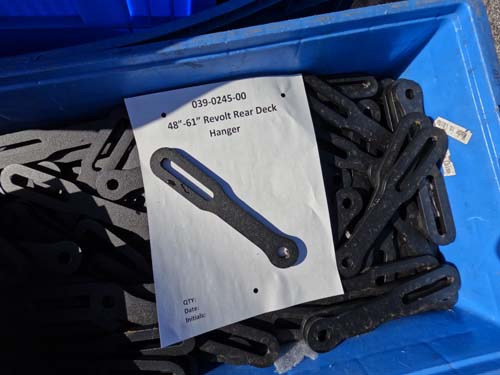

39 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
40 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
41 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
42 091-4052-00 091-4052-00 - 61" Revolt Deck Belt Route Decal
$6.59
43 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
44 039-0244-00 039-0244-00 - 61" Front Deck Hanger--Black
$21.39

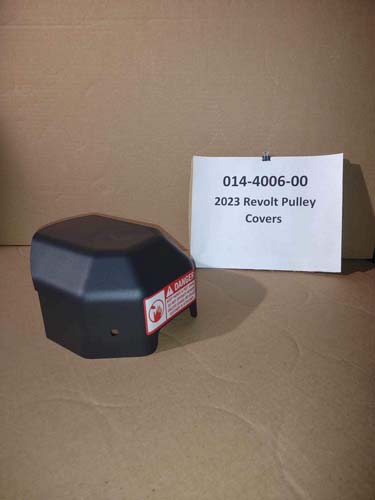

45 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
46 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
47 060-2328-00 060-2328-00 - 2023 61" Revolt Deck--Painted
$1399.99
48 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
49 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99

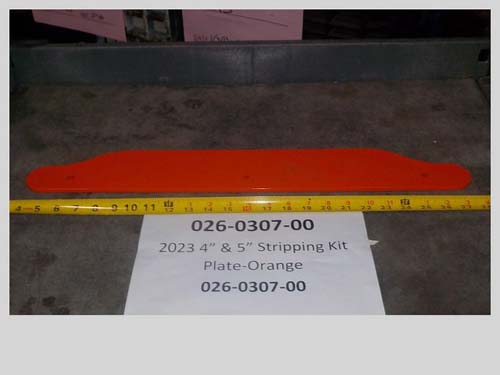

50 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
51 091-0506-00 091-0506-00 - MY24 61" Deck Decal
$9.89
52 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
53 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
54 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
