2025 Revolt (48"-61" Decks) - Engine - Kawasaki FX730

2025 Revolt (48"-61" Decks) - Engine - Kawasaki FX730

The 2025 Revolt (48"-61" Decks) Engine - Kawasaki FX730 delivers exceptional power and durability, making routine maintenance essential. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including spark plugs, carburetors, fuel pumps, and air filters for the FX730 engine. Our Bad Boy Lawn Mower Parts inventory ensures that you receive factory-grade replacements for reliable performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the necessary components for efficient repairs. A well-maintained engine extends your mower’s lifespan, improves fuel efficiency, and ensures optimal cutting power. We offer Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Engine - Kawasaki FX730 is now more convenient and budget-friendly. Order today to keep your engine running at maximum efficiency.

Bad Boy Mower Parts Lookup

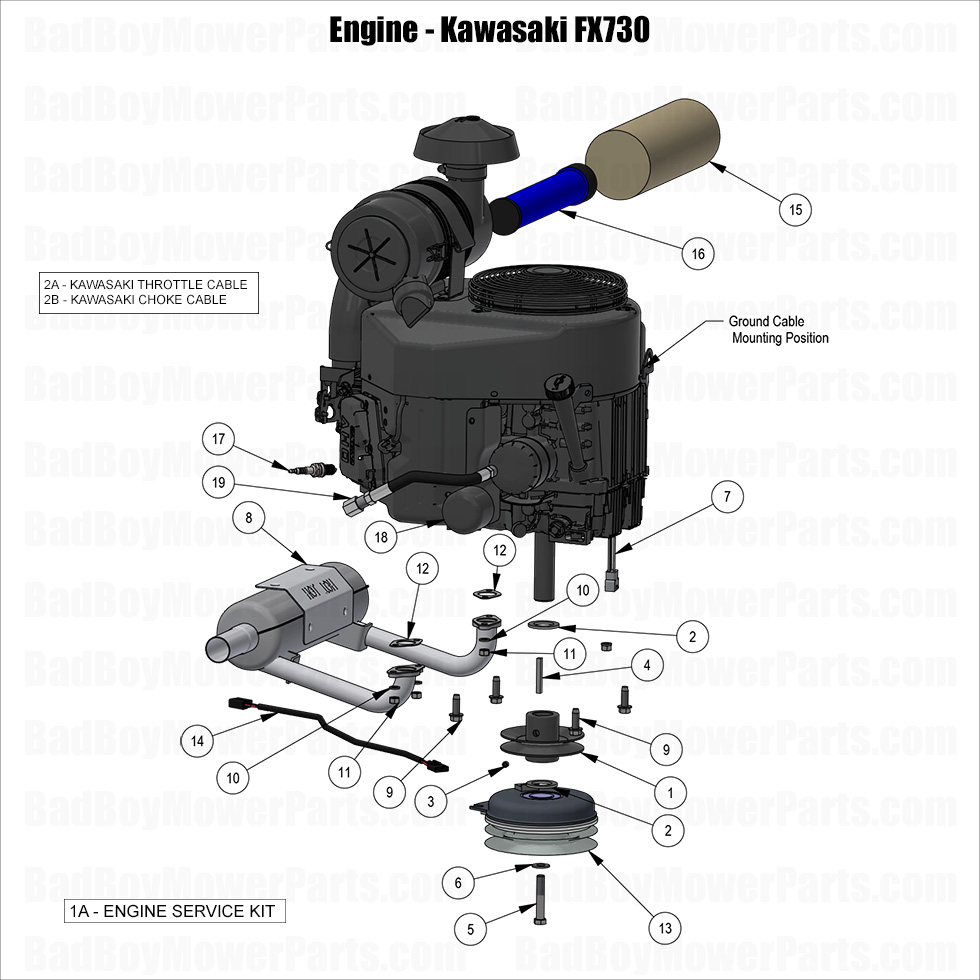

2025 Revolt (48"-61" Decks) - Engine - Kawasaki FX730
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
5 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
6 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
7 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
8 015-0692-00 015-0692-00 - Exhaust-Stand On-FX691V Kawasaki
$145.95
9 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
12 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
13 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
14 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
15 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
16 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
17 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
18 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
19 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
