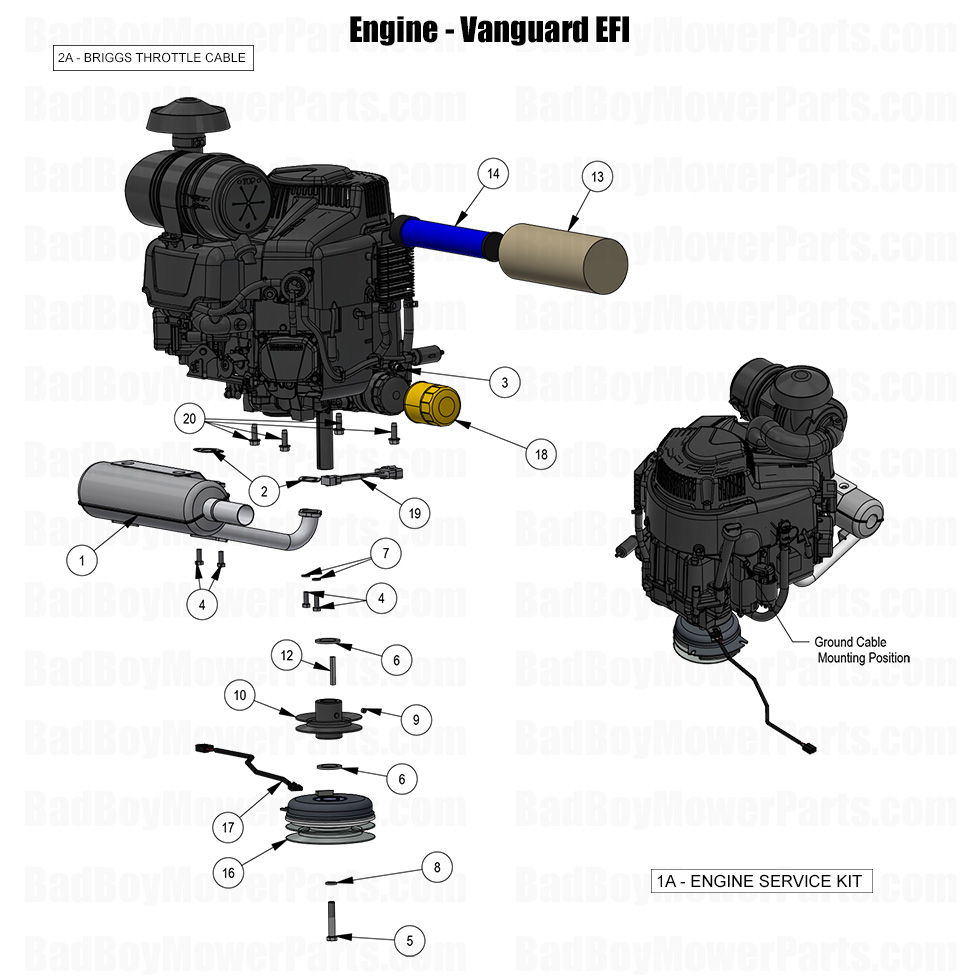

2025 Revolt (48"-61" Decks) - Engine - Vanguard EFI

2025 Revolt (48"-61" Decks) - Engine - Vanguard EFI

The 2025 Revolt (48"-61" Decks) Engine - Vanguard EFI offers fuel efficiency and high torque, but regular maintenance ensures continued performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your Vanguard EFI engine in top condition. Our Bad Boy Lawn Mower Parts inventory includes fuel injectors, air filters, oil filters, and cooling system components for optimal engine efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary engine parts for easy installation. Routine maintenance ensures better fuel efficiency, reduces emissions, and extends engine life. We stock Bad Boy Parts Online to provide fast shipping and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Engine - Vanguard EFI is now more affordable. Order today to keep your engine running at peak power and efficiency.

Bad Boy Mower Parts Lookup

2025 Revolt (48"-61" Decks) - Engine - Vanguard EFI
  Position Number SKU Product Title Price
1A 063-2000-22 063-2000-22 - Engine Service Kit - Briggs Vanguard 810/993/999cc (EFI Models Only)
$127.15

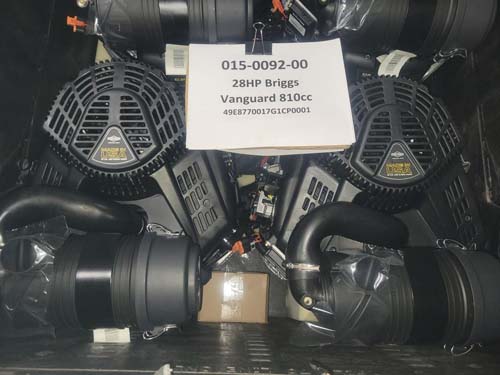

1A 015-0092-00 015-0092-00 - 28HP Briggs Vanguard 810cc
$2899.99

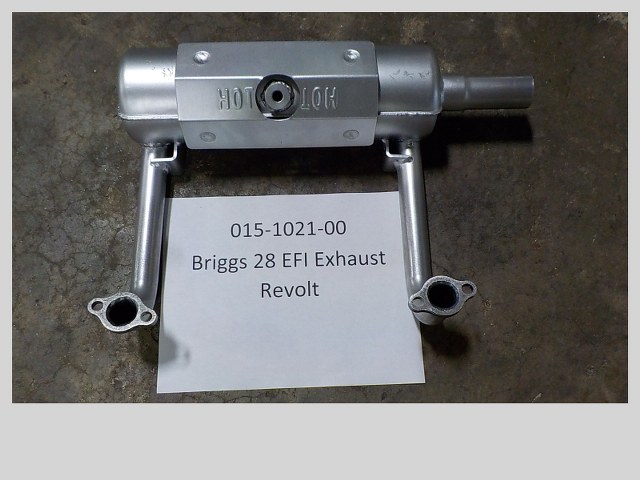

1 015-1021-00 015-1021-00 - Briggs 28 EFI Exhaust Revolt
$209.99
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
3 015-8000-03 015-8000-03 - Spark Plug for Vanguard 37hp EFI and 28hp EFI (Not for Non-EFI)
$7.69
4 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
5 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
6 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
9 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
10 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
12 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
16 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
17 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
18 063-8018-00 063-8018-00 - Oil Filter
$21.39
19 086-9015-21 086-9015-21 2021-2024 28 Briggs EFI Pigtail
$21.39
20 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
