2025 Revolt (48"-61" Decks) - Front End

2025 Revolt (48"-61" Decks) - Front End

The 2025 Revolt (48"-61" Decks) Front End ensures stability, smooth steering, and reliable control of your mower. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts to keep your mower’s front-end components in peak condition. Our Bad Boy Lawn Mower Parts selection includes axles, caster wheels, bushings, and pivot brackets for improved maneuverability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct front-end components for fast installation. A well-maintained front end ensures precise handling, reduces vibration, and extends the life of your mower. We stock Bad Boy Parts Online to provide quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Front End is now more affordable and convenient. Order today to ensure superior handling and performance.

Bad Boy Mower Parts Lookup

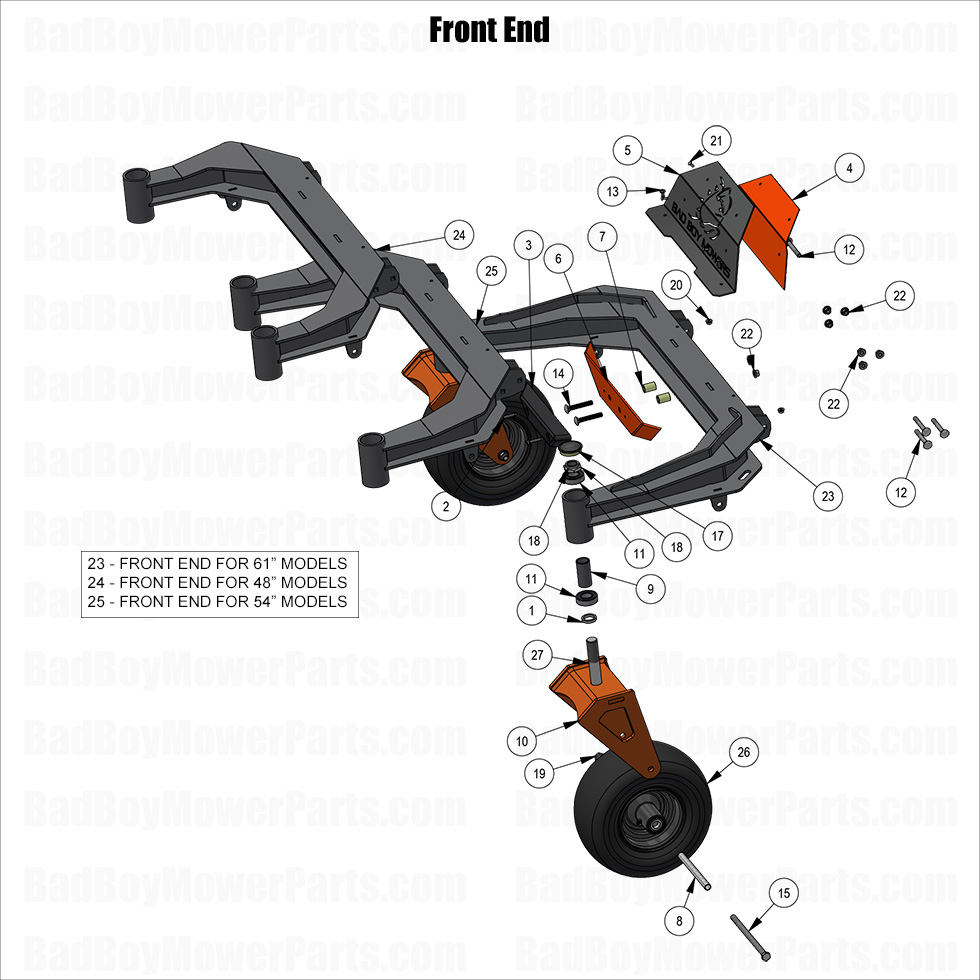

2025 Revolt (48"-61" Decks) - Front End
  Position Number SKU Product Title Price
1 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
2 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
3 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
4 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
5 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
6 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
7 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
11 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
12 018-0072-00 018-0072-00 - 3/8-16 x 3 Carriage Bolt Zinc GR5
$2.99
13 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
14 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
15 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
17 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
18 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
21 013-0026-00 013-0026-00 - 3/16" Diameter, for 0.1260"-0.25" Material
$3.29
22 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
23 070-9062-00 070-9062-00 - 61" Stand On Front End--Orange
$229.99
25 070-9055-00 070-9055-00 - 54" Stand On Front End--Orange
$159.99
26 022-3088-00 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue)
$145.99
27 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
