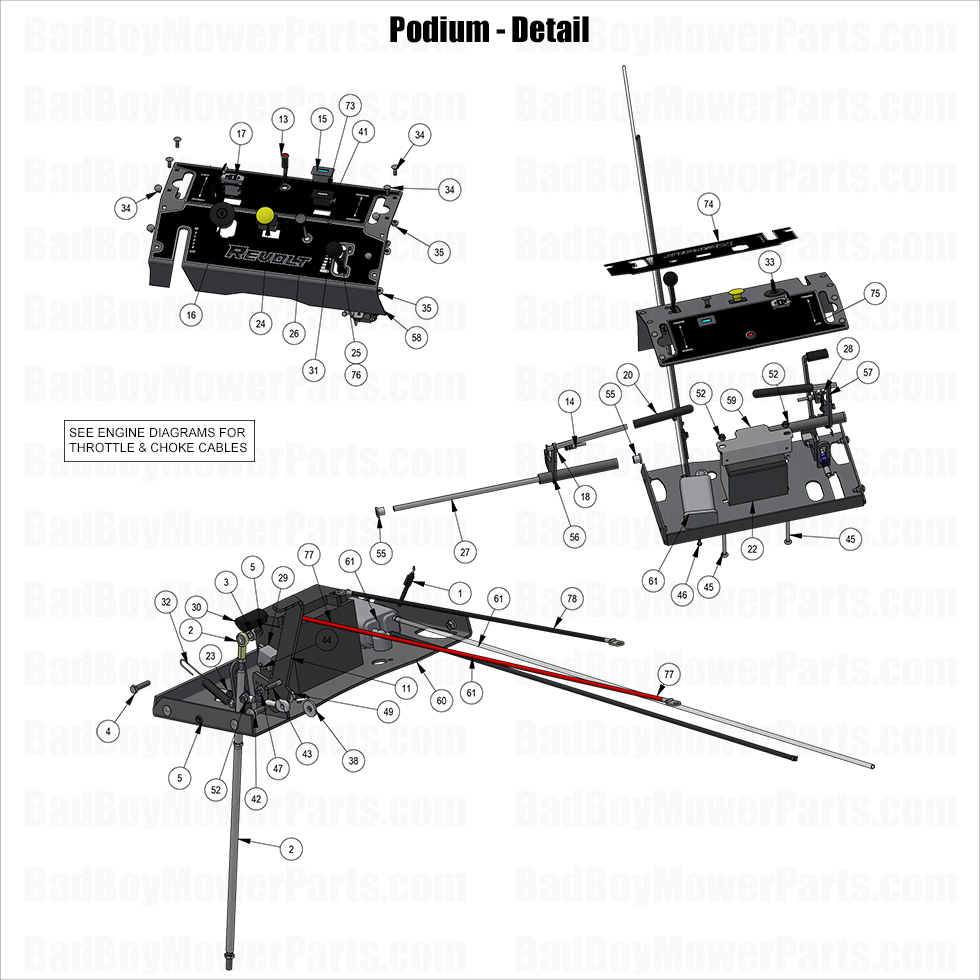

2025 Revolt (48"-61" Decks) - Podium - Detail

2025 Revolt (48"-61" Decks) - Podium - Detail

The 2025 Revolt (48"-61" Decks) Podium - Detail system provides the operator with a stable and comfortable platform while mowing. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts to keep your mower’s podium secure and functional. Our Bad Boy Lawn Mower Parts inventory includes grip pads, footrests, frame brackets, and anti-slip surfaces for long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can easily find and order the correct podium components for fast installation. A sturdy and comfortable podium improves operator stability, reducing fatigue and enhancing control. We provide Bad Boy Parts Online to ensure quick ordering and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Podium - Detail is now cost-effective. Order today for a secure and ergonomic mowing experience.

Bad Boy Mower Parts Lookup

2025 Revolt (48"-61" Decks) - Podium - Detail
  Position Number SKU Product Title Price
2 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
3 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
4 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
5 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
11 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
13 089-1000-00 089-1000-00 - Oil Light
$12.63
14 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
15 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
16 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
17 077-2076-00 077-2076-00 - USB Port
$46.84
18 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
20 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
23 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
24 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
25 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
27 031-0091-00 031-0091-00 - Drive Pivot Bar 2020-2022 Revolt
$35.48
28 013-0001-00 013-0001-00 - 8-32 Hex Nut
$2.99
29 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
30 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
31 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
32 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
33 042-9000-00 042-9000-00 - Ignition Key
$4.06
34 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
35 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
38 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
41 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
42 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
43 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
44 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
45 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
47 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
49 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
52 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
55 032-0005-00 032-0005-00 - 2023 Revolt Drive Arm Bushings
$2.99
59 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04
61 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
73 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
77 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
78 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
