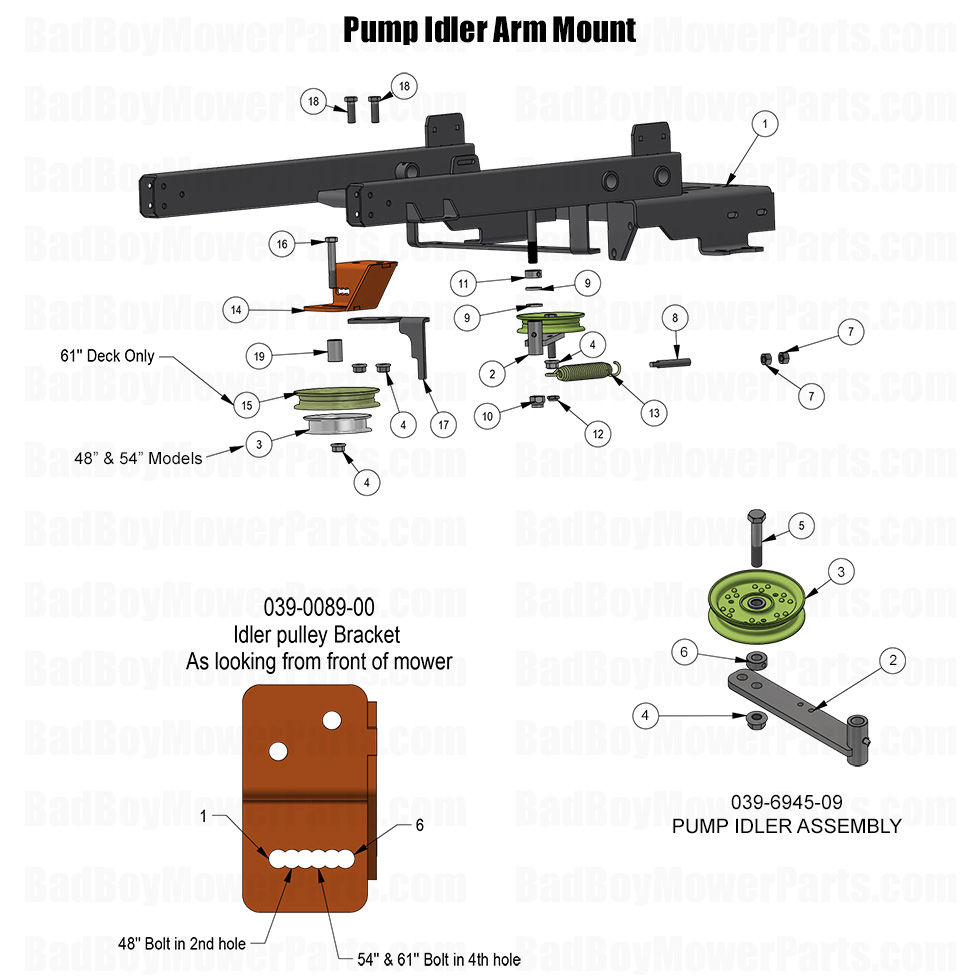

2025 Revolt (48"-61" Decks) - Idler Arm Mount

2025 Revolt (48"-61" Decks) - Idler Arm Mount

The 2025 Revolt (48"-61" Decks) Idler Arm Mount is a critical component that helps maintain belt tension and smooth operation. At BadBoyMowerParts.com, we offer durable Bad Boy Mower Parts to ensure your mower’s idler system works efficiently. Our Bad Boy Lawn Mower Parts inventory includes idler arms, mounting brackets, bearings, and tensioner components for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct idler arm mount parts for fast and reliable installation. A properly maintained idler arm reduces wear on belts and pulleys, ensuring optimal power transfer. We stock Bad Boy Parts Online for quick shipping and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Idler Arm Mount is now more affordable. Order today for smooth belt operation and enhanced mower efficiency.

Bad Boy Mower Parts Lookup

2025 Revolt (48"-61" Decks) - Idler Arm Mount
  Position Number SKU Product Title Price
1 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
2A 039-6945-09 039-6945-09 - Pump Idler Assembly
$58.84
2 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
3 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
11 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
13 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
14 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
15 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
16 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
17 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
18 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
19 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
