2025 Revolt (48"-61" Decks) - Spindle & Deck Idlers

2025 Revolt (48"-61" Decks) - Spindle & Deck Idlers

The 2025 Revolt (48"-61" Decks) Spindle & Deck Idlers system is crucial for smooth blade operation and consistent mowing performance. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including spindles, bearings, idler pulleys, and tensioners to keep your cutting deck functioning efficiently. Our Bad Boy Lawn Mower Parts inventory provides direct-fit replacements to ensure seamless operation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct spindle and deck idler components for fast repairs. A properly maintained spindle and idler system reduces belt wear, enhances cutting precision, and extends mower life. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Spindle & Deck Idlers is now more cost-effective. Order today for superior cutting performance and durability.

Bad Boy Mower Parts Lookup

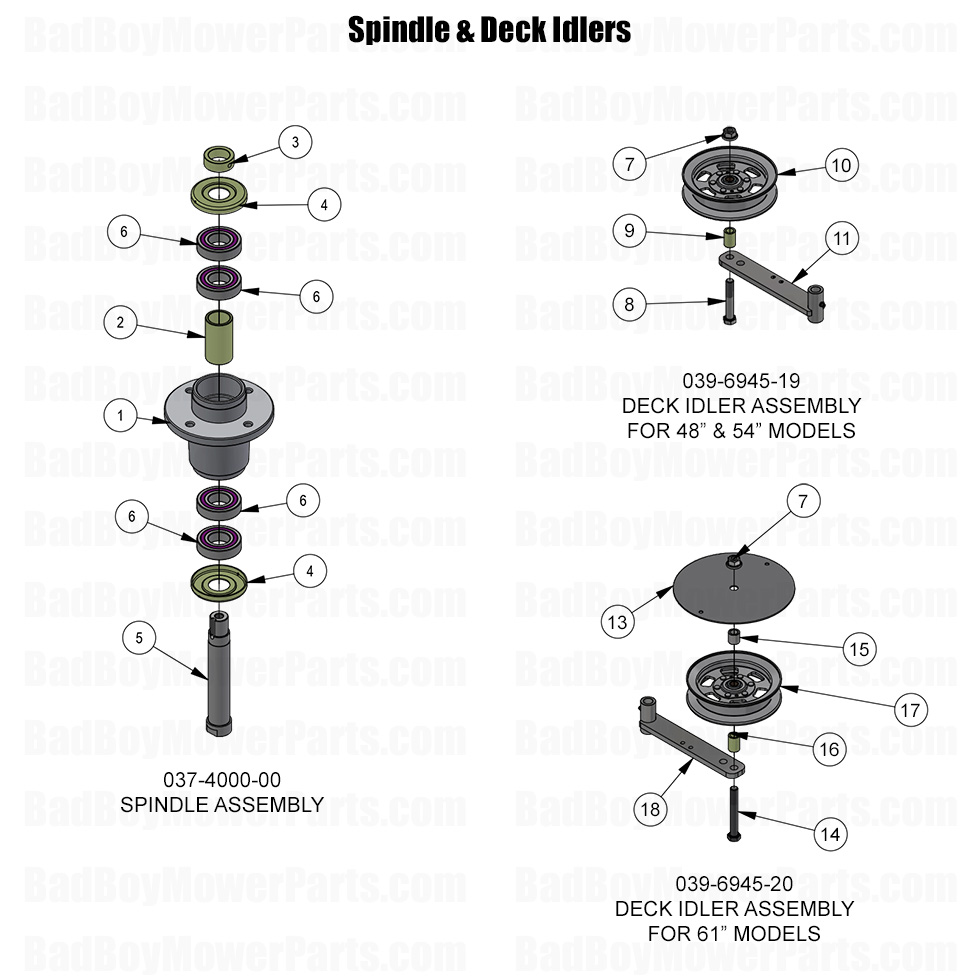

2025 Revolt (48"-61" Decks) - Spindle & Deck Idlers
  Position Number SKU Product Title Price
1A 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
9 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
10 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
11A 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
13 014-4005-00 014-4005-00 - 61" Revolt Idler Pulley Cover
$21.39
14 018-0051-00 018-0051-00 - 1/2-13 X 3.75 Hex Bolt-
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18A 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
