2025 Revolt (48"-61" Decks) - Transaxle Assembly

2025 Revolt (48"-61" Decks) - Transaxle Assembly

The 2025 Revolt (48"-61" Decks) Transaxle Assembly is the powerhouse behind your mower’s drive system, ensuring smooth power transfer and mobility. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your mower’s transaxle assembly in peak working condition. Our Bad Boy Lawn Mower Parts inventory includes transaxle housings, hydraulic pumps, seals, gears, and bearings for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can easily locate and order the correct transaxle components for efficient repairs. A well-maintained transaxle ensures seamless power distribution, improves traction, and prevents premature wear on drive system components. We stock Bad Boy Parts Online to provide fast replacements and quick delivery. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt (48"-61" Decks) Transaxle Assembly is now more convenient and affordable. Order today for smooth and reliable mower operation.

Bad Boy Mower Parts Lookup

2025 Revolt (48"-61" Decks) - Transaxle Assembly
  Position Number SKU Product Title Price
1A 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
1B 022-4195-00 022-4195-00 - 23x11-12 Reaper Turf Tire
$255.99
1C 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
1D 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
1E 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
1F 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
2 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
4 018-0071-00 018-0071-00 - 1/2-13 x 5/8 Hex C/S GR.5 ZC No Longer Available
Obsolete.
5 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
6 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
9 044-2004-00 044-2004-00 - Bow Pin
$2.99
10 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
11 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
12 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
16 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
19 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
22 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
23 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
24 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
25 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
26 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
27 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48

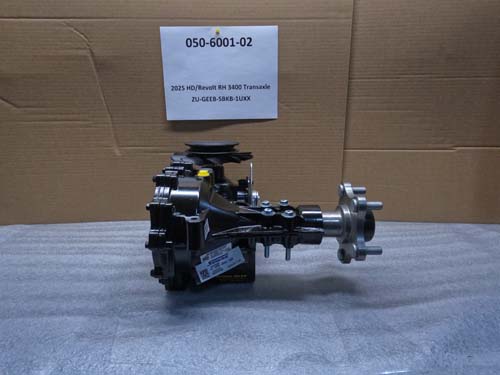

28 050-6001-02 050-6001-02 - ZT3400 Transaxle Right
$819.99
29A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74

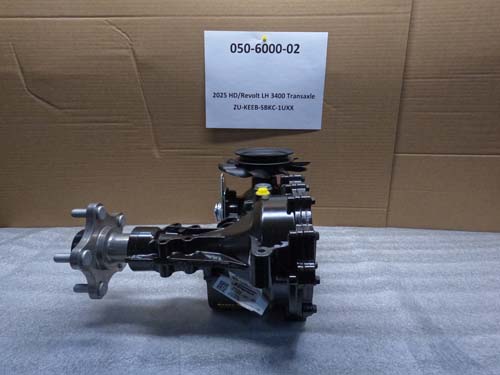

29 050-6000-02 050-6000-02 - 2025 LH 3400 Transaxle
$819.99
