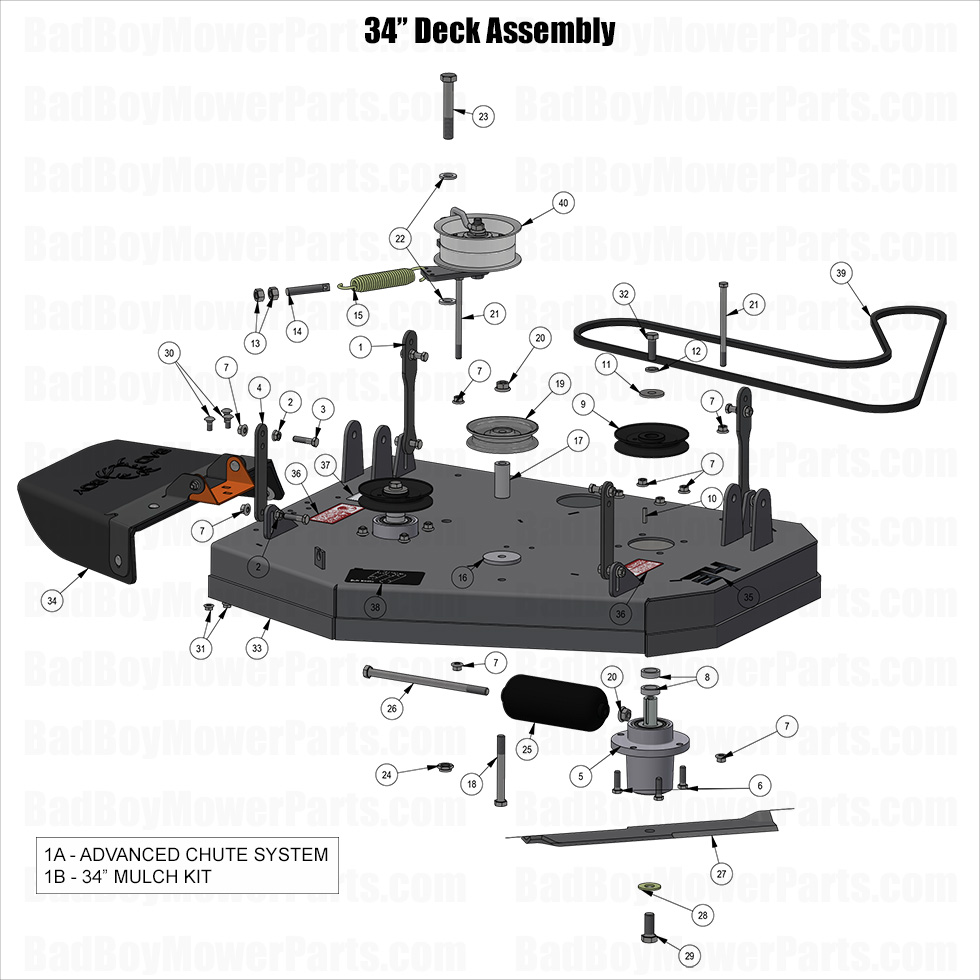

2025 Revolt SD - 34" Deck Assembly

2025 Revolt SD - 34" Deck Assembly

The 2025 Revolt SD 34" Deck Assembly ensures precision mowing and optimal cutting performance. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including spindles, pulleys, cutting blades, and belts to keep your deck operating efficiently. Our Bad Boy Lawn Mower Parts selection provides everything you need for routine maintenance and deck repairs. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck components for fast installation. A well-maintained deck assembly ensures smooth, even cutting, reduces wear on other components, and extends blade life. We offer Bad Boy Parts Online for fast and reliable shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt SD 34" Deck Assembly is now more affordable. Order today to ensure a high-quality mowing experience with professional-grade cutting results.

Bad Boy Mower Parts Lookup

2025 Revolt SD - 34" Deck Assembly
  Position Number SKU Product Title Price
1A 088-3642-00 088-3642-00 - 34"/42" Revolt SD ACS Kit
$249.00
1B 210-3450-00 210-3450-00 - Revolt SD 34" Mulch Kit Assembly
$318.45
1 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
4 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
5 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
9 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
10 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
11 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
14 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
15 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
16 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
17 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
25 822-2055-00 822-2055-00 - Revolt SD Deck Roller
$42.75
26 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
27 038-0036-00 038-0036-00 Revolt 34" Deck Blade
$22.99
28 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
29 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
30 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
34 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
36 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
37 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
38 091-4058-00 091-4058-00 - 36" Revolt Deck Belt Route Decal No Longer Available
Obsolete.
39 041-4024-00 041-4024-00 - 34" Revolt SD Deck Belt
$72.75
