2025 Revolt SD - Frame & Fuel Tank

2025 Revolt SD - Frame & Fuel Tank

The 2025 Revolt SD Frame & Fuel Tank system is essential for structural integrity and efficient fuel storage. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to keep your mower’s frame sturdy and fuel system leak-free. Our Bad Boy Lawn Mower Parts inventory includes reinforced frame components, fuel tanks, hoses, caps, and mounting hardware for secure and long-lasting use. Using our Bad Boy Mower Part diagrams, you can easily locate and order the necessary parts for quick repairs. A properly maintained frame ensures mower stability, while a secure fuel tank prevents leaks and fuel waste. We offer Bad Boy Parts Online to make ordering convenient and fast. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt SD Frame & Fuel Tank is now more affordable. Order today to ensure reliable fuel storage and strong structural support.

Bad Boy Mower Parts Lookup

2025 Revolt SD - Frame & Fuel Tank
  Position Number SKU Product Title Price
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99

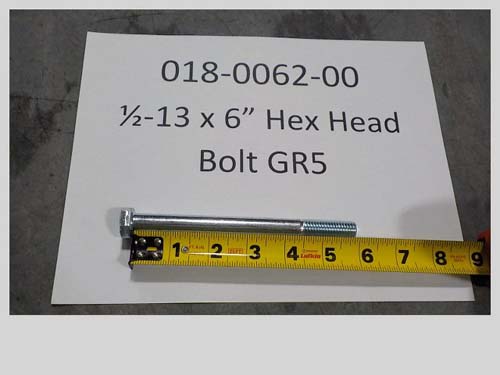

7 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
8 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
13 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
14 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34
15 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$261.99
16 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
17 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
18 070-5223-00 070-5223-00 - 2023-Newer Revolt SD Frame Weldment--Orange
$1299.99
19 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39

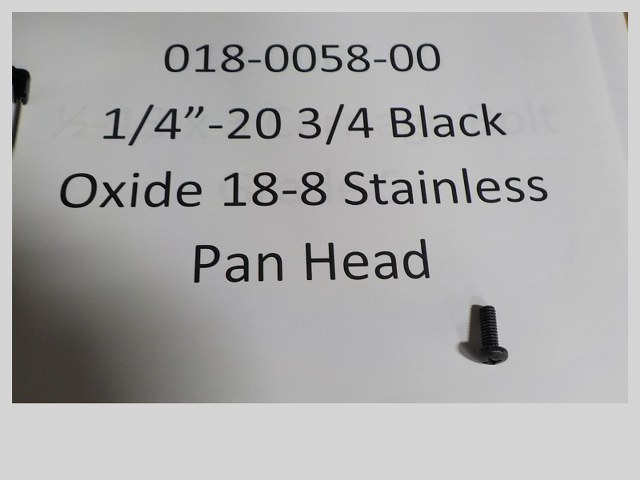

22 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.

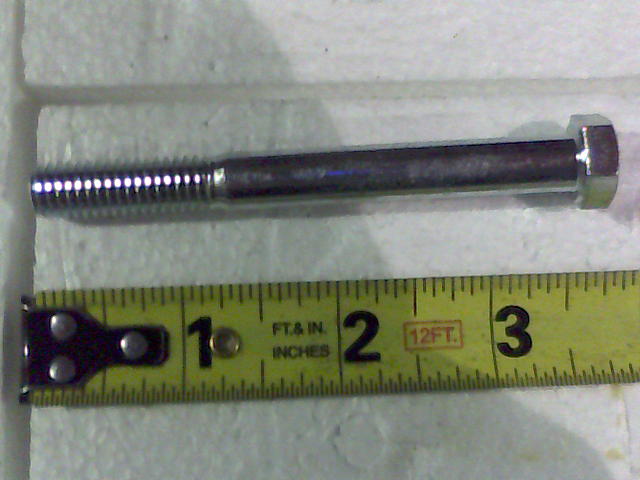

23 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
24 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29

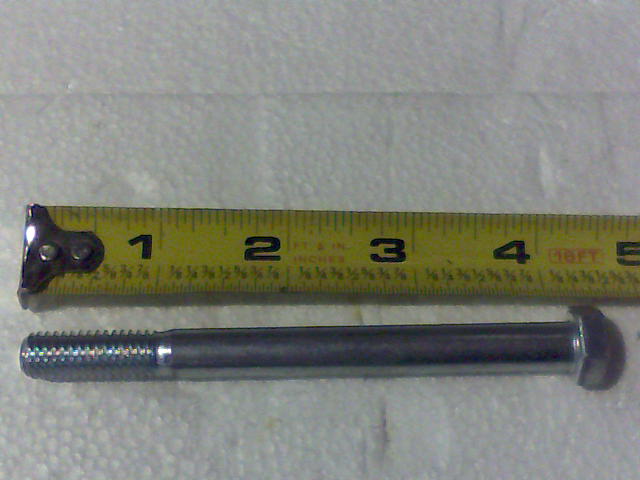

25 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
26 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
27 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.

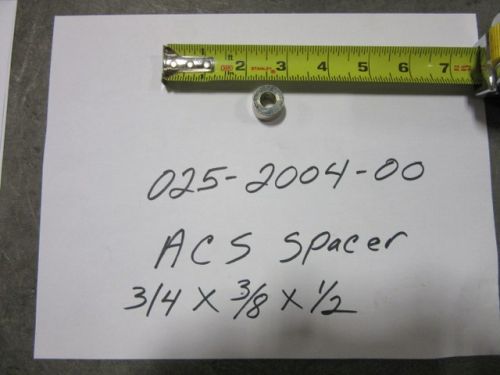

28 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
29 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
32 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
36 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
37 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
38 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
39 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
40 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
48 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
54 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
55 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
