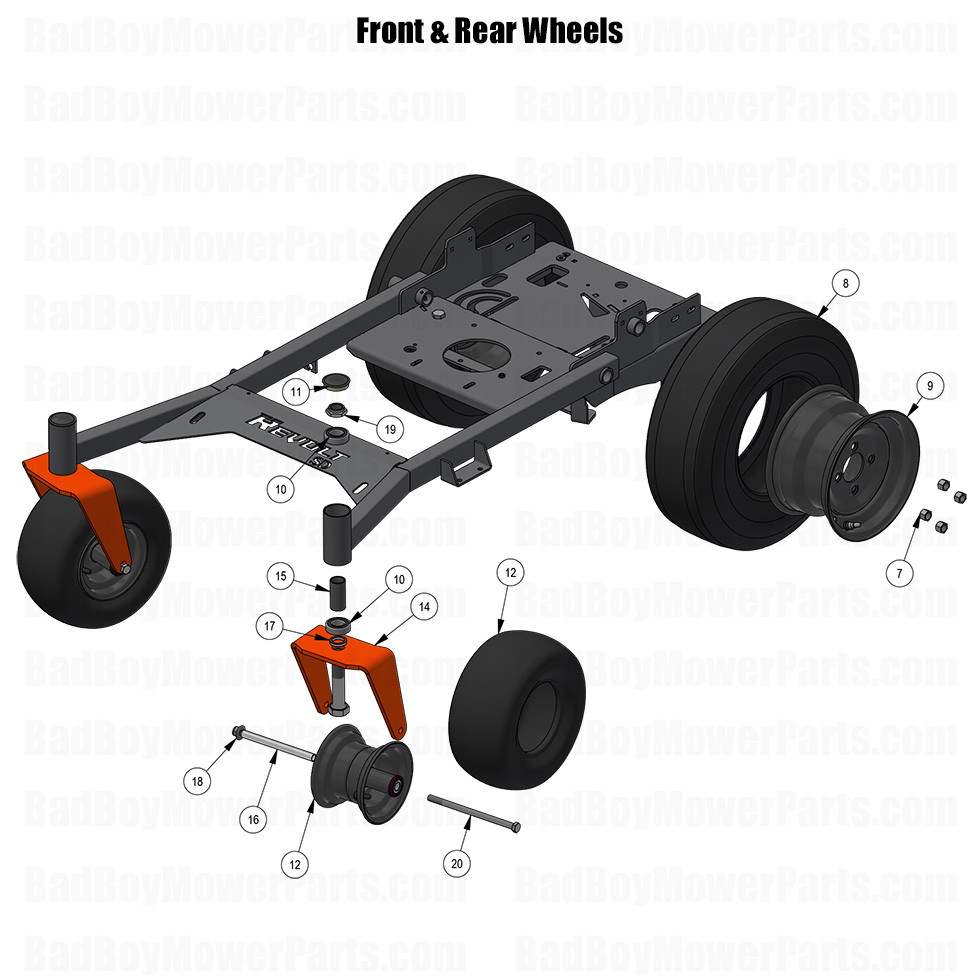

2025 Revolt SD - Front & Rear Wheels

2025 Revolt SD - Front & Rear Wheels

The 2025 Revolt SD Front & Rear Wheels ensure smooth operation, stability, and maneuverability across various terrains. At BadBoyMowerParts.com, we provide durable Bad Boy Mower Parts to maintain your mower’s wheels in peak condition. Our Bad Boy Lawn Mower Parts inventory includes rugged tires, wheel hubs, bearings, and axle components for long-term performance. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct wheel parts for seamless installation. Properly maintained wheels improve traction, reduce vibration, and ensure even weight distribution for precise cutting. We stock Bad Boy Parts Online for fast replacements and quick shipping. Plus, with Free Shipping On Orders Over $100, keeping your 2025 Revolt SD Front & Rear Wheels in excellent condition is now more cost-effective. Order today for reliable performance and superior maneuverability in any mowing conditions.

Bad Boy Mower Parts Lookup

2025 Revolt SD - Front & Rear Wheels
  Position Number SKU Product Title Price
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
8 022-4042-00 022-4042-00 - 21x7-10 Reaper Turf Tire Only
$122.99
9 022-4043-00 022-4043-00 - 10 x 7 Black Wheel
$105.99
10 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
11 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
12 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
14 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
15 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
16 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
17 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
20 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
