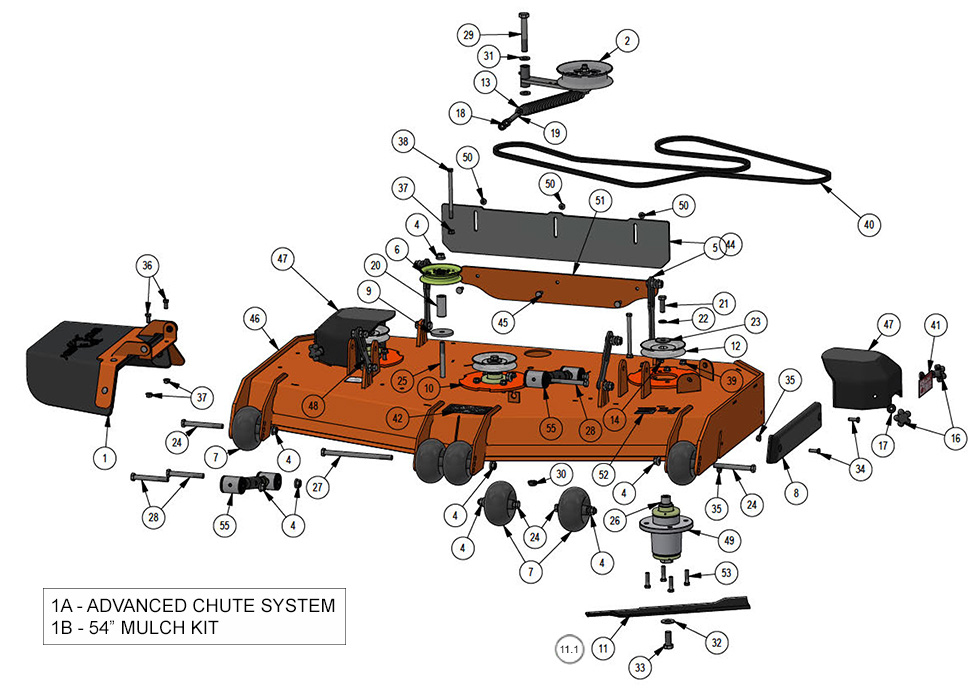

2025 Revolt X - 54" Deck Assembly

2025 Revolt X - 54" Deck Assembly

The 2025 Revolt X 54" Deck Assembly delivers precise and powerful cutting performance, making routine maintenance essential. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts, including deck spindles, blades, pulleys, and belt kits to keep your deck operating efficiently. Our Bad Boy Lawn Mower Parts selection ensures seamless repairs and replacements. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct deck components. A properly maintained deck assembly ensures smooth, even cutting, reduces wear, and extends the lifespan of other mower components. We stock Bad Boy Parts Online for easy ordering and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt X 54" Deck Assembly is now more cost-effective. Order today to ensure high-performance mowing with every use.

Bad Boy Mower Parts Lookup

2025 Revolt X - 54" Deck Assembly
  Position Number SKU Product Title Price
1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
5 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
6 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
7 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
8 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
9 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
10 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
11.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
11 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
12 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
13 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
14 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
17 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
18 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
20 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
21 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
25 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
26 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
27 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
28 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
29 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
30 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
32 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
33 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
34 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
35 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
36 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
38 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
39 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
40 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
41 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
42 091-4019-00 091-4019-00 - 2019-2022 Revolt Deck Belt Route Decal
$6.04
44 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
45 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
46 060-2327-00 060-2327-00 - 2023 54" Revolt Deck--Painted
$1399.99
47 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
48 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
49 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
50 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
51 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
52 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
53 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 048-8000-00 048-8000-00 Turnbuckle Assembly
$80.24
