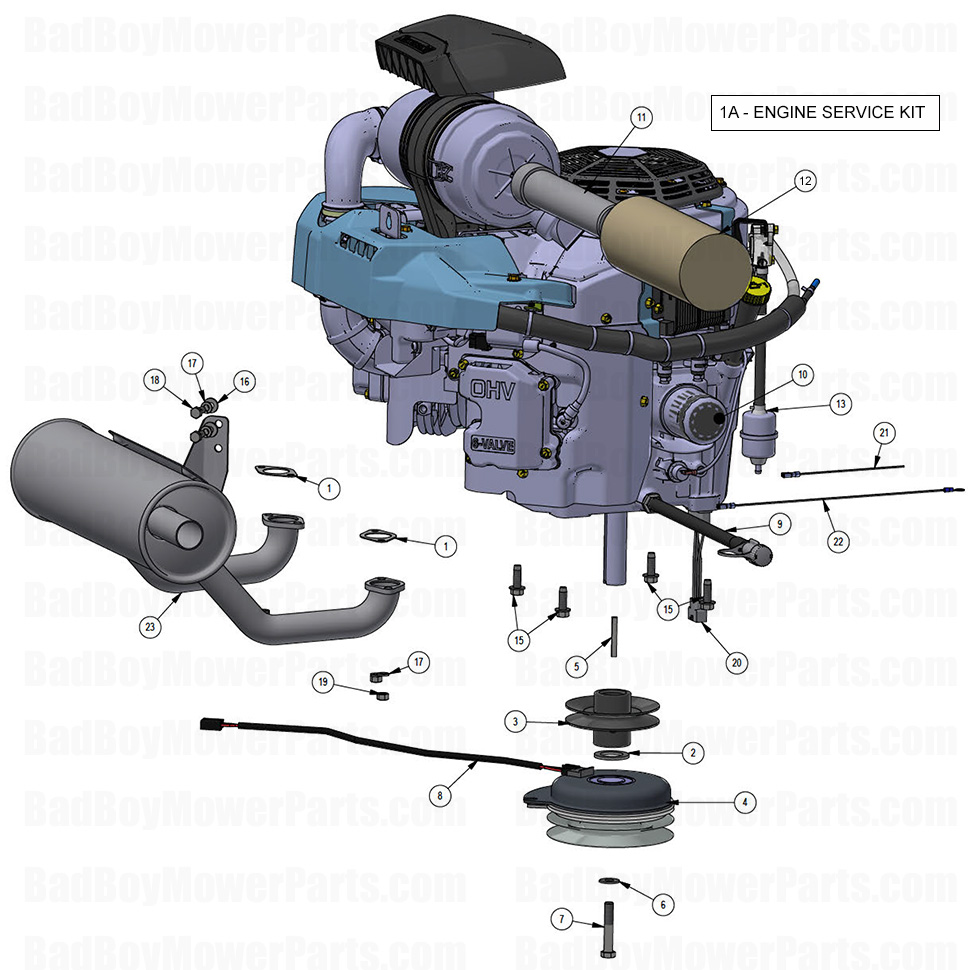

2025 Revolt X - Engine - Kawasaki FX1000 EFI

2025 Revolt X - Engine - Kawasaki FX1000 EFI

The 2025 Revolt X Engine - Kawasaki FX1000 EFI is a high-performance engine that requires regular upkeep for optimal functionality. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including fuel pumps, air filters, spark plugs, and cooling system components to maintain engine efficiency. Our Bad Boy Lawn Mower Parts selection provides direct-fit replacements designed for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly find and order the necessary engine parts for fast installation. Keeping up with regular engine maintenance prevents overheating, improves fuel efficiency, and ensures a longer engine lifespan. We offer Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt X Engine - Kawasaki FX1000 EFI is now more affordable. Order today to keep your engine in peak condition.

Bad Boy Mower Parts Lookup

2025 Revolt X - Engine - Kawasaki FX1000 EFI
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99

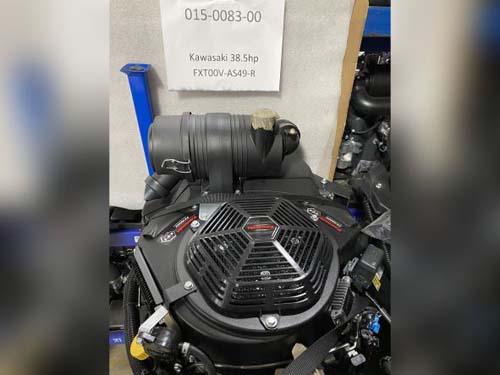

1 015-0083-00 015-0083-00 - Kawasaki FX1000EFI 38.5HP
$3099.99
2 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
7 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
8 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
9 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
10 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
11 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
12 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
13 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
19 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20 086-9016-00 086-9016-00 - Harness Adapter For Kawasaki EFI
$109.99
21 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
22 216-1001-00 216-1001-00 - 16 Gauge Revolt 12.5" Long Ground Wire A No Longer Available
Obsolete.
