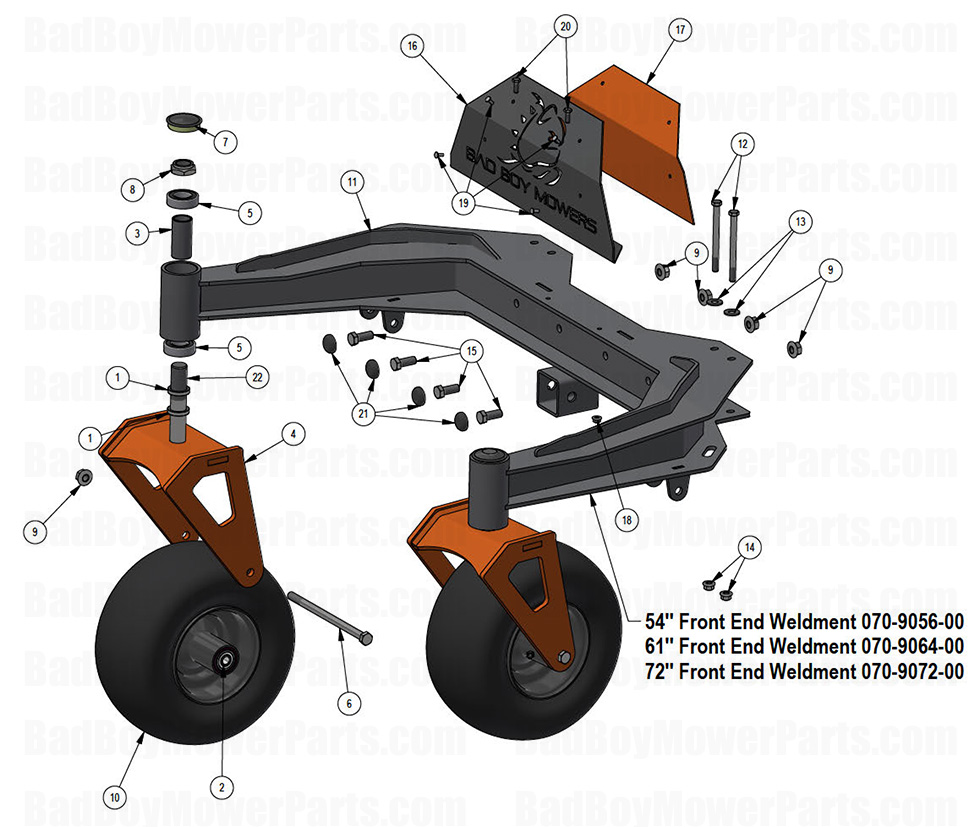

2025 Revolt X - Front End

2025 Revolt X - Front End

The 2025 Revolt X Front End is crucial for smooth handling, stability, and precise control of your mower. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including axles, caster wheels, pivot brackets, and bearings to ensure optimal maneuverability. Our Bad Boy Lawn Mower Parts selection offers factory-grade replacements for reliable and long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary front-end components for easy repairs. Properly maintaining the front end ensures smoother turns, reduces vibrations, and enhances overall mower efficiency. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Revolt X Front End is now more cost-effective. Order today to ensure superior handling and control while mowing.

Bad Boy Mower Parts Lookup

2025 Revolt X - Front End
  Position Number SKU Product Title Price
1 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
4 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
5 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
6 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 022-3088-00 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue)
$145.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
17 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
18 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
19 013-0026-00 013-0026-00 - 3/16" Diameter, for 0.1260"-0.25" Material
$3.29
20 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
22 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
