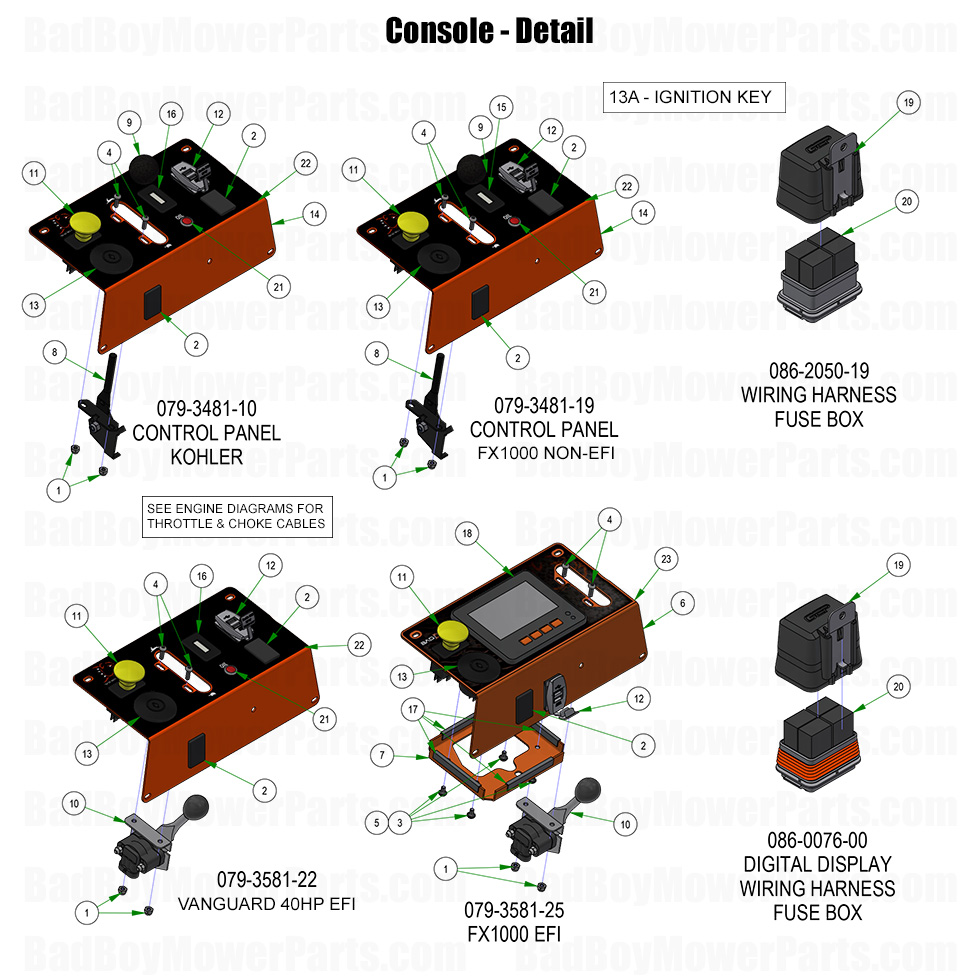

2025 Rogue - Console - Detail

2025 Rogue - Console - Detail

The 2025 Rogue Console - Detail system provides a central control hub for smooth operation and efficient mowing. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including control panels, switches, throttle levers, and wiring components to keep your mower’s console in top condition. Our Bad Boy Lawn Mower Parts selection ensures that you find factory-grade replacements for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary console components for easy installation. A properly maintained console ensures precise control, reduces operator fatigue, and enhances overall mowing efficiency. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Rogue Console - Detail system is now more affordable. Order today for enhanced operator control and efficiency.

Bad Boy Mower Parts Lookup

2025 Rogue - Console - Detail
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
2 018-1040-00 018-1040-00 - Light Plug
$2.99
3 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
4 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
8 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
9 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 077-2076-00 077-2076-00 - USB Port
$46.84
13A 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
15 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
16 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
18 086-0018-00 086-0018-00 - Display Screen
$599.99
19A 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
19 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
20 086-1202-19 086-1202-19 - Relay Terminal
$24.97
21 089-1000-00 089-1000-00 - Oil Light
$12.63
22A 079-3481-10 079-3481-10 - Rogue/Rebel EFI Control Panel Assy
$109.00
22B 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
22C 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
22 091-4009-22 091-4009-22 2022-2024 Rebel/Rogue Control Panel Decal
$10.99
