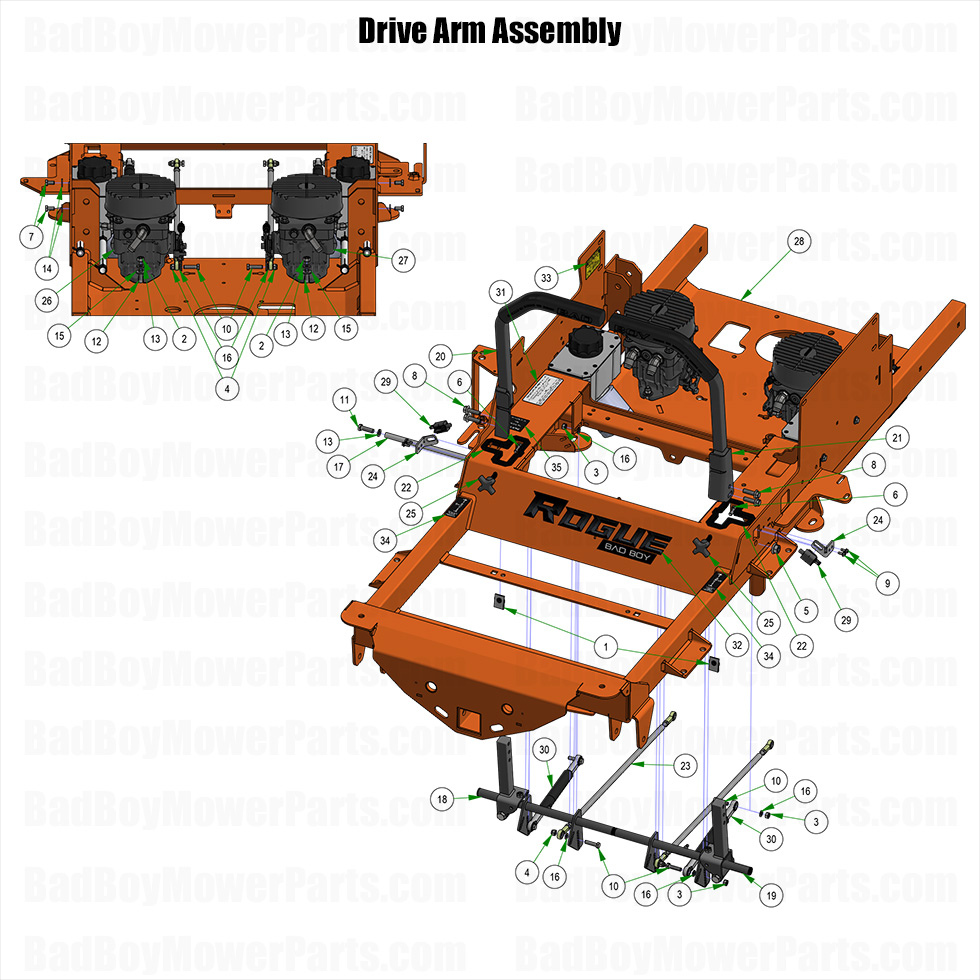

2025 Rogue - Drive Arm Assembly

2025 Rogue - Drive Arm Assembly

The 2025 Rogue Drive Arm Assembly is a critical component for steering and control, requiring regular maintenance for optimal performance. At BadBoyMowerParts.com, we offer durable Bad Boy Mower Parts, including drive arm assemblies, hydraulic fittings, pivot bolts, and bushings for long-term reliability. Our Bad Boy Lawn Mower Parts inventory ensures that you find factory-grade replacements for seamless repairs. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct drive arm components for hassle-free installation. A well-maintained drive arm assembly improves handling, enhances maneuverability, and prevents premature wear on hydraulic systems. We stock Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Rogue Drive Arm Assembly is now more budget-friendly. Order today for superior control and precision mowing.

Bad Boy Mower Parts Lookup

2025 Rogue - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
4 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 018-0068-00 018-0068-00 - 5/16-18 x 5/8 Hex Bolt
$3.29
8 018-0078-00 018-0078-00 - 3/8"-16 Thread Size, 1" 1/4 Long
$2.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
12 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
15 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
18 031-0030-24 031-0030-24 - 2024 R Series RH Arm Rod Assembly
$96.29
19 031-0031-24 031-0031-24 - 2024 R Series LH Arm Rod Assembly
$96.29
20 031-9070-00 031-9070-00 - R-Series Square Drive Arm RH Assembly
$129.99
21 031-9071-00 031-9071-00 - R-Series Square Drive Arm LH Assembly
$129.99
22 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
23 035-0004-00 035-0004-00 - 2019-2022 Rogue Push Rod Assembly
$42.58
25 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
26 067-8053-21 067-8053-21 - LH Drive Pump & Hydraulic Tank Assembly
$699.99
27 067-8054-21 067-8054-21 - RH Drive Pump & Hydraulic Tank Assembly
$699.99
28 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
29 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
30 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
32 091-0516-00 091-0516-00 - MY24 Rogue Back Plate & Front Decal
$10.99
33 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
34 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
35 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
