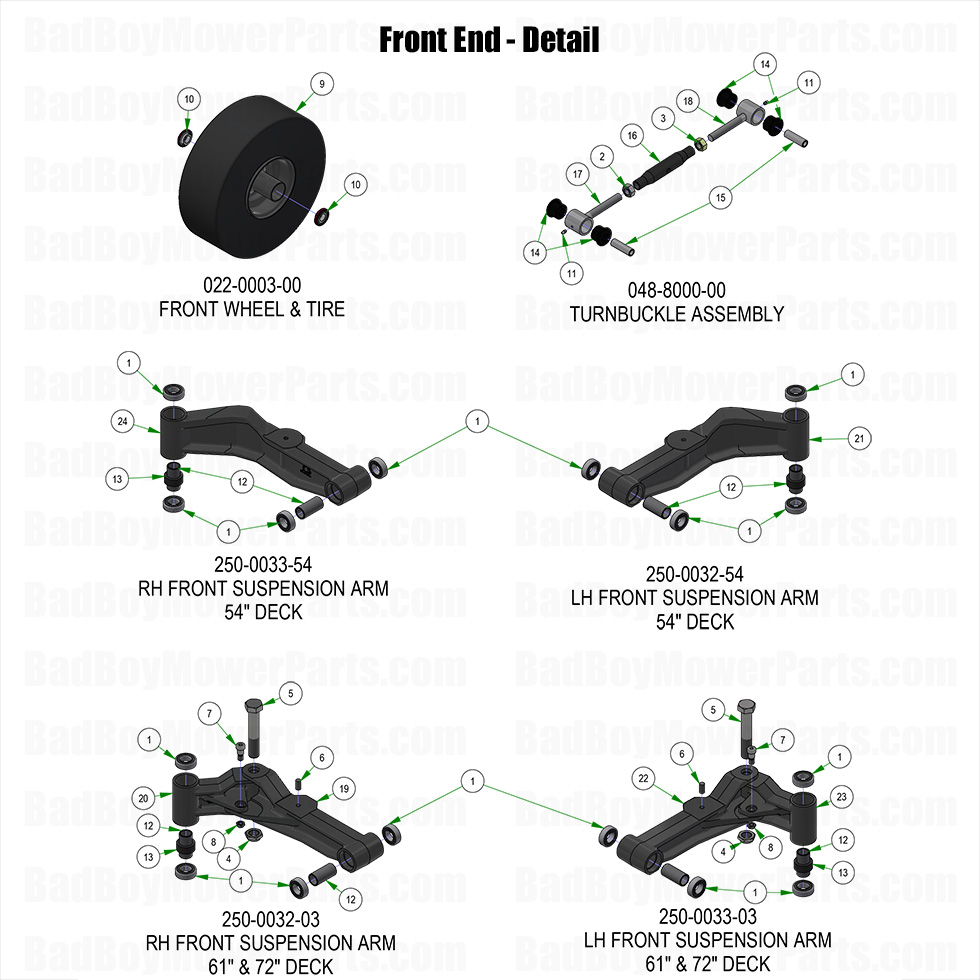

2025 Rogue - Front End - Detail

2025 Rogue - Front End - Detail

The 2025 Rogue Front End - Detail system is essential for stability and smooth operation. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including front-end assemblies, caster wheels, pivot arms, and mounting brackets for superior performance. Our Bad Boy Lawn Mower Parts inventory ensures that you find the correct replacements for quick and easy repairs. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary front-end components for seamless installation. A well-maintained front-end system improves handling, enhances traction, and prevents uneven wear. We stock Bad Boy Parts Online for fast ordering and quick shipping. Plus, with Free Shipping On Orders Over $100, keeping your 2025 Rogue Front End - Detail system in top condition is now more cost-effective. Order today to ensure superior control and stability while mowing.

Bad Boy Mower Parts Lookup

2025 Rogue - Front End - Detail
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.
3 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
5 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
6 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
9.1 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
9 022-0004-00 022-0004-00 - 15x6-6 Tire Only
$85.59
10 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
11 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
12 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
13 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
14 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
15 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
16.1 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
16 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24
17 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
18 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
19 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
20.1 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
20 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
22 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
23.1 250-0033-03 250-0033-03 - 2022 61/72 Rogue/Renegade Front Suspensi
$279.99
23 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
