2025 Rogue - Rear Swing Arms

2025 Rogue - Rear Swing Arms

The 2025 Rogue Rear Swing Arms play a crucial role in maintaining mower stability and maneuverability. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including swing arms, pivot brackets, bushings, and securing hardware for long-lasting performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements to keep your mower operating at its best. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct swing arm components for easy installation. A properly maintained rear swing arm system enhances control, reduces wear on suspension components, and improves overall mower handling. We stock Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Rogue Rear Swing Arms is now more affordable. Order today for superior stability and precision mowing.

Bad Boy Mower Parts Lookup

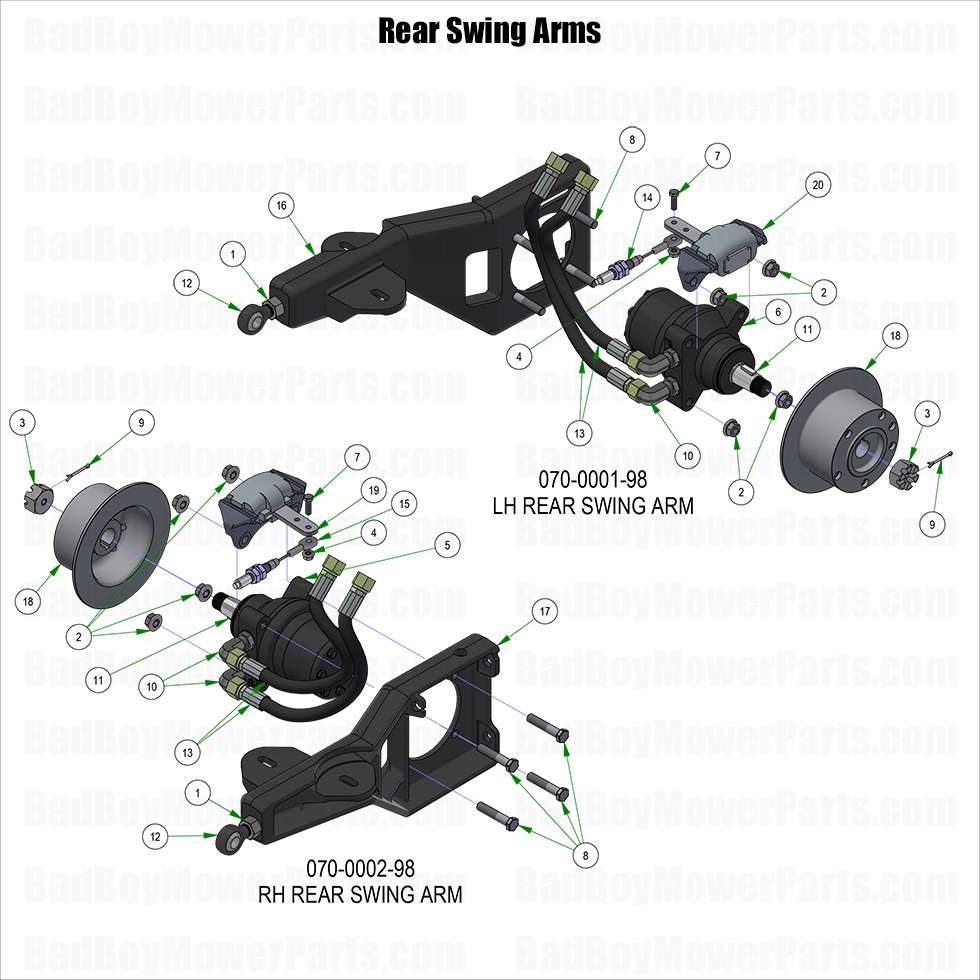

2025 Rogue - Rear Swing Arms
  Position Number SKU Product Title Price

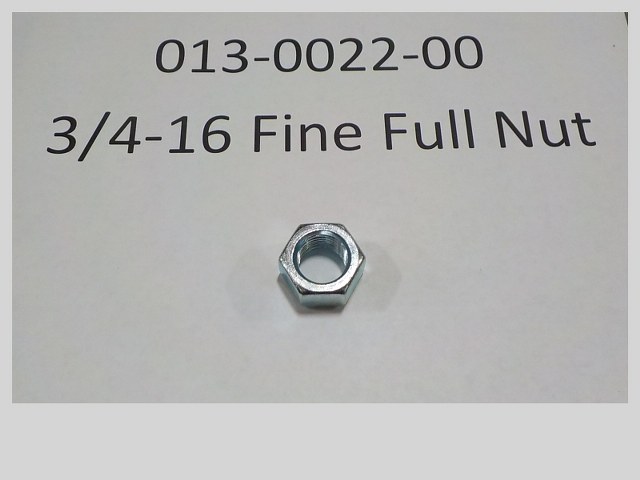

1 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
2 013-6040-00 013-6040-00 - 1/2-13 Centerlock Flange Nut
$2.99

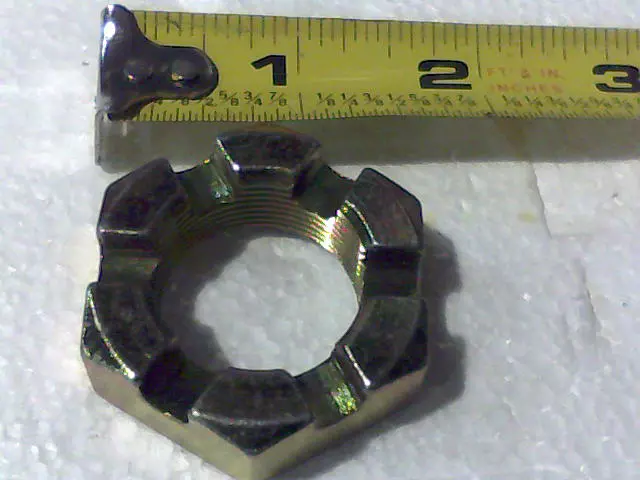

3 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

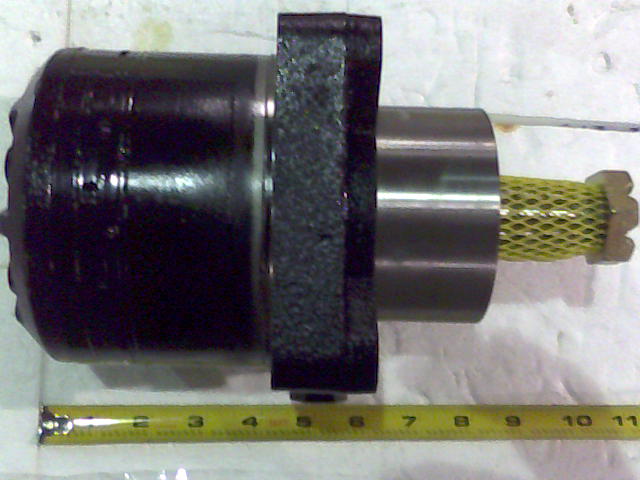

5 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99

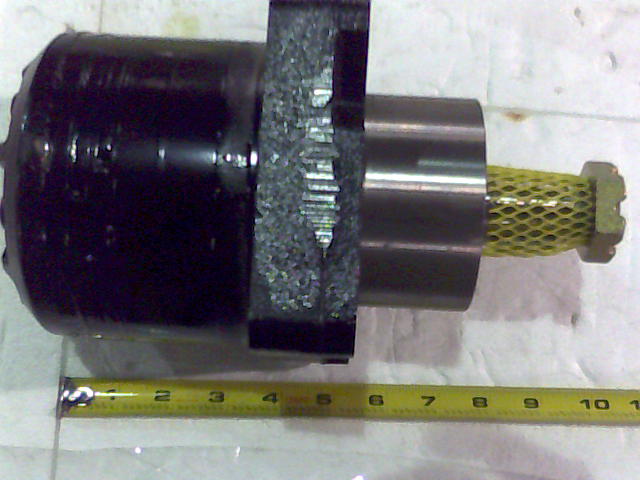

6 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99

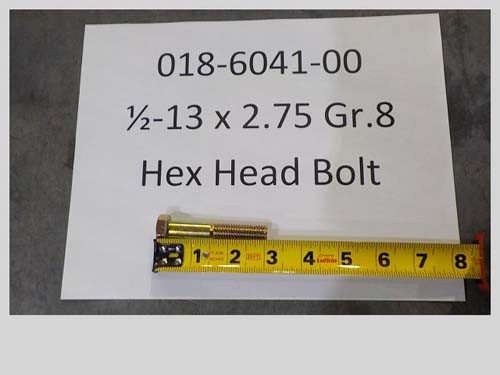

8 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99

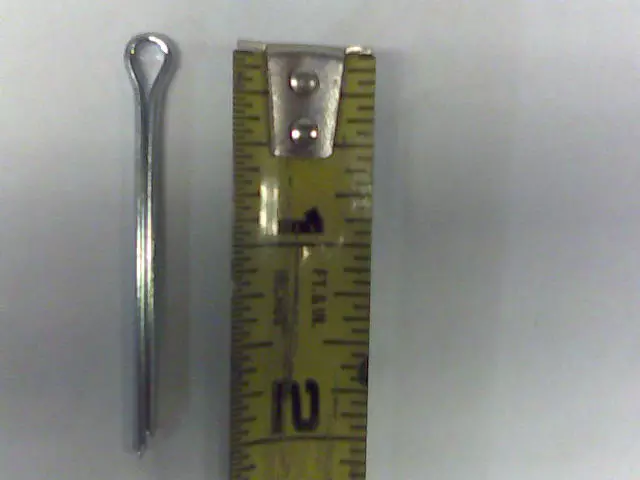

9 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99

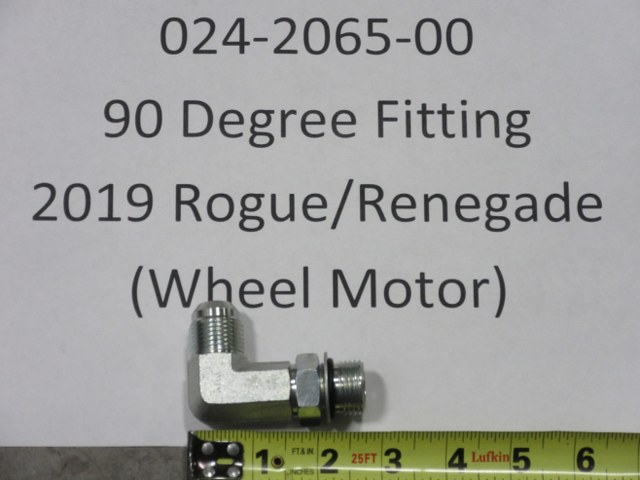

10 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67

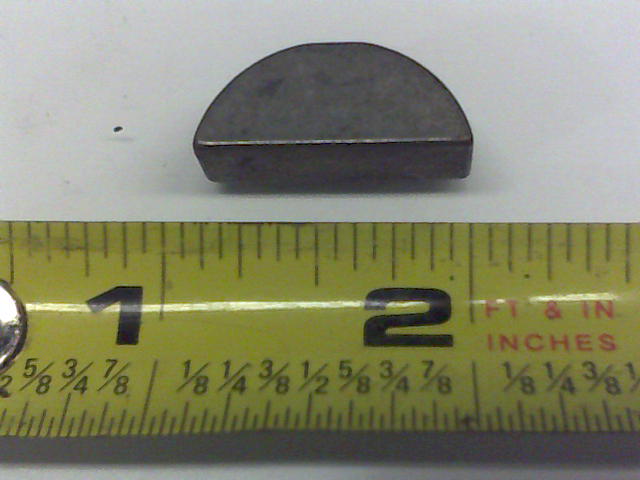

11 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19

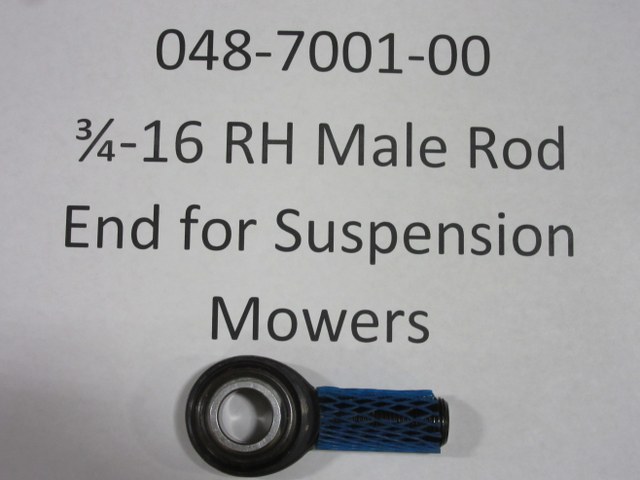

12 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39

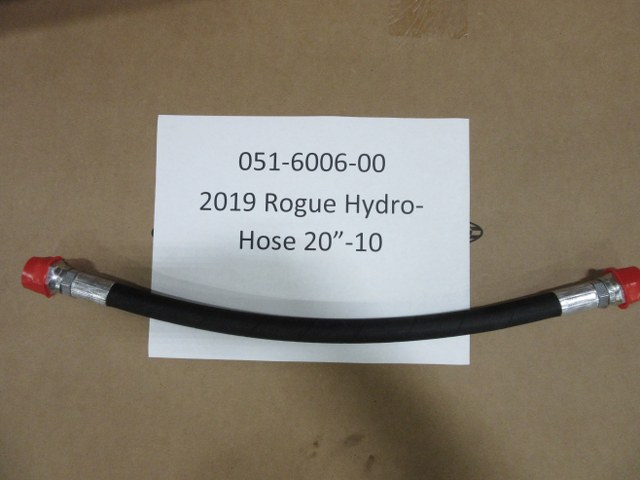

13 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
14 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
15 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47

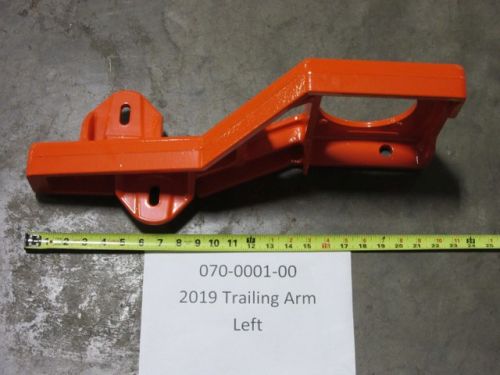

16 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91

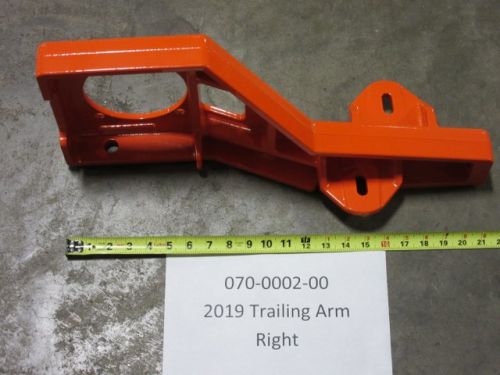

17 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99

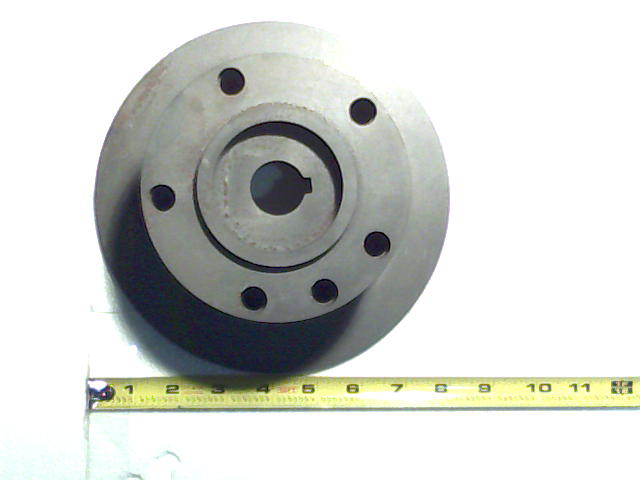

18 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36

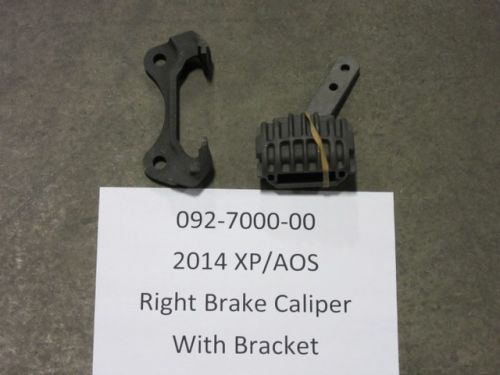

19 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32

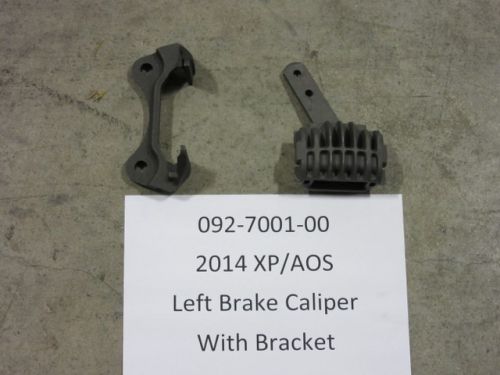

20 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
