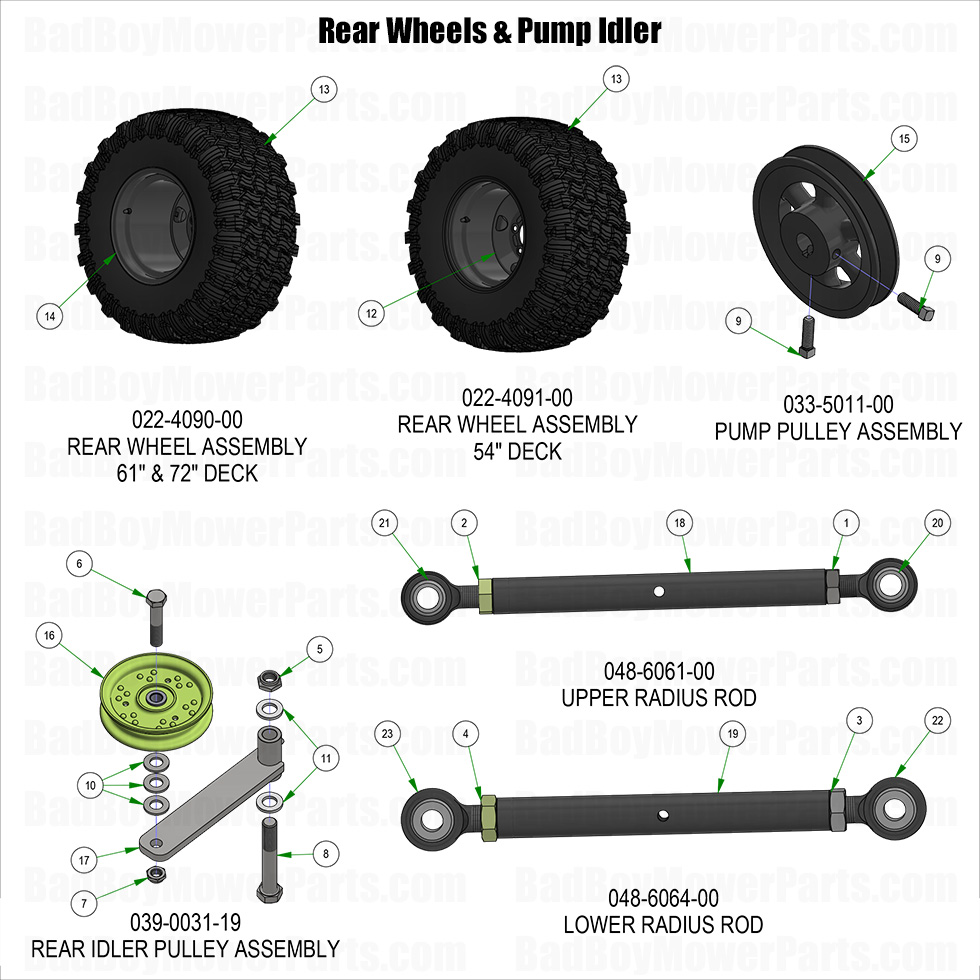

2025 Rogue - Rear Wheels & Pump Idler

2025 Rogue - Rear Wheels & Pump Idler

The 2025 Rogue Rear Wheels & Pump Idler are essential for traction, stability, and smooth belt operation. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including durable rear wheels, wheel hubs, hydraulic pump idlers, and bearings to ensure reliable performance. Our Bad Boy Lawn Mower Parts inventory ensures that you find factory-grade replacements for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear wheel and pump idler components for seamless installation. A well-maintained system improves traction, enhances power transfer, and prevents belt slippage. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Rogue Rear Wheels & Pump Idler is now more cost-effective. Order today for smooth operation and long-lasting performance.

Bad Boy Mower Parts Lookup

2025 Rogue - Rear Wheels & Pump Idler
  Position Number SKU Product Title Price
1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
4 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
5 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
6 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
7 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
8 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
9 018-8072-00 018-8072-00 - 5/16-18 X 1 Set Screw (Square-Head w/Cup-Point)
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12.1 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
12 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
13 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
14.1 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
14 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
15 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
16.1 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06
18.1 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
18 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
19.1 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
19 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
20 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
21 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
22 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
23 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
