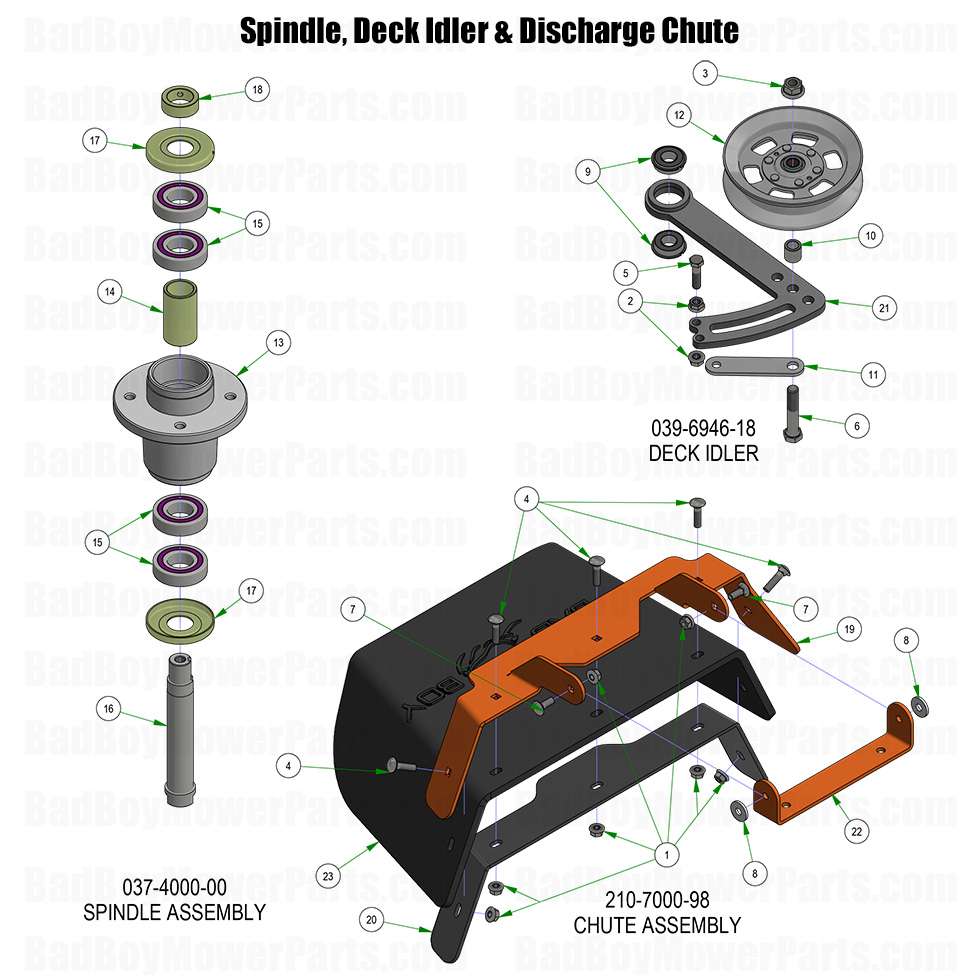

2025 Rogue - Spindle, Idler & Discharge Chute

2025 Rogue - Spindle, Idler & Discharge Chute

The 2025 Rogue Spindle, Idler & Discharge Chute system is critical for smooth blade operation and efficient grass discharge. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including deck spindles, idler pulleys, discharge chutes, and mounting hardware to keep your mower in peak condition. Our Bad Boy Lawn Mower Parts inventory ensures that you find factory-grade replacements for seamless repairs. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary components for easy installation. A properly maintained spindle and idler system reduces belt wear, ensures even cutting, and improves overall mower efficiency. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 Rogue Spindle, Idler & Discharge Chute system is now more affordable. Order today for superior cutting and discharge performance.

Bad Boy Mower Parts Lookup

2025 Rogue - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
5 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
6 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
7 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
9 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
10 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
11 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
12 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
13.1 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
14 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
15 037-6029-00 037-6029-00 - Spindle Bearing (See Models Used On For Details)
$42.58
16 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
17 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
18 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
19 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
20 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
21.1 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08

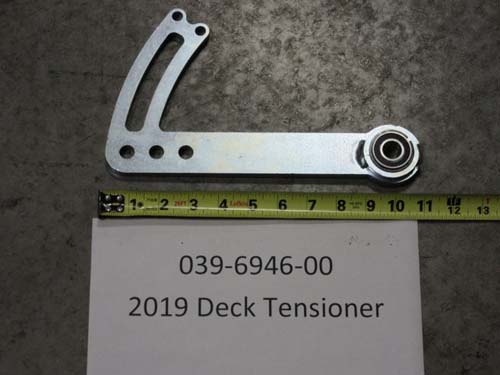

21 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
22 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
23.1 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
23 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
