2025 ZT Avenger - 54" Deck Assembly

2025 ZT Avenger - 54" Deck Assembly

The 2025 ZT Avenger 54" Deck Assembly is built for precision cutting and durability. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including deck spindles, cutting blades, idler pulleys, and belt kits to keep your mower’s cutting deck operating efficiently. Our Bad Boy Lawn Mower Parts inventory ensures that your mower delivers professional-grade results with every use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for fast replacements. Proper maintenance of your deck assembly improves cutting efficiency, reduces vibration, and extends the lifespan of your mower. We offer Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Avenger 54" Deck Assembly is now more affordable. Order today to ensure a high-quality mowing experience.

Bad Boy Mower Parts Lookup

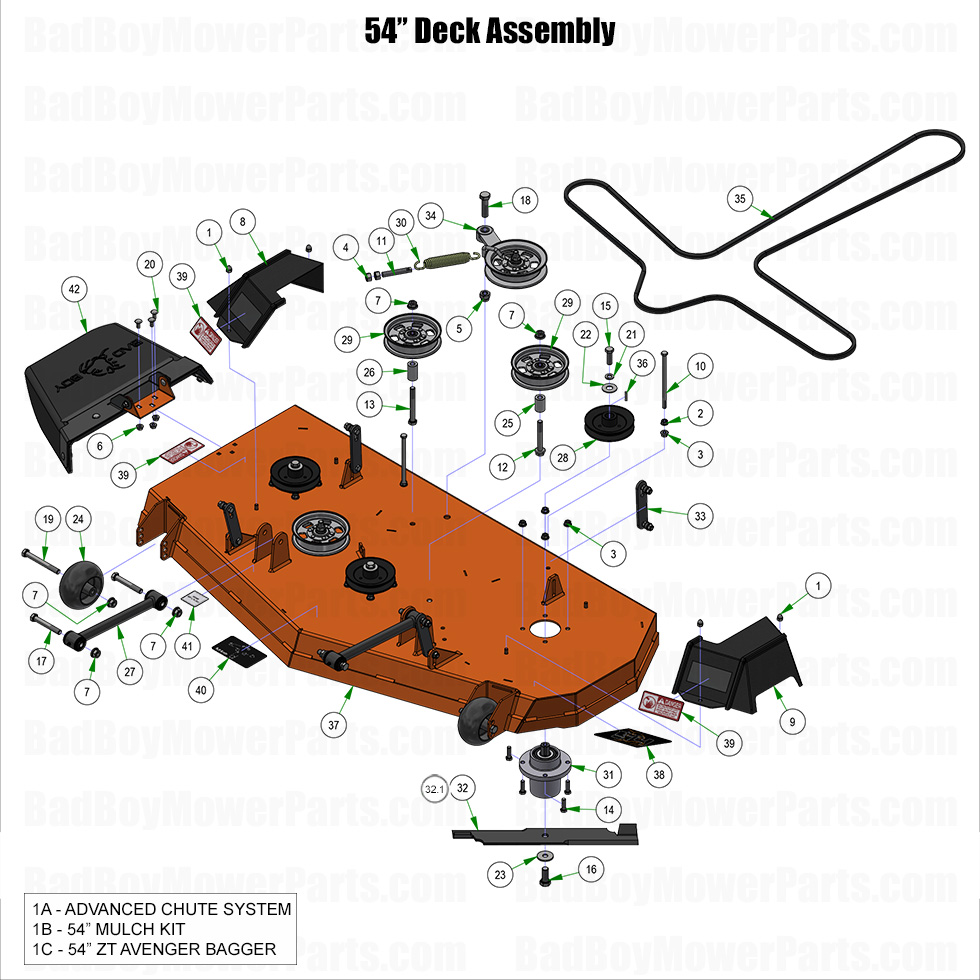

2025 ZT Avenger - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0154-50 210-0154-50 - 2017-2025 54" MZ & 54" Avenger Mulch Kit w/Blades
$318.45
1C 088-1818-00 088-1818-00 - 54" MZ Magnum & 54" Avenger Bagger (See Models Used On For Details)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
9 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
10 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
25 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
28 033-4890-00 033-4890-00 - Deck Pulley 2013-2025 54" MZ Magnum, 2020-2025 54" ZT Avenger
$31.17
29 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
30 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
31 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
32.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
32 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
33 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
35 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
36 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
39 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
40 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
41 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
42 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
