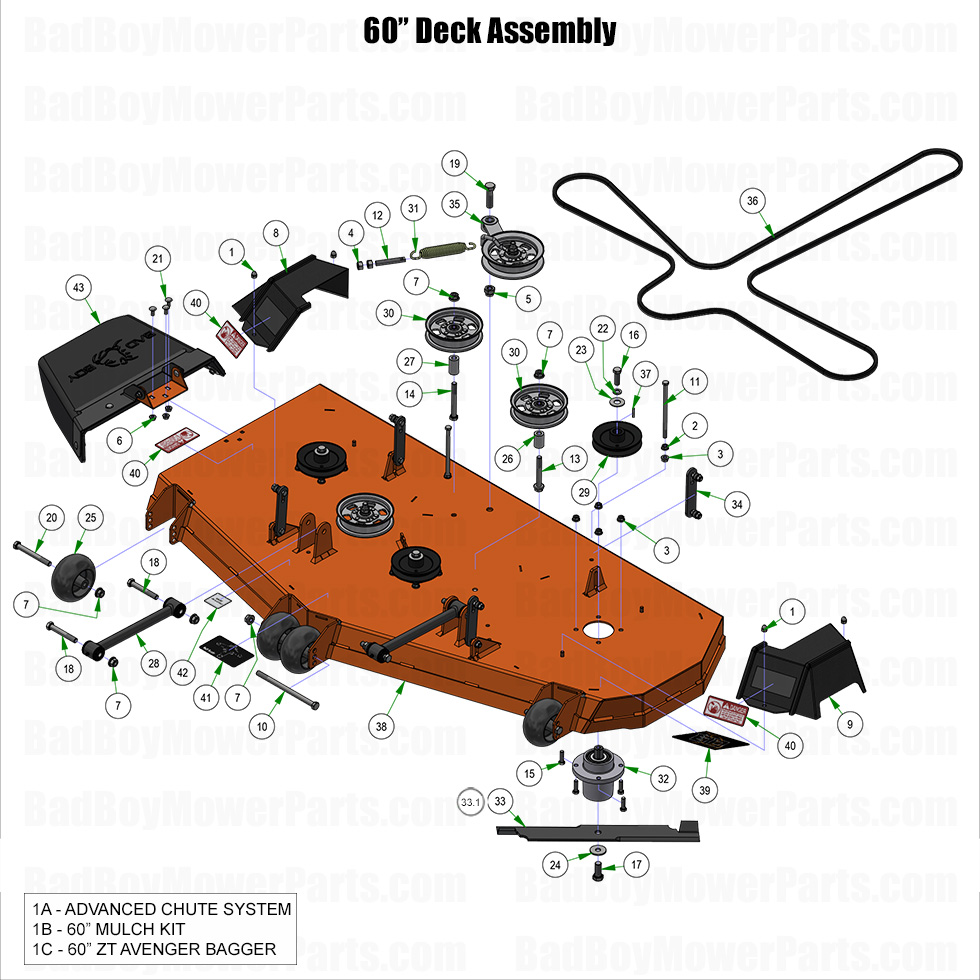

2025 ZT Avenger - 60" Deck Assembly

2025 ZT Avenger - 60" Deck Assembly

The 2025 ZT Avenger 60" Deck Assembly provides a wider cutting area for maximum efficiency and faster mowing times. At BadBoyMowerParts.com, we stock durable Bad Boy Mower Parts, including deck spindles, reinforced blades, idler pulleys, and tensioner belts to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures that you find the right components for efficient mowing and long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary deck components for seamless installation. A properly maintained deck assembly improves cutting precision, reduces downtime, and extends blade longevity. We offer Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, keeping your 2025 ZT Avenger 60" Deck Assembly in excellent shape is now more budget-friendly. Order today for high-performance mowing results.

Bad Boy Mower Parts Lookup

2025 ZT Avenger - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0160-50 210-0160-50 60" Mulch Kit w/blades (See Models Used On For Details)
$318.45
1C 088-1938-00 088-1938-00 - 60" Avenger 2-Bagger
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
9 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
10 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
11 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
20 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
21 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
29 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
30 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
31 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
32 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
33.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
33 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
34 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
36 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
37 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
39 091-0534-00 091-0534-00 - 60" Grip Deck Decal
$10.99
40 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
41 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
42 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
43 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
