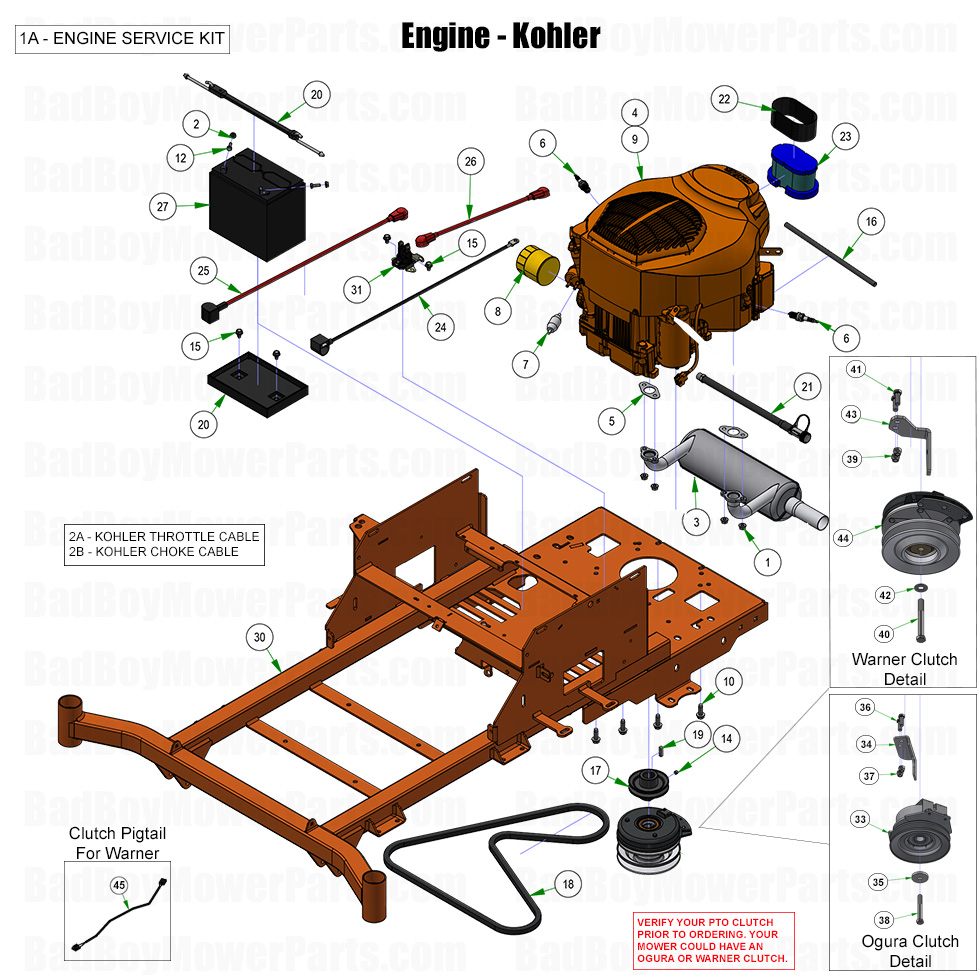

2025 ZT Avenger - Engine - Kohler

2025 ZT Avenger - Engine - Kohler

The 2025 ZT Avenger Engine - Kohler is designed for power and reliability, making maintenance essential for long-term performance. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including air filters, spark plugs, ignition coils, and cooling system components to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct engine components for fast repairs. Proper engine maintenance prevents overheating, improves fuel efficiency, and extends mower life. We offer Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, keeping your 2025 ZT Avenger Engine - Kohler in top shape is now more cost-effective. Order today for reliable engine performance and smooth mowing operations.

Bad Boy Mower Parts Lookup

2025 ZT Avenger - Engine - Kohler
  Position Number SKU Product Title Price
1A 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
4 015-2017-00 015-2017-00 - KT745 Kohler Engine
$2499.99
5 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
6 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
7 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
8 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
15 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
16 032-6000-00 032-6000-00 - Cut 12" Heat Sleeve
$2.99
17 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
19 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
20 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
21 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
22 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
23 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
31 108-0001-00 108-0001-00 - Solenoid
$29.41
33 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
34 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
35 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
40 018-5052-21 018-5052-21 - 7/16-20x3.5 Hex Bolt GR 8 W/ Patch No Longer Available
Obsolete.
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
44 070-0058-00 070-0058-00 - 120 Ft Lb. Clutch- 1 Shaft
$154.99
45 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
