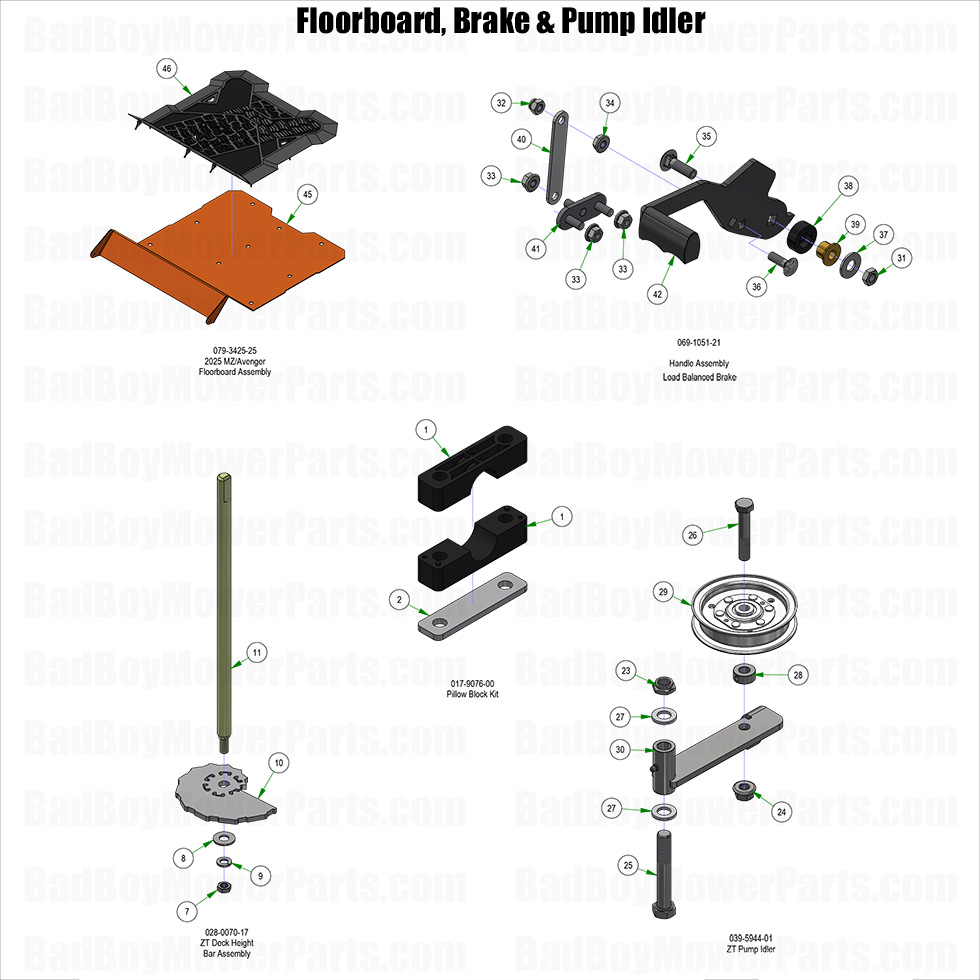

2025 ZT Avenger - Floorboard, Brake & Pump Idler

2025 ZT Avenger - Floorboard, Brake & Pump Idler

The 2025 ZT Avenger Floorboard, Brake & Pump Idler system plays a critical role in mower stability and functionality. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including brake levers, floor panels, idler pulleys, and mounting hardware for durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements to maintain long-term usability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct floorboard, brake, and pump idler components for fast installation. Properly maintaining these parts enhances mower safety, ensures smooth operation, and improves user comfort. We stock Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Avenger Floorboard, Brake & Pump Idler is now more affordable. Order today for enhanced mower performance and stability.

Bad Boy Mower Parts Lookup

2025 ZT Avenger - Floorboard, Brake & Pump Idler
  Position Number SKU Product Title Price
1.1 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10.1 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
10 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
11 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
23 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
24 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
26 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
27 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
28 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
29 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
30.1 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
30 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
31 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
32 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
35 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
36 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
38 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
39 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
40 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
41 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
42.1 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
42 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
