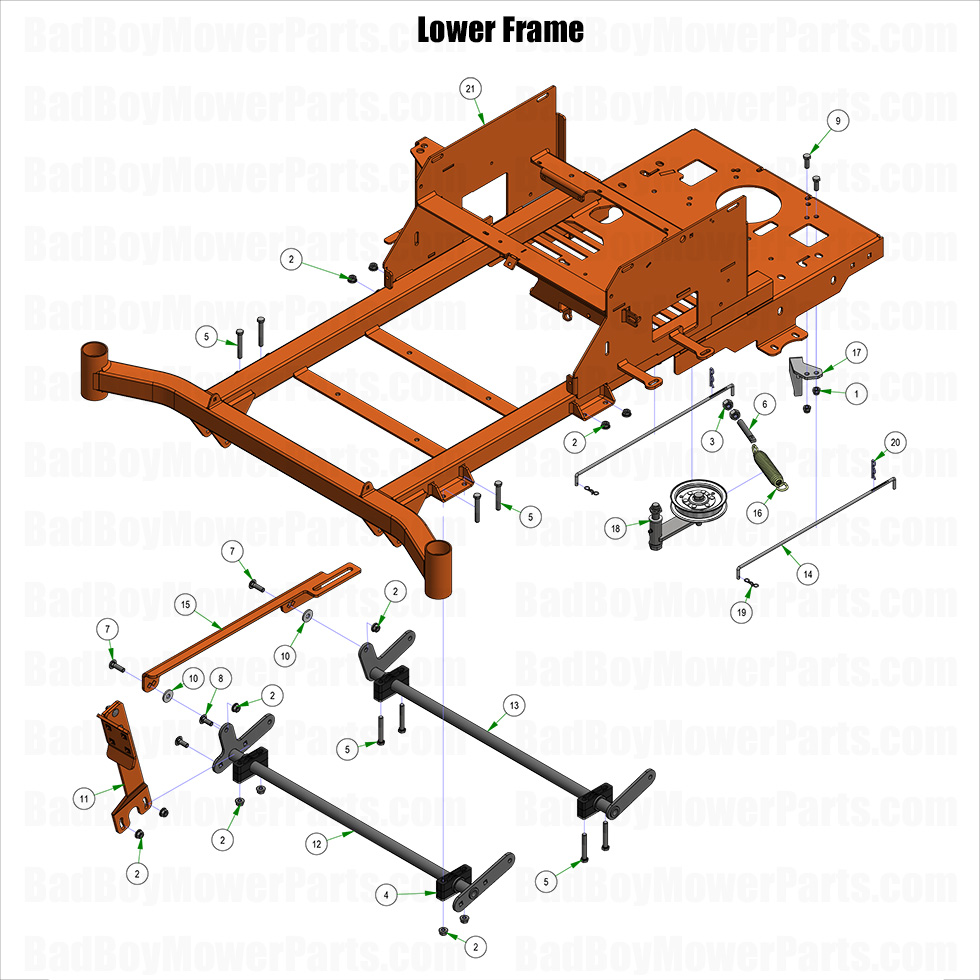

2025 ZT Avenger - Lower Frame

2025 ZT Avenger - Lower Frame

The 2025 ZT Avenger Lower Frame provides the structural integrity necessary for durability and smooth operation. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts, including replacement frame brackets, mounting bolts, and reinforcement plates to keep your mower strong and stable. Our Bad Boy Lawn Mower Parts inventory ensures that you receive factory-grade replacements for seamless installation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct lower frame components for easy repairs. A well-maintained lower frame ensures stability, absorbs vibrations, and enhances the mower’s lifespan. We stock Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Avenger Lower Frame is now more affordable. Order today for enhanced durability and long-term mower performance.

Bad Boy Mower Parts Lookup

2025 ZT Avenger - Lower Frame
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
10 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0070-00 028-0070-00 - Neutral Rod
$12.48
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
18 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
19 044-2004-00 044-2004-00 - Bow Pin
$2.99
20 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
21 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
